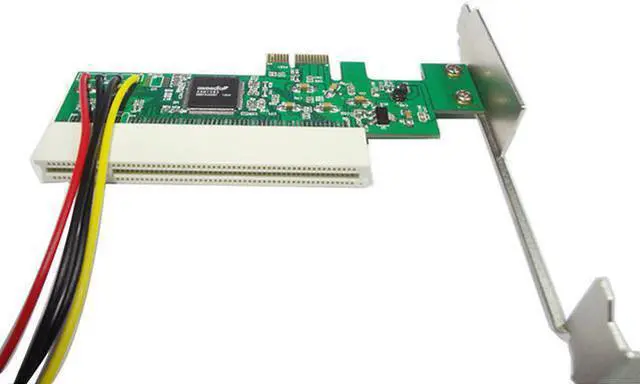

X1/X4/X8/X16 Adapter Card Boards Expansion Express PCI-E To PCI SATA Add On

Certification:NONE
Origin:CN(Origin)
Model Number:AC4605
Type:Add On Cards
Interface Type:PCI Express

X1/X4/X8/X16 Adapter Card Boards Expansion Express PCI-E To PCI SATA Add On
Description:
Support IDE / AHCI programming interface.
Compliant with Serial SATA version 3.0; Compliant with PCI-E 2.0 specification.
Full speed of 6GBPS bandwidth transmission.
Plug and play, supports hot-plugging.
Large chassis / small chassis can be used.
Specifications:
Chipset: Asmedia 1083
Fully compliant with PCI-SIG PCI Express to PCI Bridge
Compliant to PCI-E 1.0 standard
1 x 32bit 33M PCI slot
Compliant to PCI 2.3 standard
Suitable for: PCI-E 1X/4X/8X/16X port
Support 3.3V/1A, 3.3Vaux/100mA, 5V/5A and 12V/500mA
4 Pin ATA Power connector (must be connected)
Support: Windows 2000/NT/2003/XP/Vista/7/8, Linux, OS system.
Package includes:
1 x PCI-E to PCI Adapter Card
Note:
1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow 1-2 cm differences due to manual measurement.
