USB3.0 Internal Header to USB 3.1/3.2 Type C Front Type E Adapter TYPE-E 20pin to 9pin Converter for Motherboard Connector Riser

Origin:CN(Origin)
Type:Cable Adapter
Certification:NONE
Package:Yes
Products Status:STOCK
Direction:Same Side
Model Number:AC5053
Product name:USB 3.0 to USB C Adapter
Connector A:USB3.1 Type E
Connecor B:USB3.1 Type C
Length:9pin to type-e adapter
Interface:9pin to 20pin
Function 1:USB3.0 9pin
Function 2:Type-e 20pin
Function 3:USB Type C
Function 4:usb3.1 type e
Function 5:usb c front panel adapter

USB3.0 Internal Header to USB 3.1/3.2 Type C Front Type E Adapter TYPE-E 20pin to 9pin Converter for Motherboard Connector Riser
About Description:
Feature:
1. Support all motherboard USB3.0 (9pin) ports
2. Inte1 internal 20pin connector can be connected to the TYPE-C USB output terminal of the front I/0 panel
3. USB3.0 internal 9pin connect to USB3.1/3.2 internal TYPE-C 20pin adapter
4. Internal 20pin (Key A) interface support (Gen2-gen1), USB3.0 USB2.0 and USB1.1 devices
5. No need to install drivers
6. Vertical switching, small size, non-interference with multi-layer circuit boards in other positions, integrated differential signal optimization  technology, stable signal, strong anti-interference ability.
Specification:
Item Type: Motherboard USB3.0 TYPE-E Adapter
Interface: 9pin to TYPE-E
Color: Black
Material: ABS+Metal
Transmission Speed: Support USB3.1 Gen2 10Gbps
(Depending on the transmission speed of the host)
.
You'll receive:
1 x 9Pin to TYPE-E Adapter

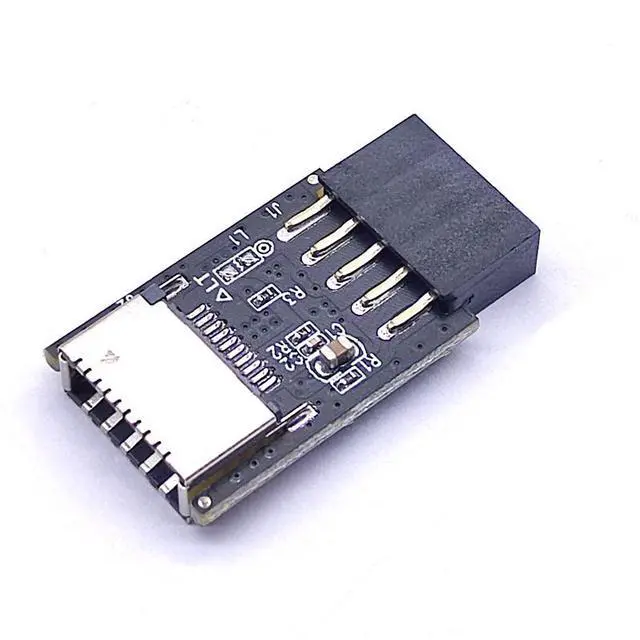

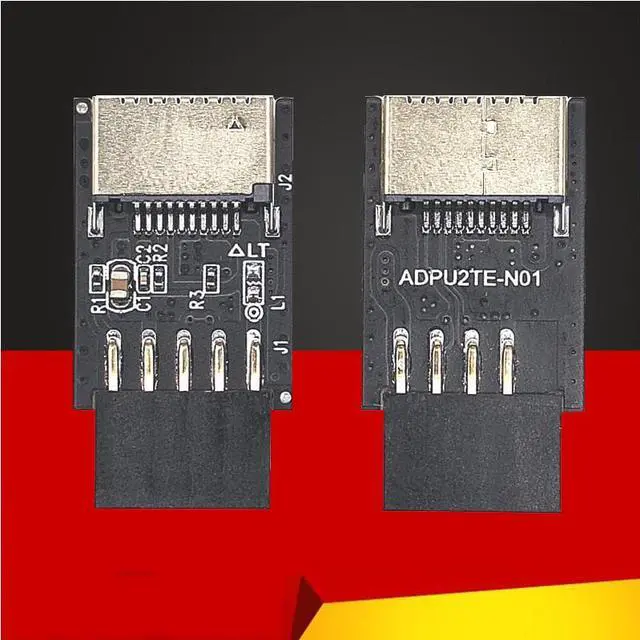

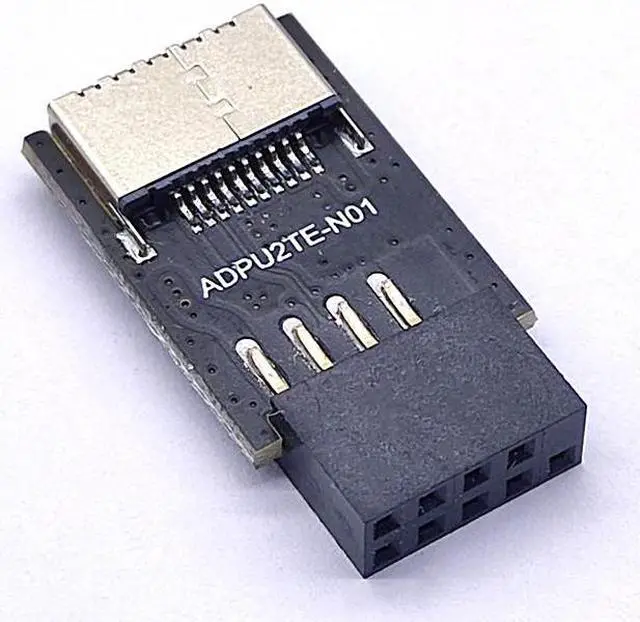

Please check pictures for more details.
