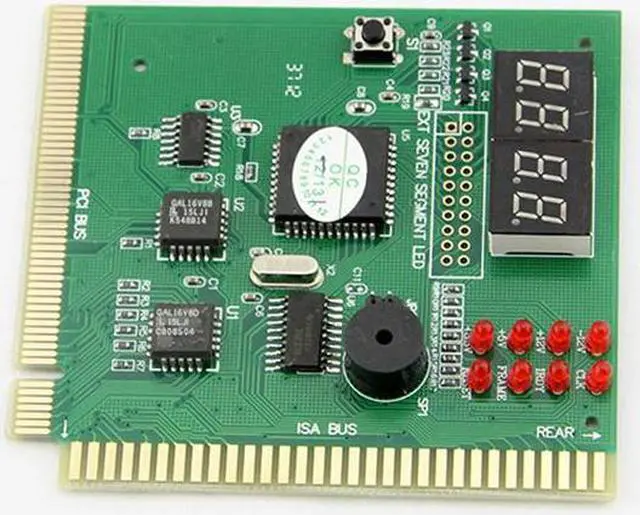

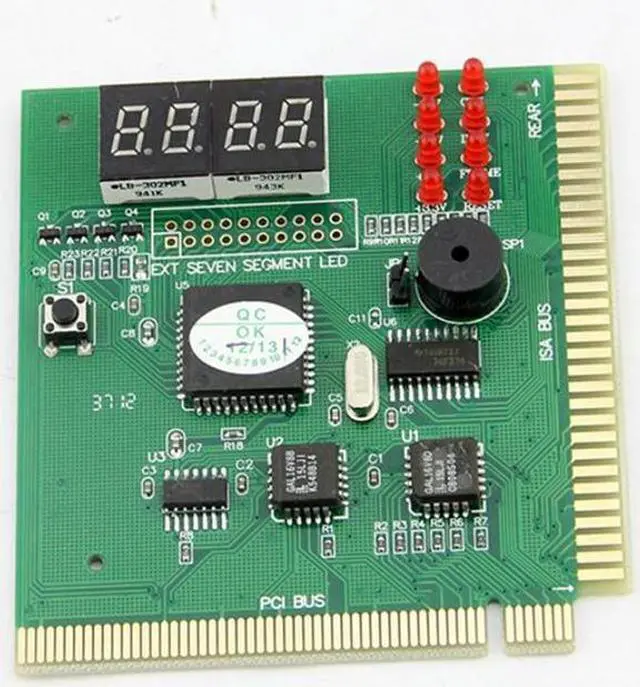

4-Digit LCD Display PC Analyzer Diagnostic Post Card Motherboard Post Tester indicator with LED for mian board

Package:Yes
Model Number:AC4600
Interface Type:PCI
Product name:post card
Interface:PC Analyzer
Feature 1:motherboard tester
Feature 2:pci post card
Feature 3:post card pci
Feature 4:pci tester
Feature 5:test card
Feature 6:diagnostic Card
Feature 7:diagnostic adapter
Feature 8:pci analyzer

4-Digit LCD Display PC Analyzer Diagnostic Post Card Motherboard Post Tester indicator with LED for mian board
About Description:
100% and
Both ISA bus and PCI bus are suitable
Determine defects by difference sounds coding with build-in speaker
It can diagnosis the motherboard signal which show the problem of CPU, Memory, video card, etc The POST code display is made up of a dual, dot matrix hexadecimal read-out that display's Power On Self Test (POST) status codes
Support the power source working indicator -- +5V, +12V, +3.3V and 12V (When indicator LED is on to indicate its respective power is fine, otherwise to indicate its respective power is failure.)
Fully compatible with any kind motherboards which has the PCI and ISA bus slot
Self checking remote display function
Dual POST code display - User can readout the POST at PCB component and solder side. It is easy to view the POST code when user plugs the POST card in computer system
Recall previous post codes at the touch of a button
Color: As the picture
Size: Approx. 8.9 x 8.3 x 0.2cm (L*W*H)
1 x Main diagnostic card
1 x Ribbon cable
1 x English Manual
Please check pictures for more details.
