mSATA to M.2 NGFF Adapters Convert Card 6.0Gb/s NGFF M.2 SATA-Bus SSD B Key to mSATA Male Riser M.2 Adapter for 2230-2280 M2 SSD

Interface Type:NGFF
Package:Yes
Model Number:AC4469
Feature 1:mSATA to m.2 adapter
Feature 2:m2 ssd adapter
Feature 3:ssd m2 adapter
Feature 4:msata to m.2
Feature 5:msata to m.2 ngff
Feature 6:msata to m2 adapter
Feature 7:ssd convert card
Feature 8:ssd adapter
Feature 9:raiser
Feature 10:riser
Feature 11:riser card
Feature 12:Support B Key M.2 SATA-Bus SSD
Feature 13:Support 2230, 2242, 2260, 2280 size M.2 SSD
Feature 14:m.2 adapter
Feature 15:m2 adapter

mSATA to M.2 NGFF Adapters Convert Card 6.0Gb/s NGFF M.2 SATA-Bus SSD B Key to mSATA Male Riser M.2 Adapter for 2230-2280 M2 SSD
About Description:
Description:
100% and

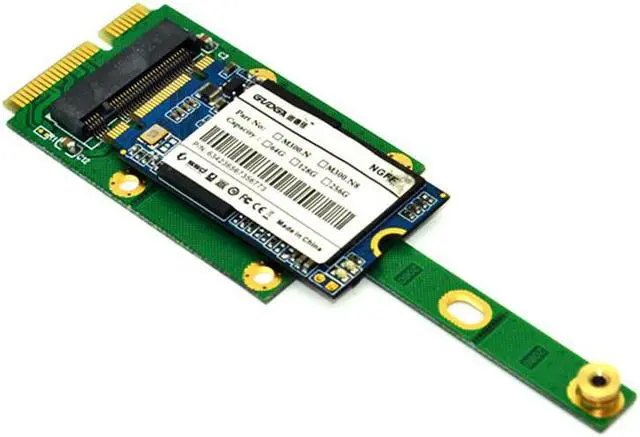

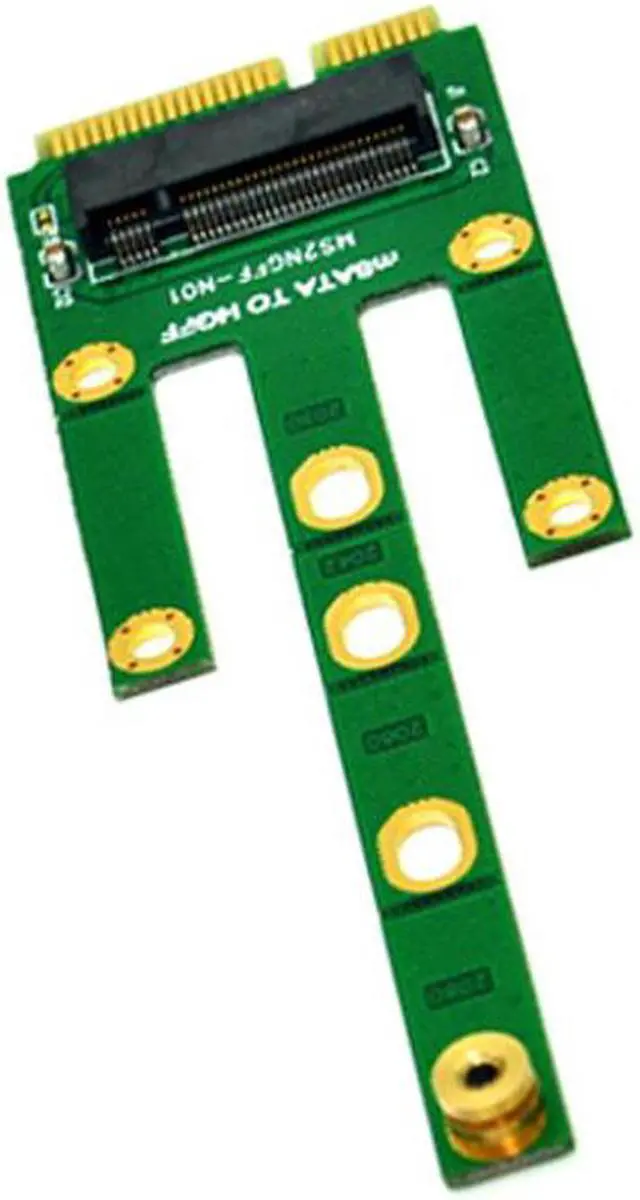

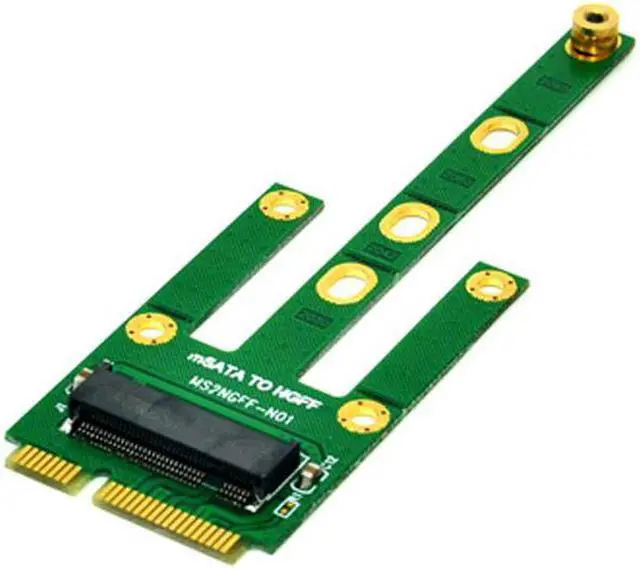

The adapter can use an ordinary MSATA interface SSDconvert to M.2 NGFF interface SSD, the board has four mounting holes, respectively 22 * 30 mm, 22 * 42 mm, 22 * 60 mm, 22 * 80 mm, depending on the length of the slot inside your machine, you can break positioning
Connects NGFF B Key SSD to mSATA Mini PCI-E motherboard.
Compliant with PCI Express M.2 specification 1.0.
Compliant with SATA III specification.
Supports data transfer up to 6.0Gb/s.
Supports SATA-based NGFF SSD.
Supports B Key NGFF SSD.
Supports 2230, 2242, 2260 & 2280 size NGFF SSD.
One NGFF M.2 B Key socket and one mSATA Mini PCI-E male connector available.
4 screw holes 2230/2242/2260/2280 available to fix NGFF SSD card.
4 screw holes available to fix PCB board.
Easy installation & no driver required.
No additional power required.
Support boot function.
Supports any OS, like Windows, WinCE & Linux etc.
Board Size:(L*W)9.90*6.60cm/3.89"*2.60"
Quantity:1Pc
Note
:
Please note that it supports SATA-based B Key SSD only. It does NOT support PCI-E based B key & any M key SSD.
Size for manual measurement, there may be a 0 to 2 cm error, belongs to the normal phenomenon.
And due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
You'll receive:
1 x NGFF M.2 B Key to mSATA Adapter Card
1 x Screws Kit
Please check pictures for more details.
