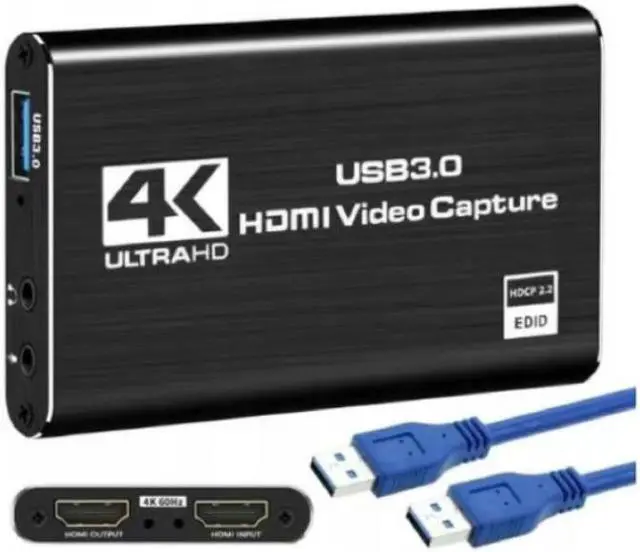

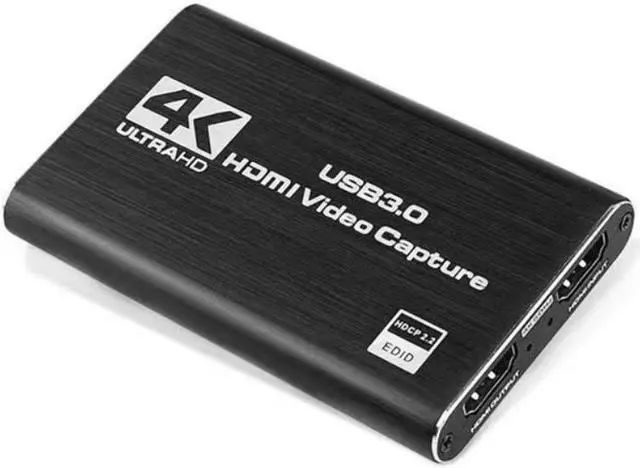

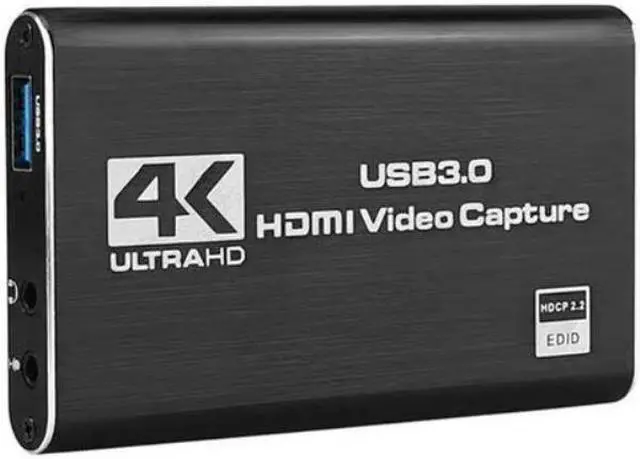

USB3.0 To HDMI Conversion Capture Card HDMI Video Capture Card OBS Recorder 4K HDMI Capture Card

Certification:NONE
Origin:CN(Origin)
Resolution:4K
interface:USB
model:USB3.0-HDMI
the system platform:Windows

USB3.0 To HDMI Conversion Capture Card HDMI Video Capture Card OBS Recorder 4K HDMI Capture Card
Features
1. It can capture a single HD HDMI video signal;
2. Recording video signal up to 1080P/60Hz, HDMI input supports 4K/60Hz; loop out output 4K60HZ
3. Compatible with UVC video capture and YUV422 video output;
4. Support UAC&UVC protocol, support 48 KHz PCM audio sampling rate;
5. No need to install the driver, it is really plug and play;
6. Compatible with Windows 7, 8, 8.1, 10 or later, Linux OS, Mac OS operating system;
7. USB3.0, 300~350MB/s bandwidth, compatible with USB 2.0;
8. With MIC microphone audio input; with headphone output
9. It can automatically detect the input video format, and automatically adjust to the set output size and frame rate;
10. It can automatically detect the input audio format and convert it to 48KHz PCM audio;
11. Multiple collection sticks can be used on one PC;
12. The picture quality is clearer, the RGB color range is 0~255, and the delay is better;
13. Support all third-party player software compatible with UVC and UAC protocols;
To
Interface Description
1. Signal indicator: When the device captures video normally, the indicator lights up.
2. Power indicator light: When the device is connected to the USB port of the computer, the indicator light is on.
3. HDMI input: This slot is the location for connecting HDMI output sources such as cameras, camcorders, game boxes, IPTV boxes, etc.
4. USB3.0 output: This slot is where you connect to the USB3.0 input of your computer or notebook.
To
Packing: Cowhide box (1pc capture card + 1pc USB3.0 male to male cable + 1pc manual)
