3G HDMI-compatible To SDI Converter SDI Adapter Audio HD-SDI/3G-SDI Adapter BNC 1080P DAC Converter for Monitor HDTV

Certification:NONE
Origin:CN(Origin)
Resolution:1080
type:Adapter/patch cord

sdi to hdmi converter

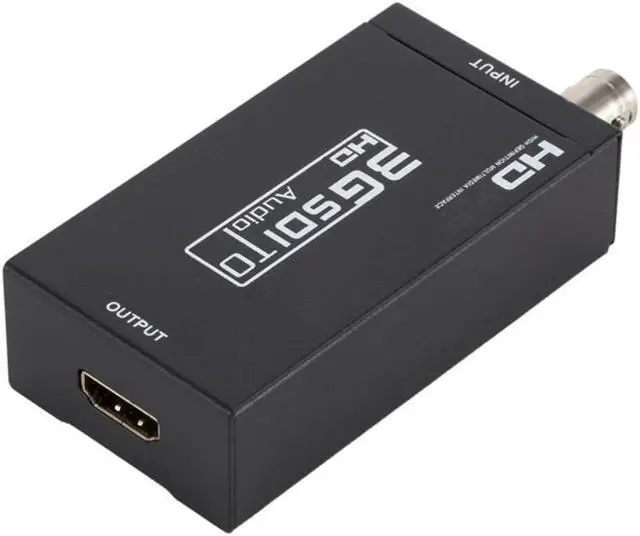

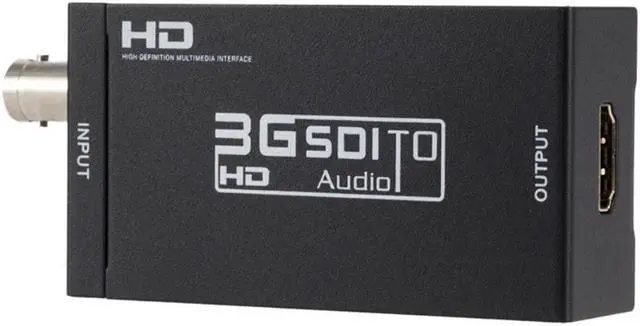

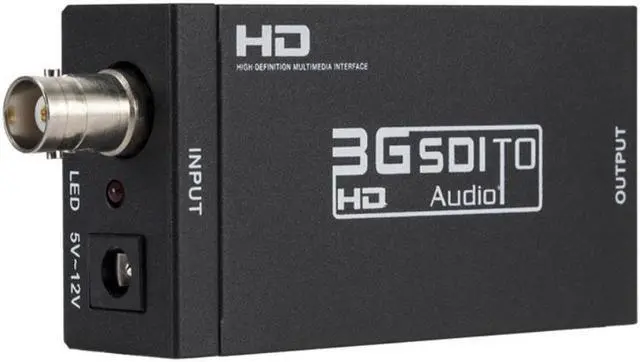

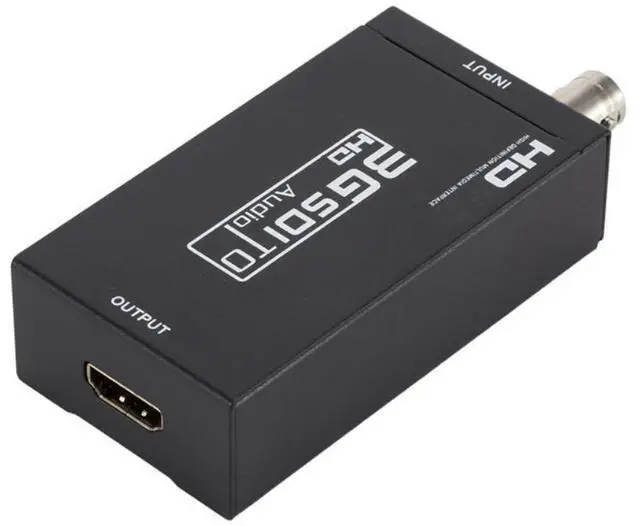

The HD SDI-HDMI Converter is a device designed to convert single HD digital component serial interfaces (HD-SDI and 3G-SDI) to HDMI signals. The device integrates SDI receiver and HDMI modulator can easily convert the HD-SDI signal to HDMI signal , at the same time will be separated by the SDI audio signal embedded into the HDMI signal, in order to achieve the synchronization of sound and image transmission.
SDI
The SDI interface is an acronym for the digital serial interface. Serial interface is the data word of each bit and the corresponding data transmitted through a single channel interface. Due to the high data rate of serial digital signals, they must be processed before being transmitted .
HDMI
HDMI, High Definition Multimedia Interface (English: High Definition Multimedia Interface) is an all-digital video and audio transmission interface that transmits uncompressed audio and video signals. HDMI can be used for set-top boxes, DVD players, personal computers, video games , integrated amplifiers, digital audio and televisions. HDMI can simultaneously transmit audio and video signals, the audio and video signals using the same cable, greatly simplifying the system installation.
Application areas
It is widely used in the field of broadcasting room and non-coding field of TV stations at all levels that use SDI signals. It is also widely used in the field of optical transmission using various HDMI interfaces.
Specifications
1. Video Input Signal: HD Digital Component Serial Interface (HD-SDI and 3G-SDI) signals
2. Video output signal: all the way HDMI signal output (1080P @ 60Hz)
3. Input audio signal: SDI embedded
4. Maximum operating current: 500mA
5. Power adapter specifications: AC input (50HZ, 60HZ) 100V-240V; output: DC 12V / 1A
6. Operating temperature: (- 15 to +55 )
7. Operating humidity: 5 to 90% RH (non-condensing)
8. Dimensions (L * W * H): 80mm x 41mm x 25mm
9. Weight: 150g
Connection and operation:
1. Connect the signal source with the SDI connector to the SDI connector input of this device.
2. Connect the converter output to the terminal display via an HDMI cable.
3. Connect the DC 5V / 1A power supply or 12V power supply to the converter.
Features:
1. Support HD-SDI and 3G-SDI
2. Support Full HD 1080P @ 60Hz
3 resolution automatic identification
4. Audio and image synchronization output
5. Easy to install
The main features
Performance is very advanced, the input supports the most widely used version of HDMI1.3, and backward compatible with HDMI1.2 and HDMI1.1 and below, the output supports the industry's most high-end 3G SDI signals and 1.485G SDI HD signals , And compatible with all types of SD-SDI signals.
The MINI SDI to HDMI converter allows SD-SDI, HD-SDI and 3G-SDI signals to be shown on HDMI/SDI displays
while ensuring high bit rates of 2.970 Gbit/s to give you fast signal transmission without any loss. For
professionals this means that it is now easier to distribute and extend your 3G SDI signal while giving you the
ability to display your work on HDMI displays thanks to the built in HDMI converter
