Universal Garage Door Wireless Remote Controls Chain Type External Electric Roller Shutter Door Controller 433Mhz Auto Accessory

Use:Electric Door
Certification:NONE
Origin:CN(Origin)
Wireless Communication:RF
Transmission wire:Radio wave
Specifications:315/433
Rated current:10mA
Rated voltage:220V
external dimensions:3500mm
Wireless transmission distance:150m
type:remote control

Universal Garage Door Wireless Remote Controls Chain Type External Electric Roller Shutter Door Controller 433Mhz Auto Accessory
1. Product technical parameters
Working voltage: AC220V
Ambient temperature: -20-60
Output current: 2A/220VAC
Remote control distance: 50m
Decoding method: MCU decoding (fixed code remote control and learning code remote control are optional)
Working frequency: 433MHZ

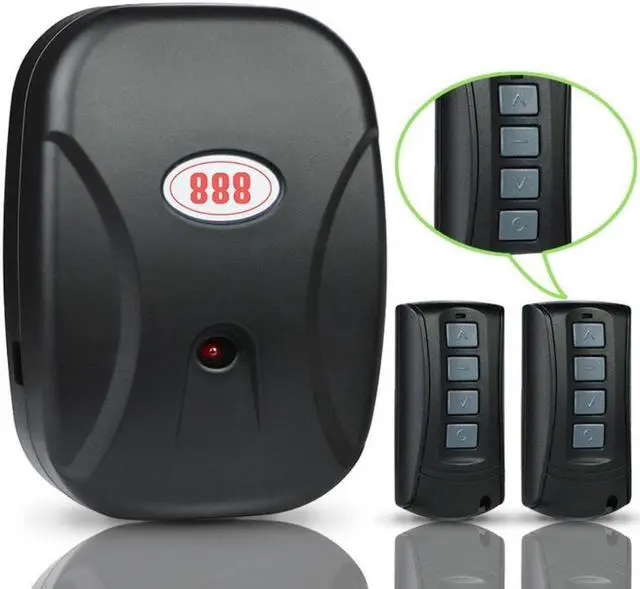

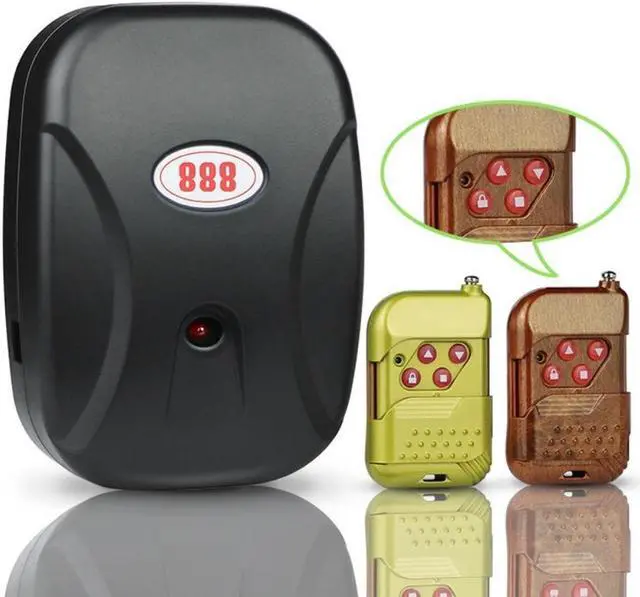

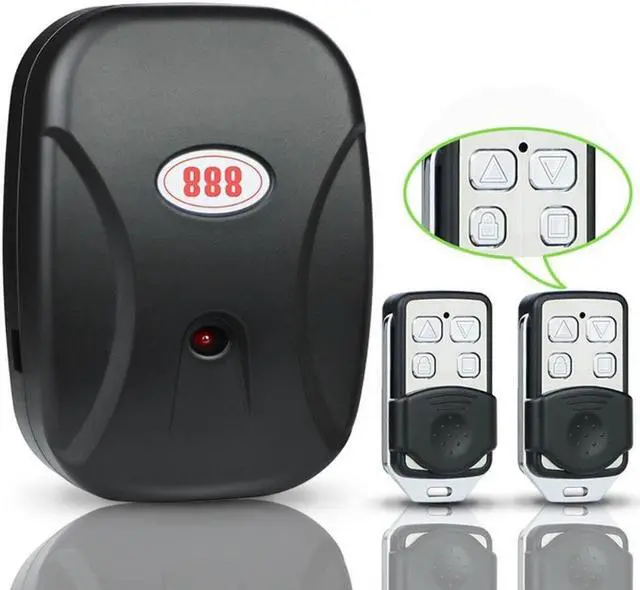

Product standard configuration: one control box, two remote controls, one manual
2. Product features
The controller and the paired remote control use millions of learning code encoding chips, the repetition rate is extremely low, and the use is safer.
Three, code matching/reverse setting
This product has already learned the code matching between the remote control and the controller before leaving the factory. There is no need to pair it again before use. If you need to increase or decrease the remote control, follow the code matching steps below.
Code
1. Press the stop motor on the remote control first to stop the motor
2. Press the code button on the controller to let go, the power indicator red light goes out, and then press any button on the remote control, the power indicator red light flashes three times, indicating that the code is successfully matched.
Clear code
Long press the code key on the controller without letting go, the power indicator red light from on to off to flashing three times, release the code key to indicate that the code is cleared successfully (all the remote controls paired with the controller have been cleared)
Motor forward/reverse setting
When you need to change the forward and reverse direction of the motor, long press the remote control lock button without letting go, and the power indicator flashes three times in about five seconds. Release the remote control lock button, and the motor forward and reverse direction changes successfully. The operation of returning to the setting is the same. Before changing the forward and reverse direction of the motor, be sure to stop the motor.
