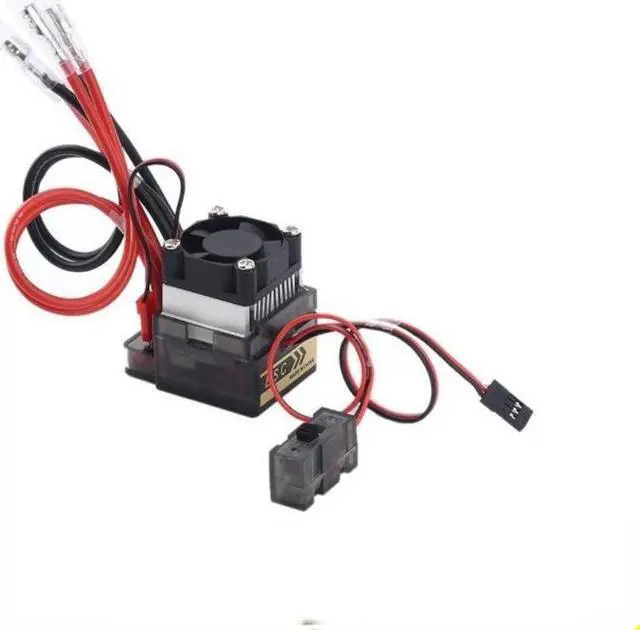

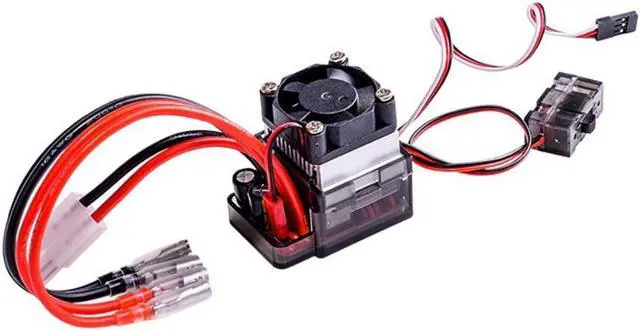

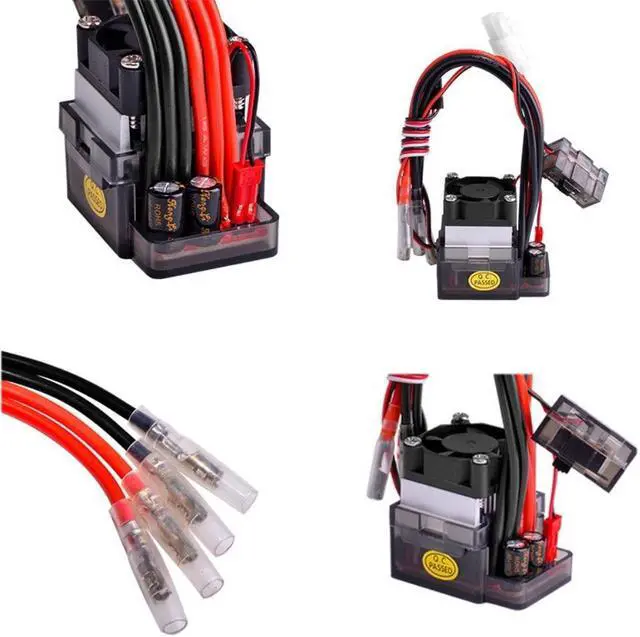

7.2V-16V 320A High Voltage ESC Brushed Speed Controller RC Car Truck Buggy Boat for RC Car Boart 1/8 1/10

Certification:NONE
Origin:CN(Origin)
Product Category:Toy electronic accessories
Color:Black+grey+red
Specifications:320A

Product parameter
support: 7 ~ 12 groups of nickel hydrogen and nickel cadmium (8.4v ~ 16V); Lithium 2 ~ 3 groups (11.1 ~ 12.6V)
Current parameters: forward 320A, backward 160A, brake 250A.
Continuous current: 20A
BEC output: voltage 5.6V, current 2A. (Supply power for receiver and steering gear)
Size: L47mm, W35mm, H42mm (including heat sink fan part)
Weight: 92g
Features:
1. automatically find the center position.
2. High frequency drive system
3. Overheat protection function
4. Low voltage protection function
5. Utilize low internal resistance field effect inner tube
6.Suitable for car and ship model use
Operation guide:
1. Connect to the power supply correctly, the red wire at both ends of the wiring board is the positive pole, and the black is the negative pole. (Or connect the standard DC plug Datian male plug/T plug/banana plug)
2. Connect the red and black wires of the ESC output to the red and black wires of the car's 5 motors respectively
3. Turn on the power switch of the ESC. If there is no signal input at this time, the motor will emit a "beep~beep~beep" alarm sound. When the transmitter is turned on and the signal is injected normally, it will make a "do~la~mi" sound, which proves that the transmitting signal and the receiver's ESC have been connected
4. Throttle operation: forward push is the forward mode, back center is the braking mode, and back pull is the backward mode. (During the rapid movement of the car, it is forbidden to push and pull the throttle directly over the midpoint, so as to prevent the current of the motor from being excessively large and burning the electric adjustment due to locked rotation.)
