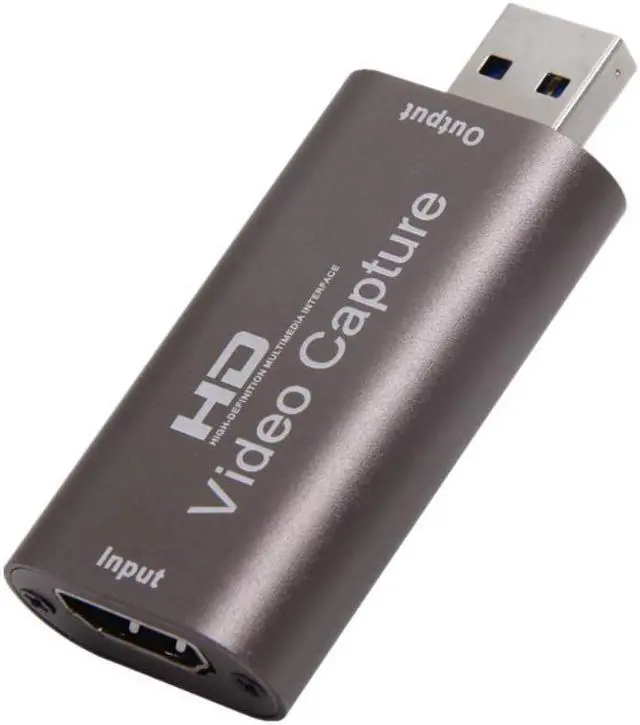

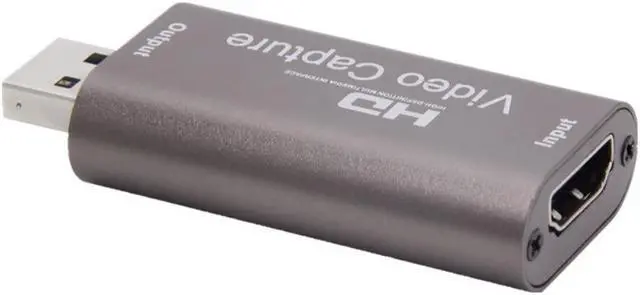

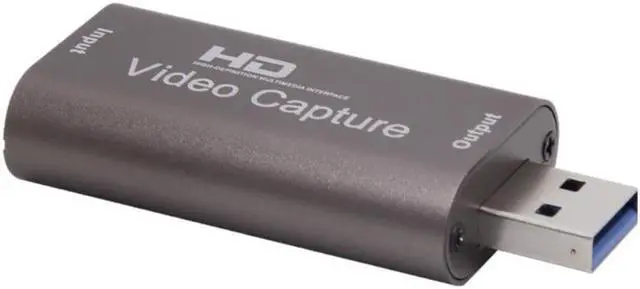

4K Video Capture Card USB3.0 2.0 HDMI-compatibleVideo Grabber Record Box for PS4 Game Camcorder Camera Recording Live Streaming

Certification:NONE
Origin:CN(Origin)
Resolution:1080P
interface:USB

4K Video Capture Card USB3.0 2.0 HDMI Video Grabber Record Box for PS4 Game DVD Camcorder Camera Recording Live Streaming
Features:
* Support the maximum input resolution of 3840×2160@60Hz;
* Support the maximum output resolution of 1920×1080@60Hz;
* Support 8/10/12 bit color depth;
* When using standard AWG26 cables, the input transmission distance is up to 15 meters (1080P and below resolution);
* Support most acquisition software, such as VLC, OBS, Amcap, etc.;
* Support Windows, Android and MacOS;
* Comply with USB video UVC specification;
* Comply with USB audio UAC specification;
* No need for external power supply, compact and easy to carry.
Connection operation:
1: Connect the UHD signal source and the HDMI input port of the USB capture card through 1 HDMI cable
2: Plug the USB male connector of the USB capture card into the USB port of the computer
3: Acquisition operation steps (OBS): open the software add a source select "video capture device" set the screen size
Select 'Studio Mode' (dual windows) click on 'Start Recording', see the example below for details
1. Add a source, select 'video capture device' 2. Set the screen size
3. Select 'Studio Mode' (dual windows) and the above settings are completed.
Note: computer hardware configuration requirements
CPU: PC i5-3400 or above; NB i7-3537U 2.0GHZ or above
Graphics card: PC NVIDIA GT630 or above; NC NVIDIA GT735M or above
Storage: 4G RAM
