X79 H61 BTC Mining Motherboard with E5 2603 CPU RECC 4GB DDR3 Memory 120G SSD+Fan 5X PCI-E Support 3060 3070 3080 GPU

Bundle:Motherboards
Quality Certification:ce
Chipset:Intel H87
Socket Type:LGA 1151
Storage Interface Type:U.2
Item Condition:
Onboard LAN:1x RJ45
Package:Yes
Model Number:250
Application:Mining
With CPU:No
Special Function:Intel Optane Ready
Maximum Ram Capacity:16 GB
Chipset Manufacturer:Intel
Back I/O Ports:1x RJ45
Support Memory Type:DDR4
Usage Scenario:Industrial Computer
Number of PCI:2
PCI - E standards:PCI - E 3.0
Origin:CN(Origin)
Certification:NONE
Type:BTC Motherboard
CPU interface:LGA 2011
USB interface:4USB2.0
USB pin:1USB2.0

X79 H61 BTC Mining Motherboard with E5 2603 CPU RECC 4GB DDR3 Memory 120G SSD+Fan 5X PCI-E Support 3060 3070 3080 GPU

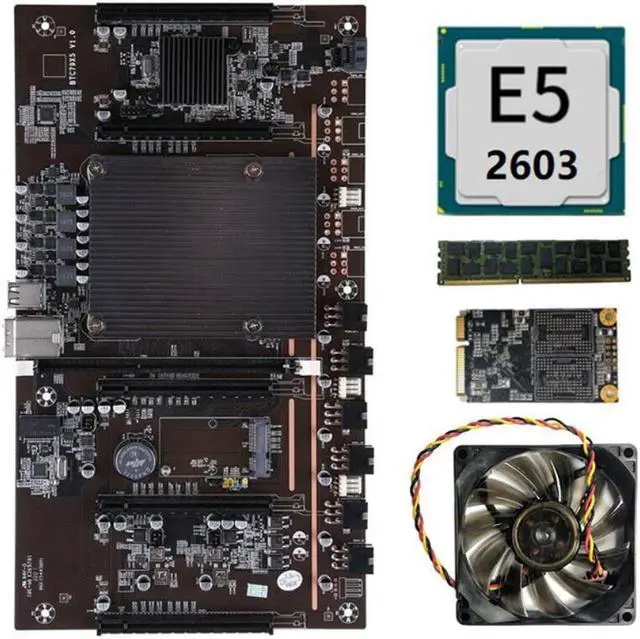

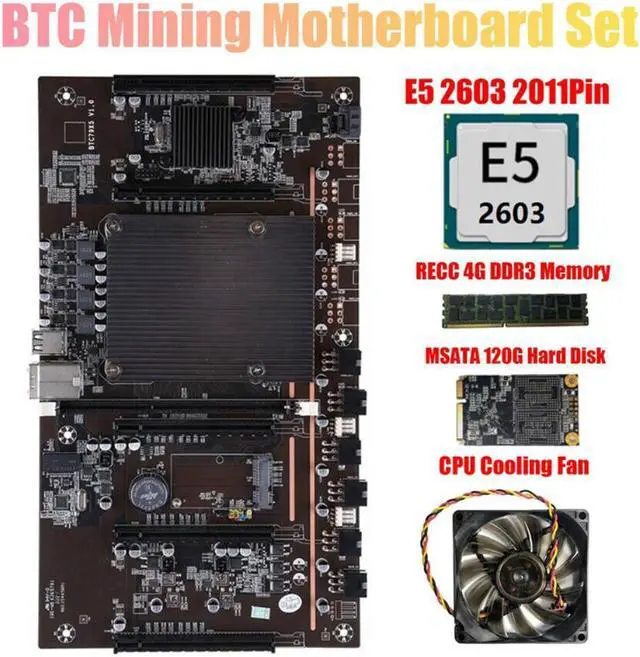

X79 BTC 5 Card Slot Mining Board +E5 2603 2011 Pin CPU+RECC 4GB DDR3 Memory + MSATA 120G Hard Drive+CPU Cooling Fan Kit
If you want to use other CPUs, please use CPUs below 2630, such as 26 series such as 2603 2609 2620 2603 V2 2609 V2 2620 V2
The BTC X79 motherboard uses the H61 chip and a single-channel 2011 socket CPU;

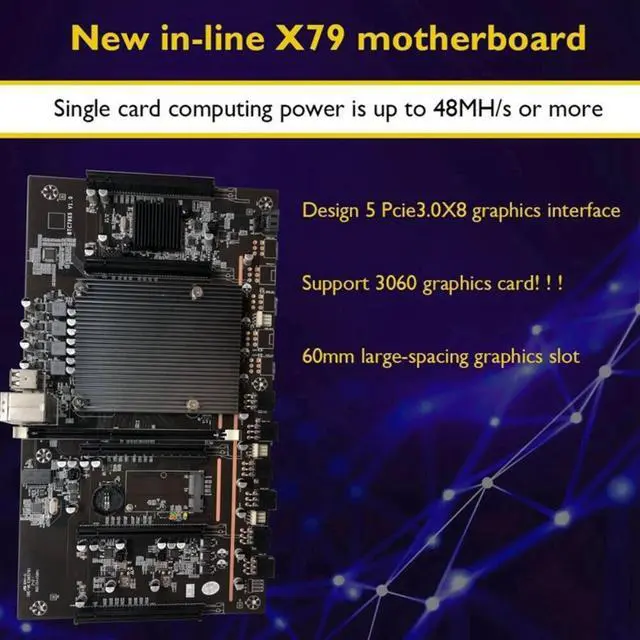

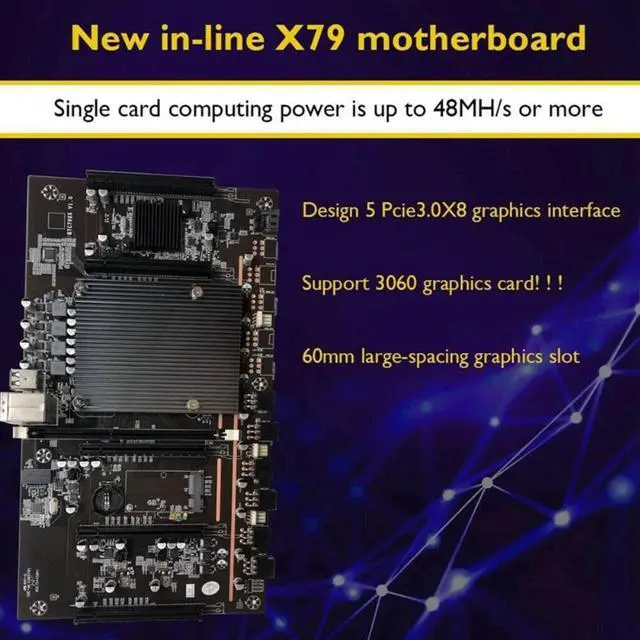

Design 5 Pcie3.0X8 graphics interface. The computing power of a single card is up to 48MH/s or more, and it perfectly supports 4G video memory graphics cards, which greatly improves the mining function of computing power.
In-line 5 card X79 (H61 chip) motherboard, support 3060 3080 graphics card! 60mm large-spacing graphics slot.
Supported CPU platform: for XEON
Chipset: for H61
Supported CPU type: E5-26XX (supports 26 series CPUs below 2630)
Audio chip: N/A
Supported CPU socket: 2011
Network card chip: 1*REALIEK 8105E 100M network card
Memory type: DDR3 supports desktop and server memory
Support Maximum memory capacity: 32G
Working environment: 0-95% relative humidity, non-condensing, -20°c-60°c
Memory description: Support 1066/1333/1600/1866MHz frequency
Memory: RECC 4G DDR3
Hard Disk: MSATA 120G
Heat dissipation: the motherboard comes with a heat sink
Heat dissipation:CPU Cooling Fan
1. CPU socket: 1*LGA(2011)
2. USB port: 4*USB 2.0
3. USB pin: 1*USB 2.0
4. Hard disk interface: 1*SATA 3.0
5. Hard disk interface: 1*MSATA
6. Network card interface: 1*LAN
7. Memory slot: 1*DDR3
8. Chipset: BGA (H61)
9. BIOS initial restore: JCMOS
10. Graphics interface: 5*PCI Express 3.0 8X, pitch 60mm
11. Motherboard/graphics card power supply: 6*POWER_PE
Notice: Different batches of products are slightly different, and the colors of the slots and the bottom plate are random, the specified color is not accepted. Please understand it!
size: 322 x 188mm
Material:PCB
colour:black
Package Contents:
1 x Motherboard
1 x E5 2603 CPU
1 x Memory
1 x Hard Drive
1 x Fan
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
