H81 Motherboard Support LGA1150 Pin 4/5Th Generation CPU Processor DDR3 Memory Desktop Computer Motherboard

Quality Certification:NONE
Chipset:Intel X99
Socket Type:LGA 1366
Storage Interface Type:SATA
Item Condition:
Onboard LAN:1x RJ45
Package:Yes
Model Number:as discribed
Application:Mining
With CPU:Yes
Special Function:NONE
Maximum Ram Capacity:16 GB
Chipset Manufacturer:Intel
Back I/O Ports:1x RJ45
Support Memory Type:DDR4
Usage Scenario:Enthusiast & Overclocking
Number of PCI:2
PCI - E standards:PCI - E 3.0
Origin:CN(Origin)
Certification:NONE
Name:H81 motherboard
CPU interface:LGA1150
Support model:45th generation
Memory type:DDR3 DIMM

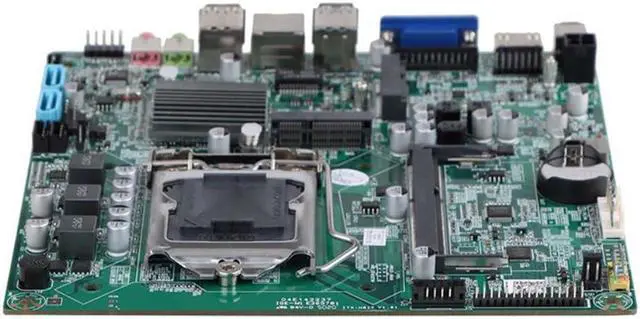

H81 Motherboard Support LGA1150 Pin 4/5Th Generation CPU Processor DDR3 Memory Desktop Computer Motherboard
CPU: Support LGA1150 pin 4/5th generation CPU processor
This product uses high-quality materials, is durable, has a long service life, and is firm and stable in use.
Memory: 1*DDR3 SO-DIMM slot only supports 1.35V DDR3 1333/1600 MHz memory, maximum support 8GB
Solid Capacitors The performance of solid capacitors is stable, which greatly prolongs the service life of the motherboard.
plug and play, convenient and trouble-
parameters
1. CPU: Support LGA1150 pin 4/5th generation CPU processor

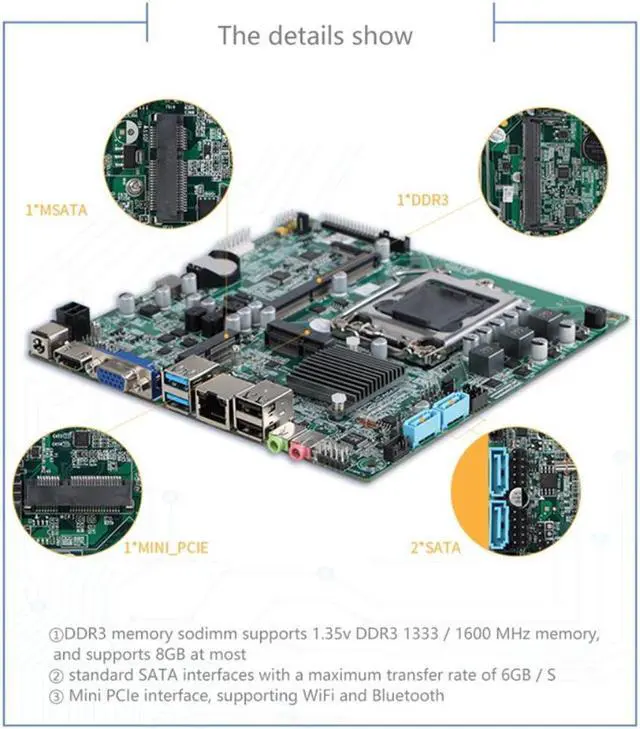

2. Memory: 1*DDR3 SO-DIMM slot only supports 1.35V DDR3 1333/1600 MHz memory, maximum support 8GB
3. Storage: 1*MSATA, 2*SATA
4. Audio: Onboard: ALC662 6-channel high-fidelity audio controller, supporting MIC/Line-out. Power amplifier
5. Network: 1*RTL8106E Gigabit Ethernet chip
6. Expansion interface: 1*Mini-PCIE

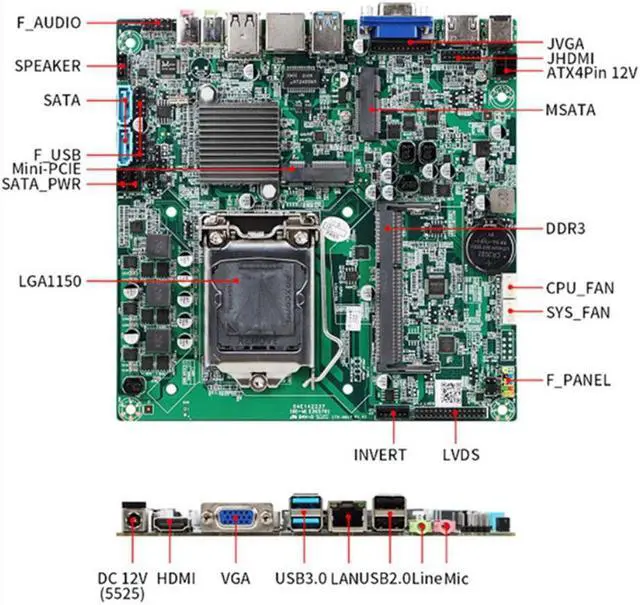

7. Backplane 1/O interface:
1*HDMI
1*VGA
1*LAN RJ-45
2*USB2.0
2*USB3.0
1*Line out
1*Mic
1*DC5525
8. Built-in 1/O interface:
1*LVDS
1*INVERT
2*F_USB2.0
1*F_PANEL
1*F_AUDIO
2*SATA
2*SATA_PWR
1*SPAKER
1*JVGA
1*JDMI
1*ATX4Pin 12V
9. Fan interface: 1*CPU_FAN fan interface 4pin, 1*SYS_FAN fan interface 4pin
10. BIOS: AMI 64Mb Flash ROM
11. Power supply type: DC12V power input
Colour:green
Material:PCB
Size:170 x 170MM
Package Contents:
1 * Motherboard
Note: The appearance of different products in different batches will be different, which will not affect the use
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
