Motherboard for Core I5-3317U Computer Motherboard Embedded Ddr3 Industrial Control Motherboard

Quality Certification:NONE
Chipset:Intel X99
Socket Type:LGA 1366
Storage Interface Type:SATA
Onboard LAN:1x RJ45
Package:Yes
Model Number:as discribed
Application:Mining
With CPU:Yes
Special Function:NONE
Maximum Ram Capacity:16 GB
Chipset Manufacturer:Intel
Back I/O Ports:1x RJ45
Support Memory Type:DDR3
Usage Scenario:Gaming
Number of PCI:3
PCI - E standards:PCI - E 3.0
Origin:CN(Origin)
Certification:NONE
Name:motherboard
Memory type:DDR3 DIMM

Motherboard for Core I5-3317U Computer Motherboard Embedded Ddr3 Industrial Control Motherboard
Memory 1xDDR3 SO-DIMM slot supports 1.35V DDR3 1333/1600MHz memory maximum support 8GB,
Audio: Onboard ALC662 6-channel high-fidelity audio controller, support MIC/Line-out. Amplifier
Solid Capacitors The performance of solid capacitors is stable, which greatly prolongs the service life of the motherboard.
This product uses high-quality materials, is durable, has a long service life, and is firm and stable in use.
Plug and play, convenient and trouble-
1. CPU: Core i5-3317U dual-core four-thread clocked at 1.7GHz, up to 2.6GHz,
2. Memory 1xDDR3 SO-DIMM slot supports 1.35V DDR3 1333/1600MHz memory maximum support 8GB,
3. Storage interface: 1xMSATA, 2xSATA
4. Audio: Onboard ALC662 6-channel high-fidelity audio controller, support MIC/Line-out. Amplifier
5. Network card: 1xRTL8111F Gigabit network card chip, support Wake-on-LAN/PXE function
6. Expansion slot: 1xMini-PCIE (support Bluetooth/WIFI module)

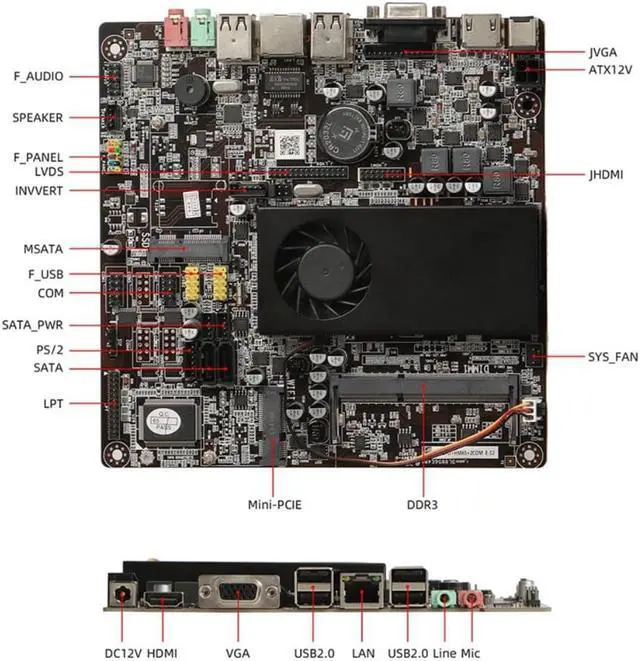

7. External I/O interface:
1 x HDMI
1 x VGA
1 x LAN
4 x USB 2.0
1 x Line out
1 x Mic
1 x 12V DC_JACK (5525)
8. Built-in I/O interface:
1 x LVDS
1 x INVERT
1 x JHDMI
1 x JVGA1
2 x F_USB 2.0
1 x F_AUDIO
1 x SPEAKER
1 x F_PANEL
2 x SATA_PWR
1 x ATX12V 4Pin
2 x COM
1 x PS/2
9. Fan interface: 1xCPU_FAN, 1xSYS_FAN
10. BIOS: AMI 64Mb Flash ROM
11: Support power supply: DC 12V power input
Material:PCB
colour:Black
Package Contents:
1 x Motherboard
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
