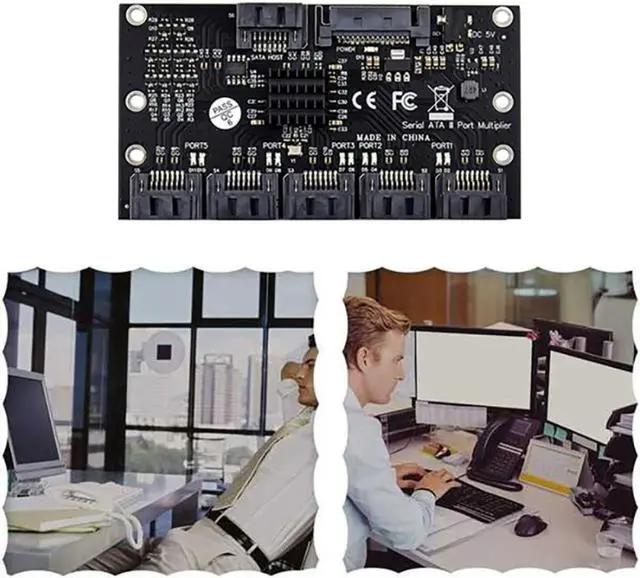

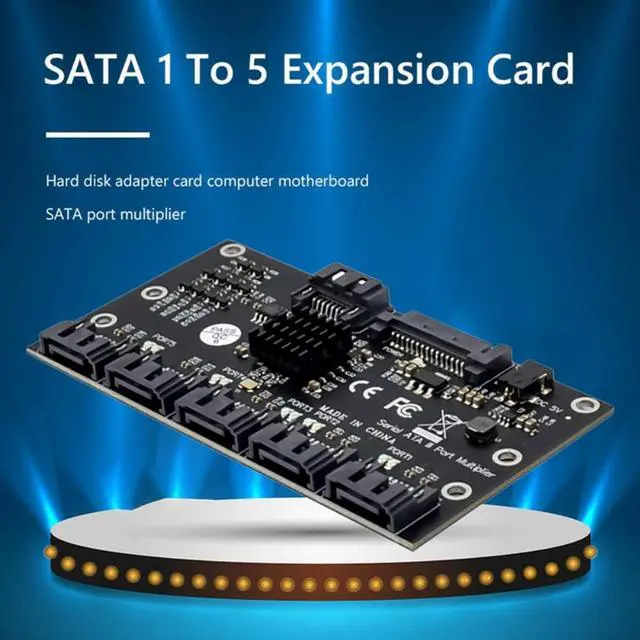

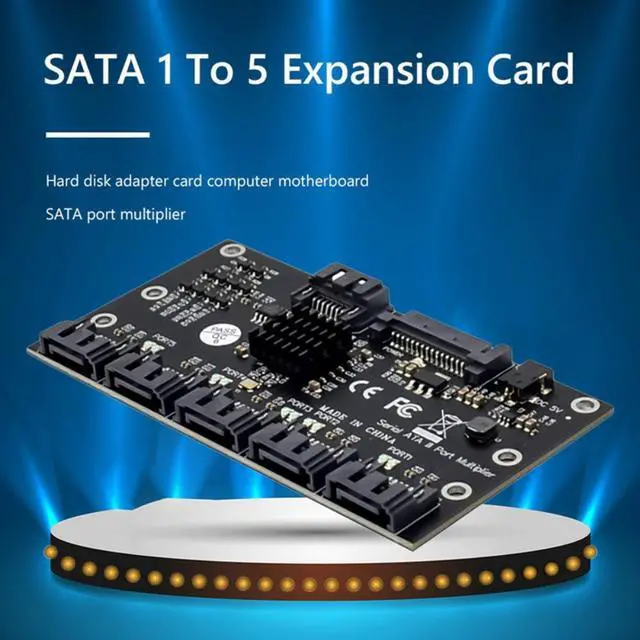

SATA 1 To 5 Hard Drive Adapter Card JMB575 SATA-III Port Multiplier Expansion Card Supports SATA3.0 Expansion SATA Cable

Product name:SATA expansion card
Material:PCBmetal
Certification:NONE
Origin:CN(Origin)

SATA 1 To 5 Hard Drive Adapter Card JMB575 SATA-III Port Multiplier Expansion Card Supports SATA3.0 Expansion SATA Cable
1. SE-SAJ575A-5T multiplying expansion card, using single-chip JMicron JMB575 controller. It integrates six independent SATA channels and a microprocessor.
2. JMB575 multiplying expansion card can be configured as a serial ATA III port multiplier with 1 to 5 ports or a Serial ATA III port selector with 5 to 1 ports through proper settings.
3. SE-SAJ575A-5T multiplying expansion card contains 15 GPIOs, which can be configured as various standard interfaces. Load external firmware code to expand its functionality. Support cascade mode, up to 15 drives can be connected to a host.
4. The JMB575 multiplying expansion card integrates 6 high-speed serial I/Os, 6 SATA upper layers, a microprocessor, SRAM, PROM and other control logic in the chip.
5. It can be used as a 1 to 5 port port multiplier or a 5 to 1 port port selector with internal embedded firmware and no need for additional external flash memory.
Product name: SATA expansion card
Product specifications:
Complies with Serial ATA port multiplier specifications. Revision 1.2
Conforms to the serial ATA port selector specification. Revision 1.0
Compliant with Serial ATA PHY electrical specifications. Revision 1.0
Comply with serial ATA high-speed serialized AT accessory specification. Revision 3.1
Integrated 6-port SATA IIIPHY, integrated PLL for SATA III interface
Six independent SATA channels on board
Integrated uP, PROM and SRAM for firmware programming
1.2V core and 3.3V I/O power supply
SATA:
Support 6-port 6.0Gbps SATA III interface
SATA III PHY output swing control and automatic impedance calibration
Support asynchronous signal recovery, spread spectrum clock
Support partial/sleep power saving mode
Auto speed negotiation
Support BIST and loopback mode
Support staggered rotation
Support hot swap
Support asynchronous notification
Support ATAPI driver
Support command-based and FIS-based switching
Supports PM-aware and non-PM-aware hosts
Support cascade mode
Supports execution of firmware code loaded by the host
colour:Black
Material:PCB+metal

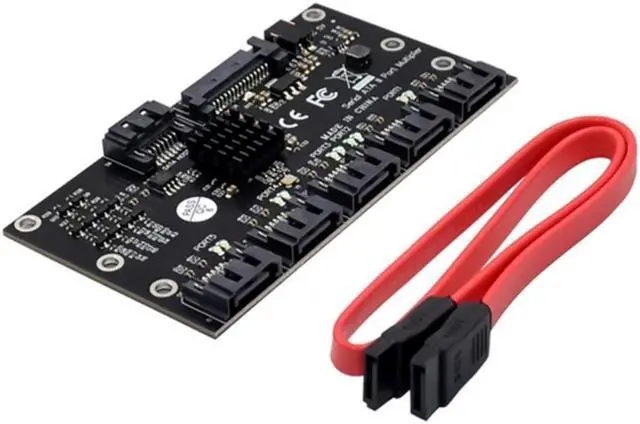

Package Contents:
1 x SATA expansion card
6 x SATA data cables
1 x usb to dc power cord
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
