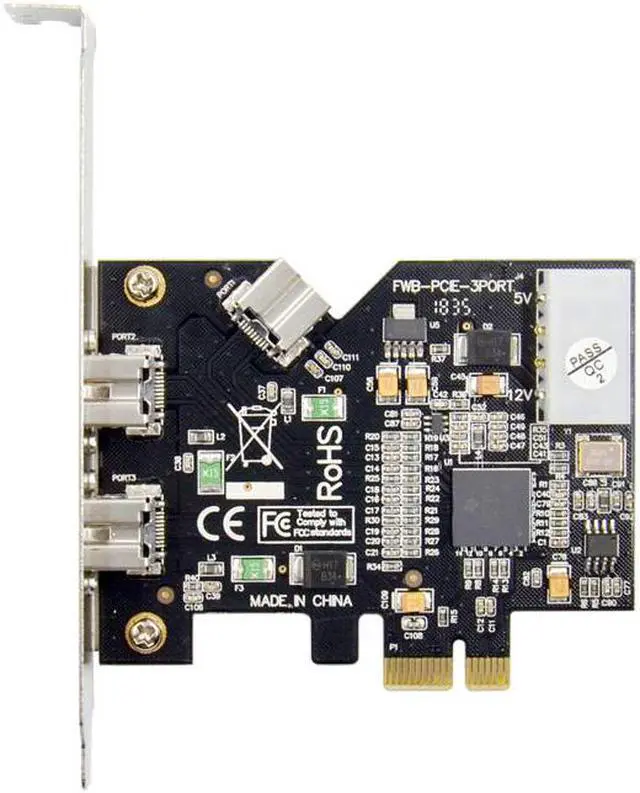

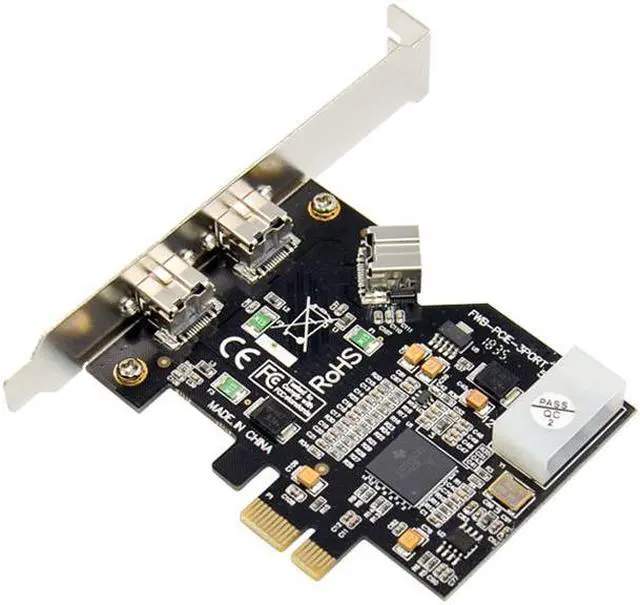

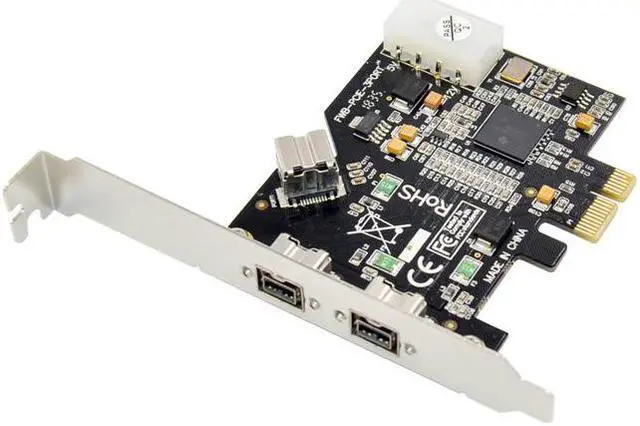

PCI-Express IEEE 1394B FireWire 3 Ports 2 External and 1 Internal Controller Adapter Card With TI XIO2213 Chipset

Package:Yes
Model Number:ZD0340
Type:Add On Cards
Interface Type:PCI Express

PCI-Express IEEE 1394B FireWire 3 Ports 2 External and 1 Internal Controller Adapter Card With TI XIO2213 Chipset
Features:
TI XIO2213A is a multi-function PCI Express bus interface that is internally connected to a 1394b open host controller link layer controller with a three-port 1394b PHY. After XIO2213A is correctly configured, the solution can provide complete PCI Express and 1394b functions and performance.
Two External FireWire 800 (1394b) ports and one internal 1394b port are provided for connection of multiple 1394b devices
Supports data transmission rates of 100, 200, 400 and 800 Mbps
Built-in 4-pin power connector to provide extra power when connected to system power (recommended)
Supports hot swap and plug-and-play connection of peripheral devices
Suitable for various types of FireWire 800 (1394b) devices, including portable hard drives, DV camcorders, digital cameras, CD-RW / DVD-ROM drives and other audio / video devices

Specs:
Full compliance with PCI Express basic specifications, revision 1.1

Use a 100 MHz differential PCI Express common reference clock or 125 MHz single-ended reference clock

Fully support the provisions of IEEE P1394b-2002


Fully conforms to the 1394 open host controller interface specification, revision 1.1 and revision 1.2 draft

Three IEEE Std 1394b fully compatible cable ports: 100M Bits / s, 200M Bits / s, 400M Bits / s and 800M Bits / s

Cable port monitors line conditions for active connections to remote nodes

Wired power presence monitoring

EEPROM configuration supports loading the globally unique ID of 1394 Fabric

Support D1, D2, D3hot

When the packet activity on the PCI Express link is idle, when using the L0 and L1 states, the active state link power management

Can save power,
8x 3.3V, multi-function, universal I / O terminals
Package:
1 x 3-port PCIe to IEEE 1394b Adapter Card
