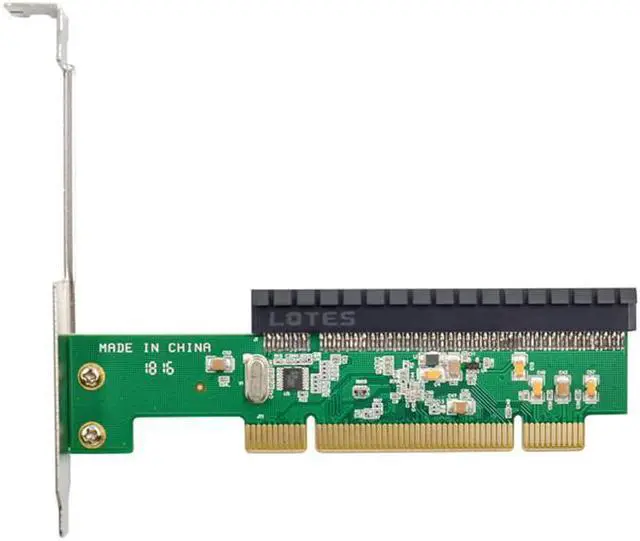

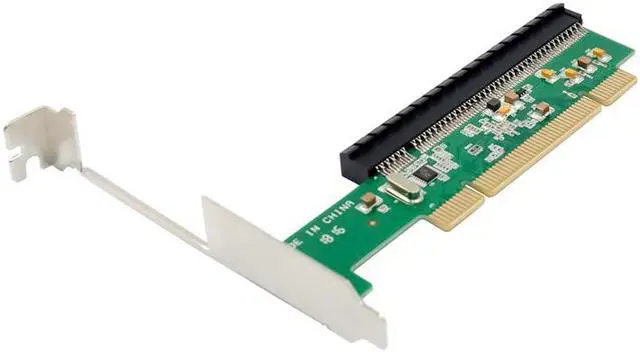

PCI to PCIe PCI Express Adapter Card Converter Bridge Support PCI-E x1 x4 x8 x16 For Windows Linux Desktop Computer

Package:Yes
Model Number:ZD0331
Type:Add On Cards
Interface Type:PCI

PCI to PCIe PCI Express Adapter Card Converter Bridge Support PCI-E x1 x4 x8 x16 For Windows Linux Desktop Computer
Features:
PEX 8112 supports the forward and reverse bridges defined by PCI to PCI Express / PCI-X Bridge Specification 1.0.
In forward mode, the bridge allows traditional PCI chips and adapters to be used with the PCI Express processor system. Reverse bridge operation allows traditional PCI processors and chipsets to configure and control advanced PCI Express switches and endpoints.
In contrast, PEX 8112 not only allows the downstream PCI Express system to be completely configured from the PCI bus, but also handles limited PCI Express root functions for reverse interrupts and power management events.

Specs:
Chipset: PXE8112
Compliant with PCI specification version 2.3
PCI 32-bit card converted for PCI Express x1, x4, x8 or x16
PCI Express 1 lane port (1 virtual lane), 2.5Gbps
Compliant with PCI Express Specification Version 1.0
Support PCI slot 3.3V / 1A, 3.3Vaux / 100mA, 5V / 5A and 12V / 500m
Plug and play
Windows Server 2000 / NT / XP / Vista / Win 7, Linux

Package:
1x PCI to PCIE Adapter Card
