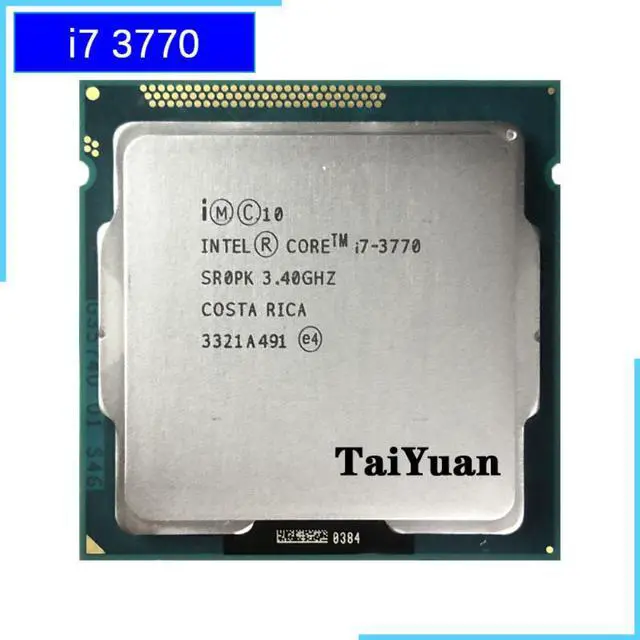

Intel Core i7-3770 i7 3770 3.4 GHz Quad-Core CPU Processor 8M 77W LGA 1155

Intel Model:Intel Core i7-3770
Support Memory Channels:2
PCIe VERSION:PCIe 2.0
Application:Desktop
Number OF Therads:8
Usage Scenario:Others
Support Memory Type:DDR3
Support Chipset Models:Intel B75
Processor Type:Intel Core
Chip Process:22 nanometers
Default TDP / TDP:77W
Origin:MY(Origin)
Unlocked:No
Socket Type:LGA 1155
Type:Quad-Core
GPU-built:Yes
L3 Cache Capacity:8 MBMB
Number of Cores:Quad-Core
Package:No
L2 Cache Capacity:1 MBMB
Model Number:Intel Core i7-3770
Warranty:One year

Intel Core i7-3770 specifications
Architecture / Microarchitecture
Microarchitecture
Ivy Bridge
Processor core
?
Ivy Bridge
Core stepping
?
E1 (SR0PK)
Manufacturing process
0.022 micron
Data width
64 bit
The number of CPU cores
4
The number of threads
8
Floating Point Unit
Integrated
Level 1 cache size
?
4 x 32 KB 8-way set associative instruction caches
4 x 32 KB 8-way set associative data caches
Level 2 cache size
?
4 x 256 KB 8-way set associative caches
Level 3 cache size
8 MB 16-way set associative shared cache
Physical memory
32 GB
Multiprocessing
Uniprocessor
Features
MMX instructions
SSE / Streaming SIMD Extensions
SSE2 / Streaming SIMD Extensions 2
SSE3 / Streaming SIMD Extensions 3
SSSE3 / Supplemental Streaming SIMD Extensions 3
SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4
?
AES / Advanced Encryption Standard instructions
AVX / Advanced Vector Extensions
F16C / 16-bit Floating-Point conversion instructions
EM64T / Extended Memory 64 technology / Intel 64
?
NX / XD / Execute disable bit
?
HT / Hyper-Threading technology
?
TBT 2.0 / Turbo Boost technology 2.0
?
VT-x / Virtualization technology
?
VT-d / Virtualization for directed I/O
TXT / Trusted Execution technology
Low power features
Enhanced SpeedStep technology
?
Integrated peripherals / components
Integrated graphics
GPU Type: HD 4000
Graphics tier: GT2
Microarchitecture: Gen 7
Execution units: 16
Base frequency (MHz): 650
Maximum frequency (MHz): 1150
The number of supported displays: 3
Memory controller
The number of controllers: 1
Memory channels: 2
Supported memory: DDR3-1333, DDR3-1600
Maximum memory bandwidth (GB/s): 25.6
Other peripherals
Direct Media Interface 2.0
PCI Express 3.0 interface
Electrical / Thermal parameters
Maximum operating temperature
?
105°C (junction)
Thermal Design Power
?
77 Watt
