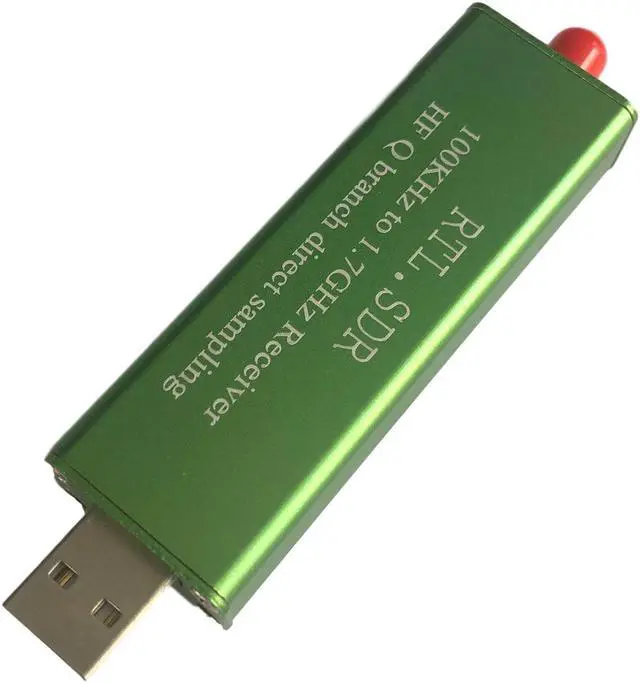

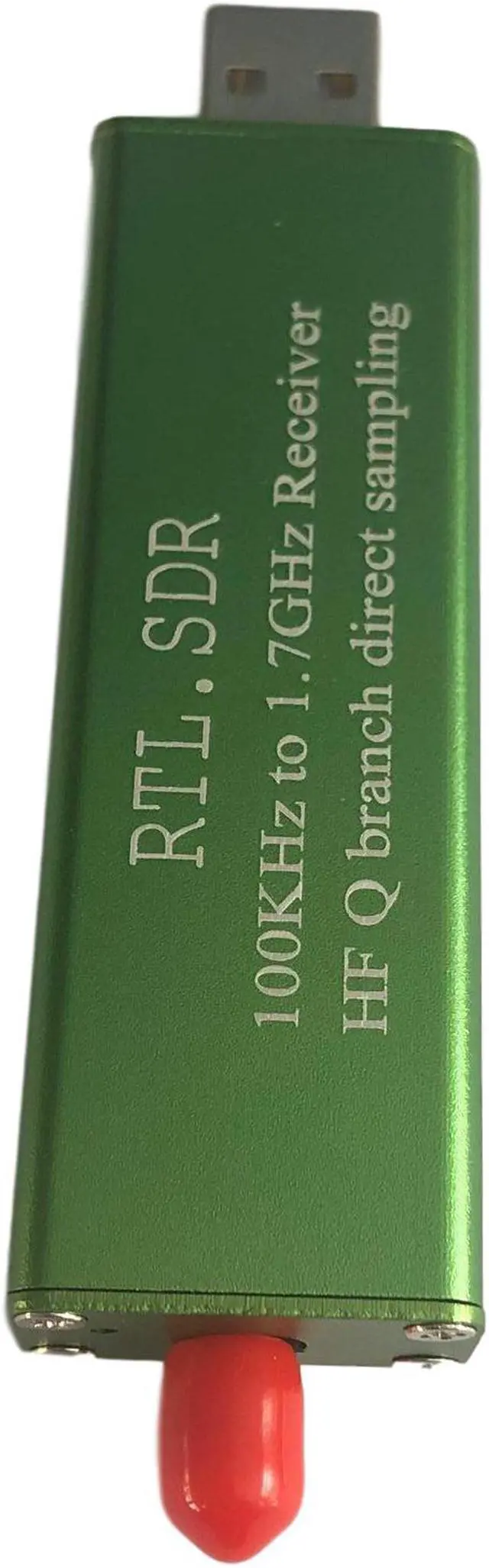

Software defined radio RTL2832U+R820T2 full-band RTL-SDR receiver Aviation Shortwave Broadband

Origin:CN(Origin)
State of Assembly:Ready-to-Go
Compatibility:All Compatible
Model Number:RTL2832U+R820T2
RTL2832U+R820T2:RTL2832U+R820T2

0.1MHz-1.7GHz TCXO temperature-compensated high-stability full-band software receiver, aviation band ADSB
Features
The signal received by the antenna is converted into data by the receiver, and sent to the computer, Android mobile phone and other devices through the USB interface, and then processed by the software on the computer, Android mobile phone and other devices to demodulate the signal, and display the frequency spectrum, and set it to receive Bandwidth, signal recording, saving, playback and other functions. Through the SDR software, it can receive electromagnetic waves in the range of 100KHz-1.7GHz to support AM, FM (NFM, WFM), CW, DSB, LSB, and USB demodulation. It can be used to listen to short-wave single-sideband communications, FM radio, walkie-talkie calls, aviation bands, meteor monitoring ADS-B decoding radar, AIS signal reception, etc.
[Analog sub-tone and digital sub-tone can be cracked through software.
You can set up automatic search and scan.
[You can use software to crack the ID of commonly used digital walkie-talkies and demodulate the voice signal]
Technical characteristics
This receiver has a built-in 1 ppm temperature compensation crystal [TCXO]. Make the frequency more stable and accurate. Almost zero temperature drift [initial deviation of 2 ppm, temperature drift of 1 ppm] increases the internal chip heat dissipation, making the work more stable. Using the latest RTL2832U+R820T2 solution [R820T2 tuner has slightly better sensitivity than R820T, lower noise floor and higher signal-to-noise ratio. It can work more stably at frequencies around 1.5 GHz. Using the Q channel on the RTL2832U to increase the direct sampling reception for the frequency of 100KHz-24MHz. Achieve full range reception of 100KHz-1.7GHz. Support XP Win7, Win8, Win10, MAC, Android and other systems.
Equipment supporting
This software receiver is sold in the form of an integrated package, providing common software, drivers, installation instructions, and instructions for use.
