10Pcs Mfrc522 Rc-522 Antenna Rfid Ic Wireless Module for Arduino Ic Key Spi Writer Reader Ic Card Proximity Module

Compatible Audio & Video Equipment Style:Earphones & Headphones
Certification:NONE
Package:Yes
Origin:CN(Origin)
Type:Bluetooth
Bundle:Bundle 1
Model Number:wireless module

Highly integrated read and write 13.56MHz contactless communication card chip
Low-voltage & low-cost, small size of the non-contact card chip
Advanced modulation and demodulation fully support all types of 13.56MHz passive devices
14443A compatible transponder signals
Digital part processing ISO14443A frame and error detection
MFRC522 support IC series of high-speed non-contact communication & two-way data transmission rate up to 424kbit/s
Operating Current: 13-26mA/DC 3.3V
Idle Current: 10-13mA/DC 3.3V
Sleep Current: Less than 80uA
Peak Current: Less than 30mA
Operating Frequency: 13.56MHz
Supported card types: IC1 S50, IC1 S70, IC UltraLight, IC Pro, IC Desfire
Environmental Operating Temperature: -20-80 degrees Celsius
Environmental Storage Temperature: -40-85 degrees Celsius
Relative humidity: relative humidity 5% -95%
Data transfer rate: maximum 10Mbit/s
Self-calibrated RF to ensure optimal performance under all operating
Size: RFID-RC522 Module: 3.9 x 6 cm The Standard S50 Blank Card: 8.5 x 5.4 cm
Diameter of S50 special-shaped card: 3.1(max)
Colour: blue
Material: plastic
Size: 59.9x39.7mm
Package Contents:

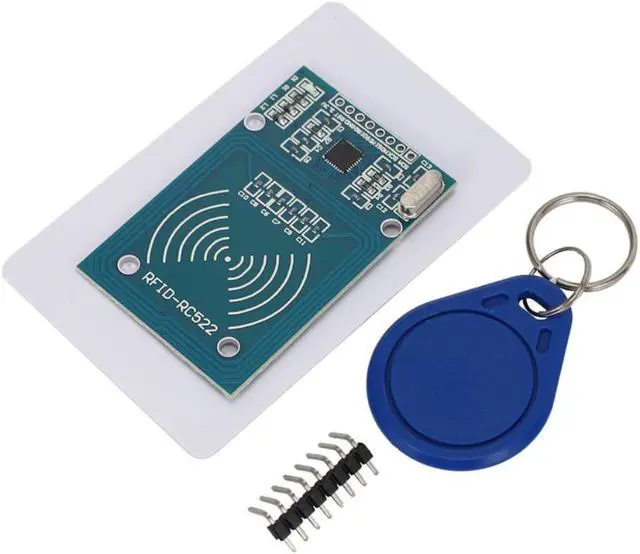

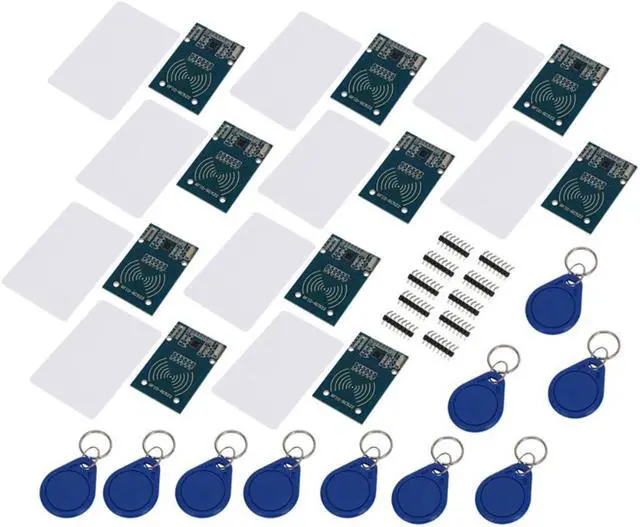

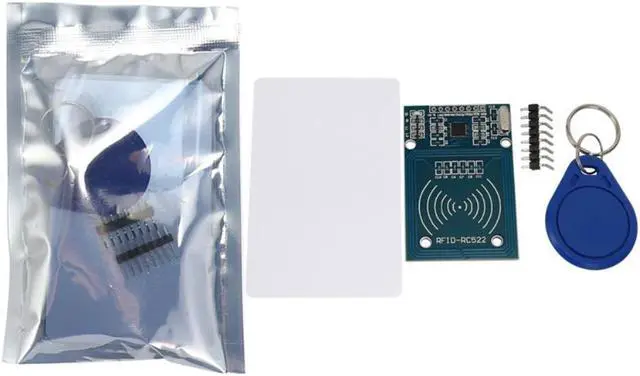

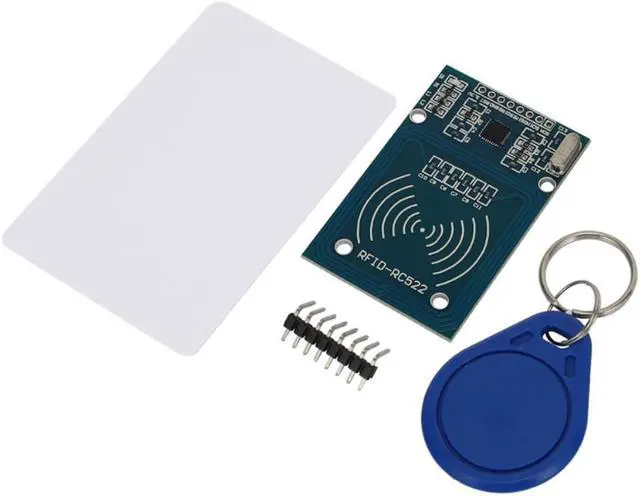

10 sets * induction modules (1 set: 1 PCB board + 1 IC card + 1 sensor key + 1 straight needle + 1 curved needle)
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
