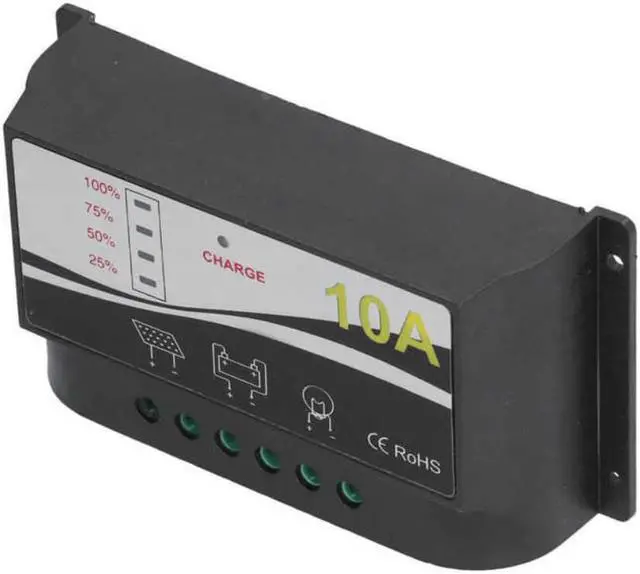

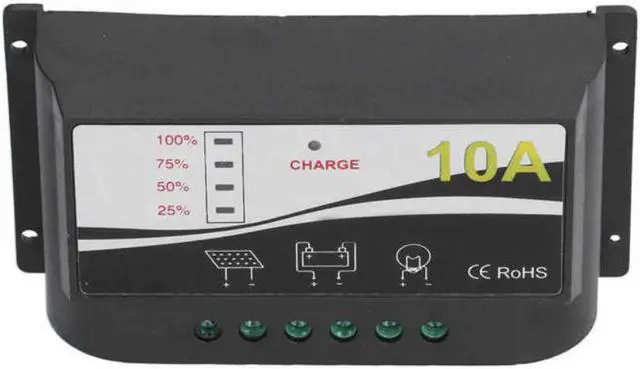

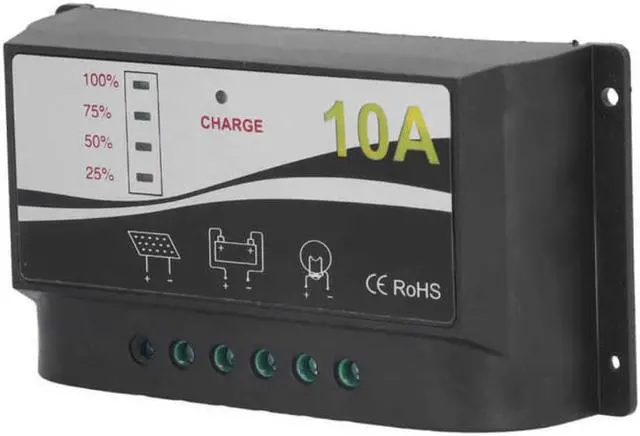

Solar Charge Controller Regulator Durable ABS Housing Solar Panel Charger Discharge Regulator 12V 24V

Certification:NONE
Origin:CN(Origin)
Model Number:Solar Charge Controller
Application:Charger Controller

Solar Charge Controller Regulator Durable ABS Housing Solar Panel Charger Discharge Regulator 12V 24V
Feature:
1. This solar Charge controller helps you automatically manage the work of solar panels and batteries with a builtin industrial microcontroller.
2. Equipped with overcurrent protection, short circuit protection, reverse connection protection, low voltage, overcharge protection, 3 level PWM charging management.
3. This solar charge controller will help you safely improve system efficiency and extend life.
4. The charge controller should connect the first, then the solar panel, and finally the load! The disassembly sequence is contrary to the wiring order
5. Waterproof and moistureproof to avoid damage to components or short circuit fault. The connection must be strong to ensure good contact.
Specification:
Item Type: Solar Charge and Discharge Controller
Material: ABS
Rated Voltage: 12V/24V (Automatic Voltage Identification)
Maximum Load Current: 10A
Solar Panel Input Voltage: 12V-20V / 20V-40V
When the length is less than or equal to 1m, the voltage drop of the charging circuit is less than 0.55V
When the length is less than or equal to 1m, the voltage drop of the circuit is less than 0.05V
Full Disconnect: 13.7V-14.4V / 27.4V-28.8V
Undervoltage Disconnect: 10.5V-11V / 21V-22V
Temperature Compensation: -3mV / ° C /cell
No-load Loss: 10mA
Maximum Wire Size: 2.5mm²
Ambient Temperature: -25-+55
Package List:
1 x Controller
1 x Description
