MFRC-522 RC522 RFID NFC Reader RF IC Card Inductive Sensor Module For Arduino Module + S50 NFC Card + NFC Key Ring
- MFRC-522 RC522 RFID NFC Reader RF IC Card Inductive Sensor Module For Arduino Module + S50 NFC Card + NFC Key Ring
Overview
Specs
Reviews
Unit Type:piece
Package Weight:0.03kg (0.07lb.)
Package Size:10cm x 10cm x 2cm (3.94in x 3.94in x 0.79in)
Description
:
Current :13-26mA / DC 3.3V
Idle Current :10-13mA / DC 3.3V
Sleep current:
Peak current:
Operating Frequency: 13.56MHz
Supported card types: S50, S70, UltraLight, Pro, Desfire
Product Physical Characteristics: Dimensions: 40mm × 60mm
Environmental Operating temperature: -20-80 degrees Celsius
Environment Storage temperature: -40-85 degrees Celsius
Relative Humidity: 5% -95%
Data Transfer Rate: Max. 10Mbit / s

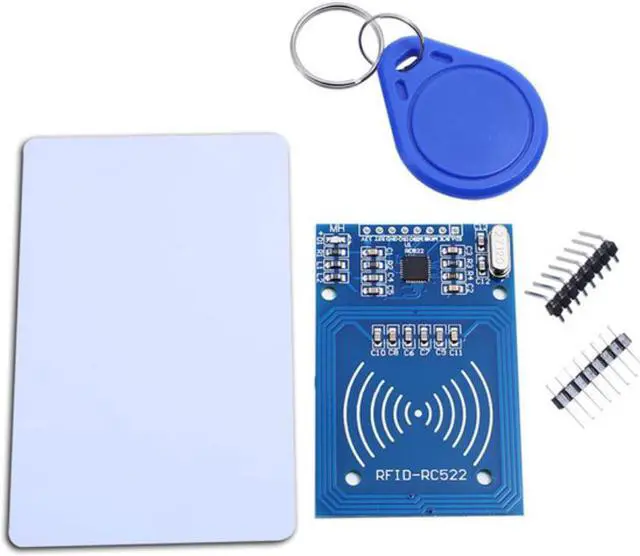

Package Included:
1 X RFID-RC522 module one;
1 X Standard S50 Blank Card;
1 X S50 shaped cards one (as shown keychain shape);
1 X Straight row pin
1 X Curved row pin
Package Weight:0.03kg (0.07lb.)
Package Size:10cm x 10cm x 2cm (3.94in x 3.94in x 0.79in)
Description
:
Current :13-26mA / DC 3.3V
Idle Current :10-13mA / DC 3.3V
Sleep current:
Peak current:
Operating Frequency: 13.56MHz
Supported card types: S50, S70, UltraLight, Pro, Desfire
Product Physical Characteristics: Dimensions: 40mm × 60mm
Environmental Operating temperature: -20-80 degrees Celsius
Environment Storage temperature: -40-85 degrees Celsius
Relative Humidity: 5% -95%
Data Transfer Rate: Max. 10Mbit / s
Package Included:
1 X RFID-RC522 module one;
1 X Standard S50 Blank Card;
1 X S50 shaped cards one (as shown keychain shape);
1 X Straight row pin
1 X Curved row pin
