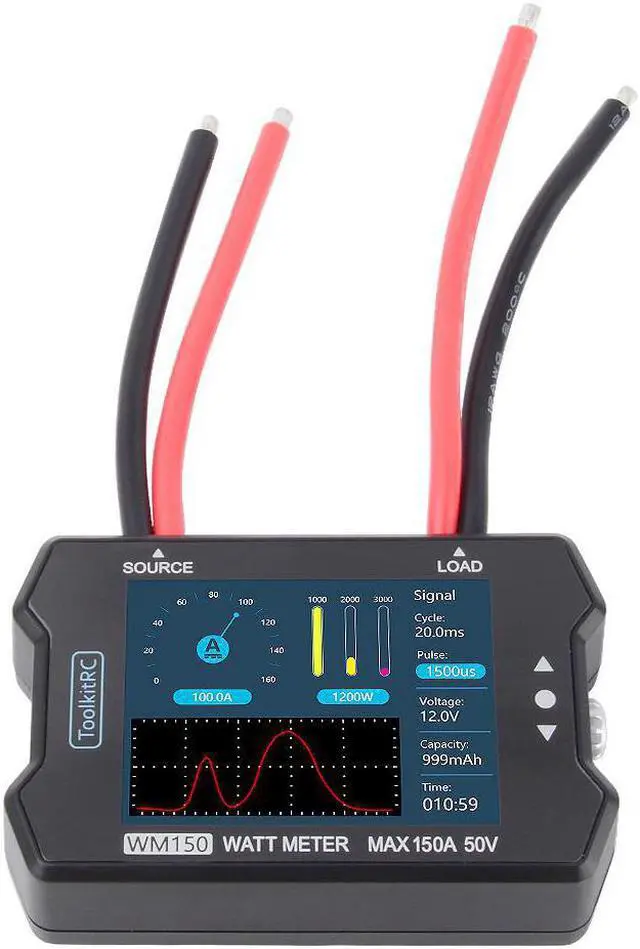

ToolkitRC WM150 150A 50V Watt Meter Power Analyzer LCD Display Power Voltage Current Tester PWM Output for RC FPV Drone

Origin:CN(Origin)
Material:Metal
Recommend Age:18+
Tool Supplies:50V Watt Meter Power
Upgrade Parts/Accessories:Voltage Current Tester
RC Parts & Accs:Motor Components
Size:80*54*23mm
Use:Vehicles & Remote Control Toys
Quantity:1
Technical parameters:Value 2
Model Number:ToolkitRC WM150
Remote Control Peripherals/Devices:Charging Units
For Vehicle Type:Airplanes
Four-wheel Drive Attributes:Assemblage
Wheelbase:Screws

Brand: ToolkitRC
Item: WM150 Watt Meter
Input Voltage: 1-50V
Current(Max): 150A (precision:10mA)
USB: 5.0V@1A ( USB3.0 firmware update)
Output: PWM 1000-2000us@50Hz

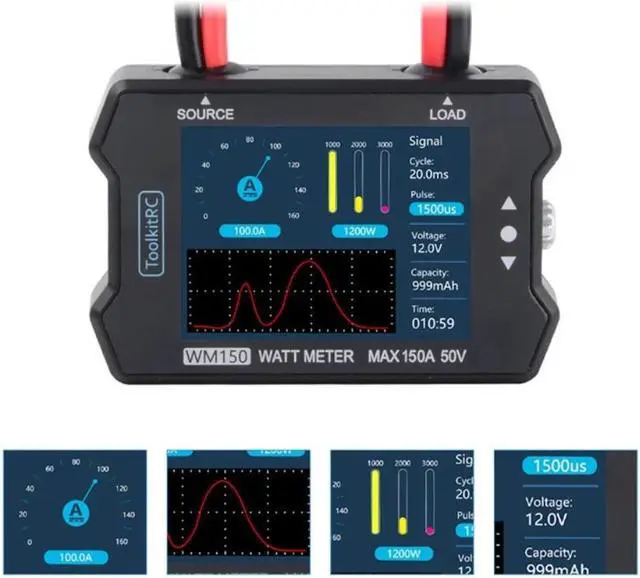

Display: TFT 2.4" LCD Screen(320*240 resolution)
Product Size: 80*54*23mm Approx.
Packing Size: 87*87*28mm Approx.
Net Weight(Approx): 120g
Gross Weight(Approx): 140g
Using Steps:
Connect 1-50V power supply, when the voltage is lower than 6V, need to use USB 5V to provide power;
After power-on, the LCD screen displays the logo and continues 2 seconds, with the starting music;
Adjust the button if the data in the displaying screen are not in minimum data position.
Features:
- ToolkitRC WM150 is a Watt Meter, which is capable to test voltage, power, current data of the electric equipment, like servo, ESC, , etc.
- 1-50V power supply, the max current is up to 150A, the precision is accurate to 10mA.
- Support PWM signal, 1us precision, the pulse width is changable by adjusting the button.
- Automaticly to change the unit of the capacity, when it is lower than 1A, the unit-display is MA, when it is higher than 1A, the unit-dispaly is changed to A.
- The watt meter is also supporting to display working hours.
- USB firmware update, easy to operate.

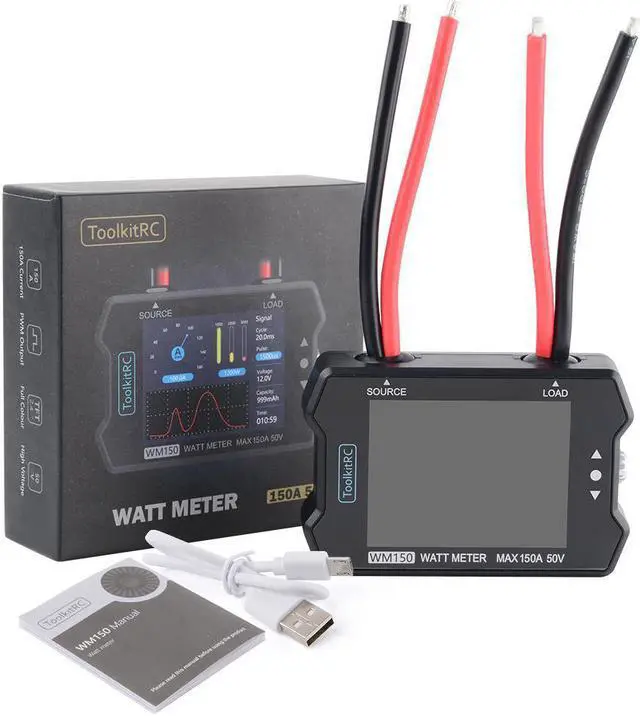

Package:
1* ToolkitRC WM150 Watt Meter
1* USB Wire
1* Manual
