8 channel GL09-B 3G GSM SMS Alarm System Security System Suitable for operated portable Alert

Certification:CE
Origin:CN(Origin)

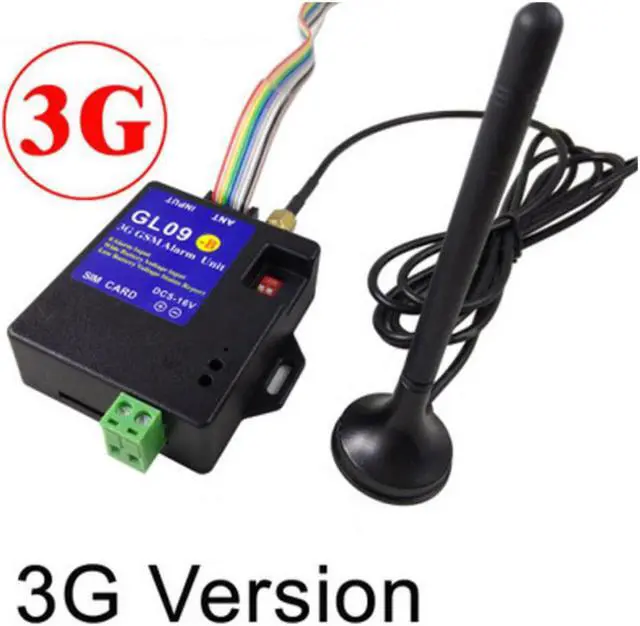

GL09-B Eight channel Super designed 3G GSM SMS Alarm box Home security system
Most suitable for portable powered project
1. Totally compatible with GA09 gsm alarm box
2. Power supply voltage low alarm
3. Wide power voltage input from DC5V to DC16V
4. The GL09-B is a operated 3G GSM module used to send an alarm notification after a triggered input.
5. When the power input batteries need to be replaced, the GL09-B sends a low SMS text message to the first telephone number (administrator).
The low voltage limit can be preset by the user.

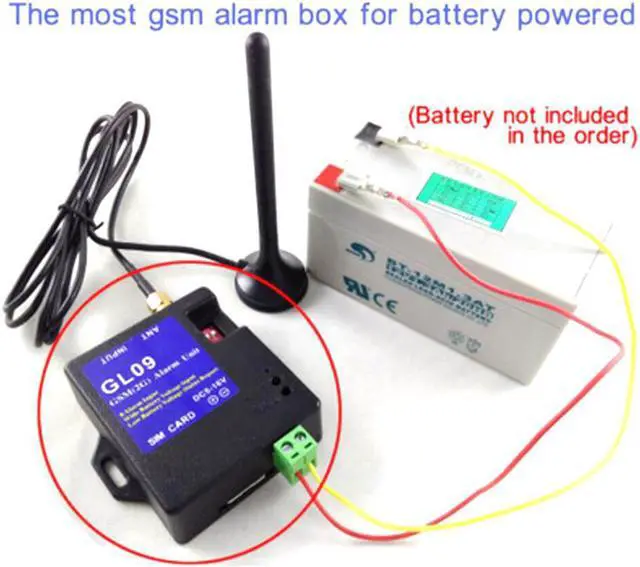

DC5V-16V Power input (Can use the DC6V or DC12V Lead-acid batteries)
SMS alarm message would be sent to maximum 6 preset mobile phones when any alarm input triggered
Any input (From S1 to S8) is shorted to GND,then will trigger the alarm
Alarm SMS can be customized with your Text
Very smart and slim designed gsm box , size only 66mm*62mm and only 22mm height. can be easily mounted to other target system board to add the gsm alarm features.
We can customized design the 3G and GSM Alarm box according to your requirments with of charge
Support Only SMS text alarm or Only phone calling alarm or Both alar
Totally 8 alarm input and every input can be defined as NO or NC type input
Every input can be Armed or Disarmed seperately with SMS comman
The GL09-B is a operated 3G module used to send an alarm notification after a triggered input.
When the power input batteries need to be replaced, the GL09-B sends a low SMS text message to the first telephone number (administrator)
Packing list:
One pcs GL09-B alarm box with antenna
One pcs cable with connector
(No any sensor, no sim card, no included in the parcel )
GL09-B Description:

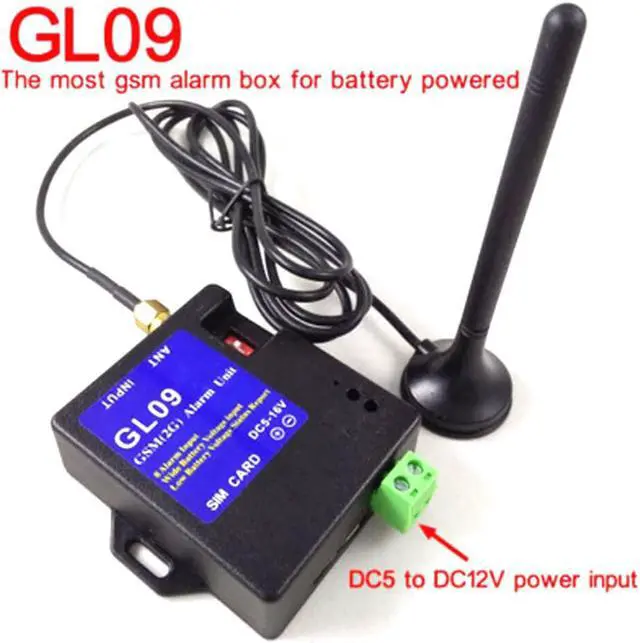

Green terminal for DC5V-16V Power input
t
1.
are not included in the order packing list
.You can select the DC5V to DC16V . then you setup the alarm voltage limit, then when when the votage dropped below the limit,then will send the alert SMS to the first SMS alarm number. then you can go to change the easily.
2. When normal working,you can switch both DIP switch to ON postion,then device will go to "power-save" working status, then only when alarm happen, it will go back to awake and send the alarm SMS. This will save the greatly.
