$79.35
Ships from China.
Meet Your Seller

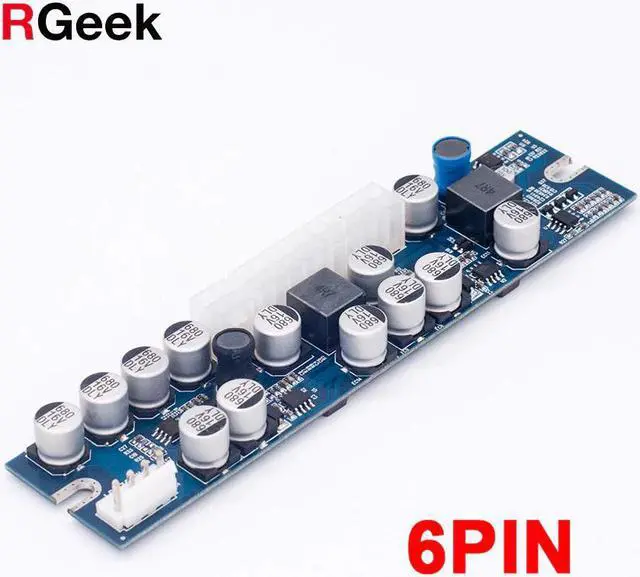

PCI-E 6pin 300W Input DC-ATX 24pin Power Supply Module Swithc Pico PSU Auto Mini ITX High DC-ATX power module ITX For Mining
- PCI-E 6pin 300W Input DC-ATX 24pin Power Supply Module Swithc Pico PSU Auto Mini ITX High DC-ATX power module ITX For Mining
+
+
Overview
Reviews
80 PLUS Certification:Other Certification
Certification:None
Origin:CN(Origin)
Rating Power:301W - 400W
Output:+3.30V, +5.00VSB, +5.00V, +12.00V, -12.00V
Model Number:RGEEK-300L
Package:Yes
Application:Server
Graphics Card 12V Pin Number:0
Input Voltage:12V DC
Interface Type:20 + 4Pin
PFC Type:Active
CPU Power Connector:4 pin
Modular:Full Modular
Number of SATA Ports:1
D-type Bus Number:1
DC input connector:PCI-E 6pin
12V 300W DC Power Supply module
Electrical Specifications of RGEEK-300L
High light
300 Watt Output 12 Volt DC Input
Fanless design, 100% silent
Solid Polymer Caps on the PCBA, Long life.
Perfect DC PSU for mini ITX Motherboards

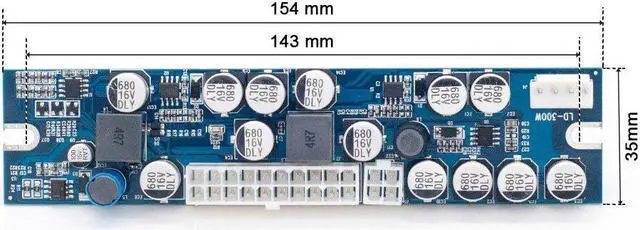

Size (L*W*H): 154mm*35mm*10mm(approx)

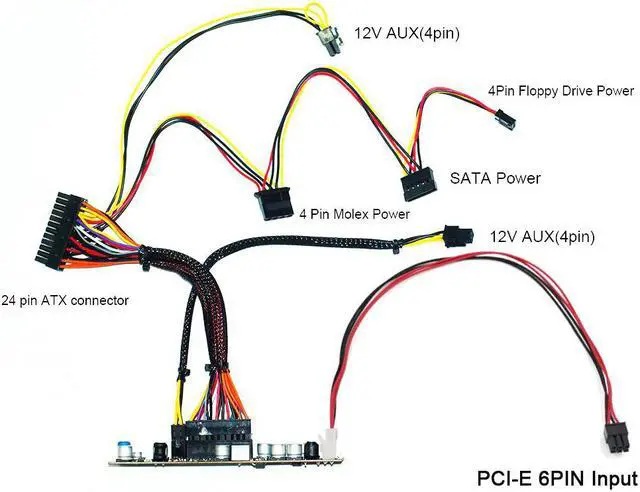

How to connect the cables
Package includes:
1 x Power Supply Module (with 3 cables)
Certification:None
Origin:CN(Origin)
Rating Power:301W - 400W
Output:+3.30V, +5.00VSB, +5.00V, +12.00V, -12.00V
Model Number:RGEEK-300L
Package:Yes
Application:Server
Graphics Card 12V Pin Number:0
Input Voltage:12V DC
Interface Type:20 + 4Pin
PFC Type:Active
CPU Power Connector:4 pin
Modular:Full Modular
Number of SATA Ports:1
D-type Bus Number:1
DC input connector:PCI-E 6pin
12V 300W DC Power Supply module
Electrical Specifications of RGEEK-300L
High light
300 Watt Output 12 Volt DC Input
Fanless design, 100% silent
Solid Polymer Caps on the PCBA, Long life.
Perfect DC PSU for mini ITX Motherboards
Size (L*W*H): 154mm*35mm*10mm(approx)
How to connect the cables
Package includes:
1 x Power Supply Module (with 3 cables)
