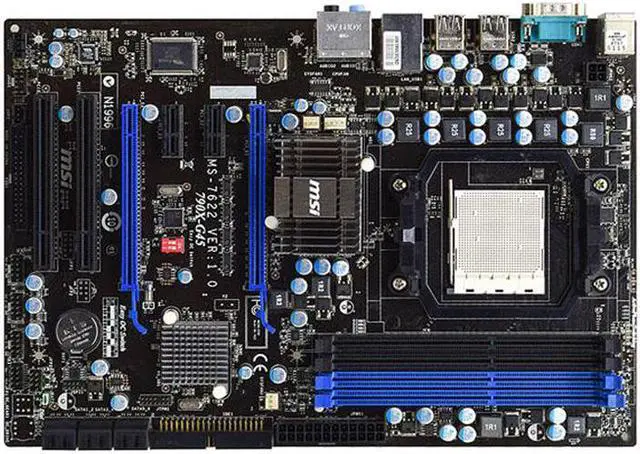

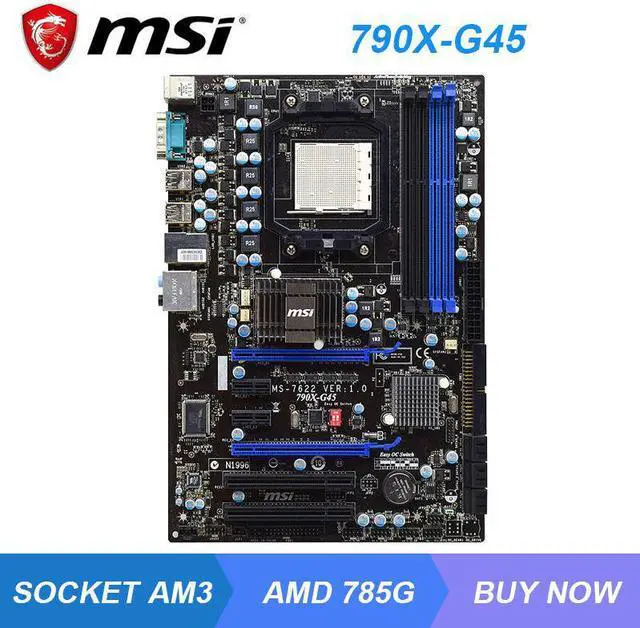

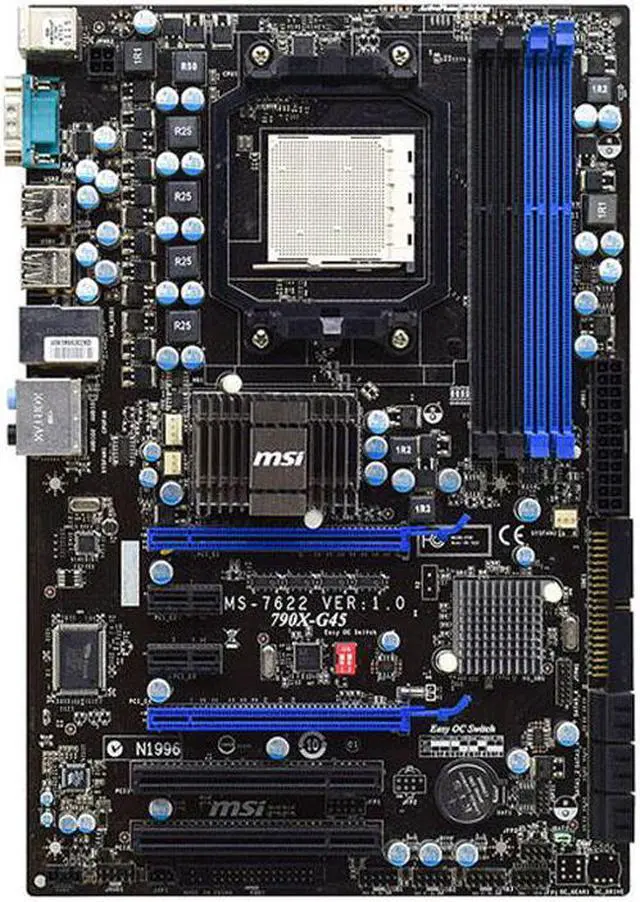

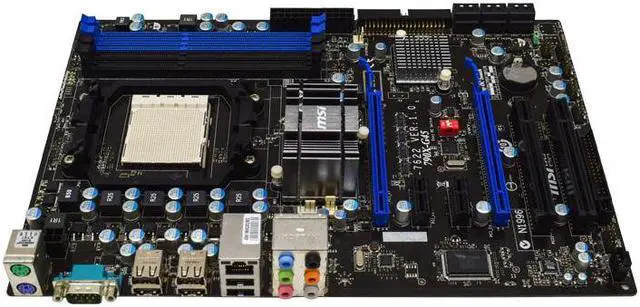

MSI 790X-G45 Socket AM3 AMD 790X PC Motherboard DDR3 16GB PCI-E X16 12×USB2.0 ATX UEFI BIOS Phenom II/Athlon II CPUS

Quality Certification:ce
Chipset:AMD
Socket Type:Socket AM3
Storage Interface Type:U.2
Onboard LAN:1x RJ45
Package:No
Model Number:790X-G45
Application:Desktop
With CPU:No
Special Function:None
Maximum Ram Capacity:16 GB
Chipset Manufacturer:AMD
Back I/O Ports:VGA(D-Sub)
Support Memory Type:DDR3
Usage Scenario:Audio & Video
Number of PCI:0
PCI - E standards:PCI - E 3.0
Origin:CN(Origin)
Number of PCIe x 16:2
Memory channel:Double
Form Factor:CeB
Launch Date:2004
Number of PCIe x 1:2
Certification:WEEE

790X-G45 Parameters
Motherboard chip
Integrated chip sound card/network card
Main chipset AMD 790X
Chipset description Using AMD 790X+SB710 chipset
Display chip none
Audio chip integrated 8-channel audio chip
Network card chip onboard gigabit network card
Processor specifications
CPU type Phenom II/Athlon II
CPU socket Socket AM3
CPU description Support AMD Socket AM3 interface processor
Memory specifications
Memory type 4×DDR3 DIMM
Maximum memory capacity 16GB
Memory description Support dual-channel DDR3 2133(OC)/1800(OC)/1600(OC)/1333/1066/800 memory
Storage expansion
PCI-E standard PCI-E 2.0 standard
PCI-E slot 2 × PCI-E X16 graphics slot
2×PCI-E X1 slot
PCI slot 2 × PCI slot
Storage interface 6×SATA II interface
I/O interface
USB interface 12×USB2.0 interface
Video interface Audio interface
Power connector One 4-pin, one 24-pin power connector
Other interfaces
1×RJ45 network interface, audio interface, PS/2 mouse, PS/2 keyboard interface
Board type
Motherboard board type ATX board type
Dimensions 30.5×21.0cm
