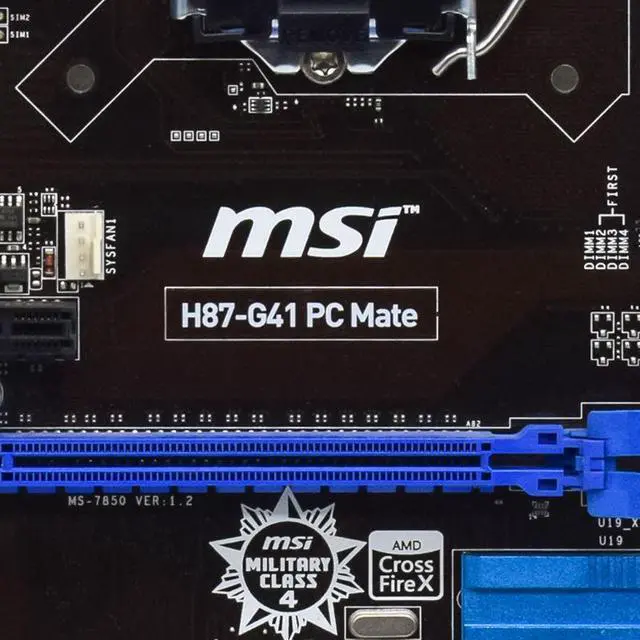

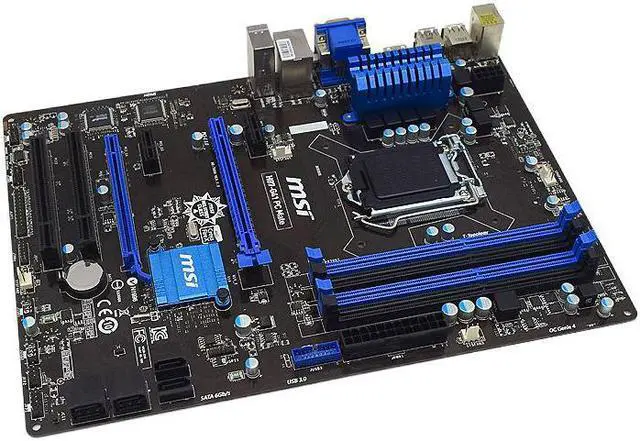

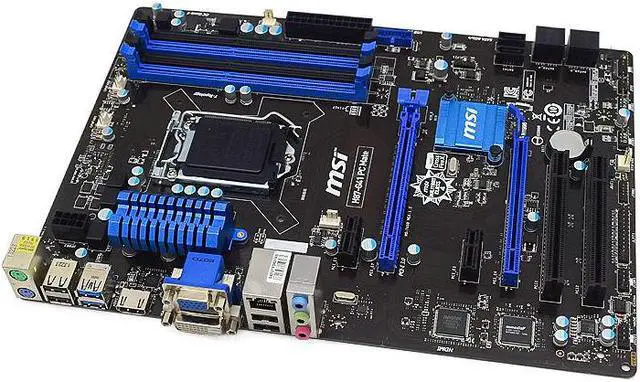

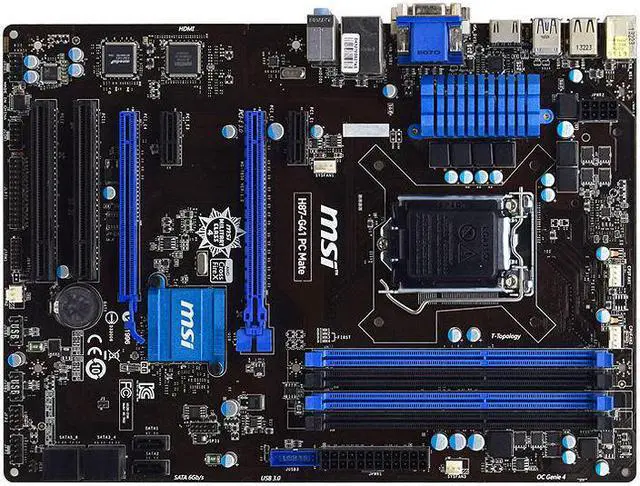

MSI H87-G41 PC Mate LGA 1150 Intel H87 Desktop PC Motherboard DDR3 32GB Core i7-4770K i5-4670K CPUS SATA3 USB3.0 PCI-E 3.0 ATX

Quality Certification:ce
Chipset:Intel H87
Socket Type:LGA 1150
Storage Interface Type:SATA
Onboard LAN:1x RJ45
Package:No
Model Number:H87-G41 PC Mate
Application:Desktop
With CPU:No
Special Function:None
Maximum Ram Capacity:32 GB
Chipset Manufacturer:Intel
Back I/O Ports:VGA(D-Sub)
Support Memory Type:DDR3
Usage Scenario:Audio & Video
Number of PCI:2
PCI - E standards:PCI - E 3.0
Origin:CN(Origin)
Number of PCIe x 16:2
Memory channel:Double
Form Factor:CeB
Number of PCIe x 1:2
Certification:CE

H87-G41 PC Mate Parameters
CPU
• 4th Generation Intel® Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® processors for LGA 1150 socket
Chipset
• Intel® H87 Express Chipset
Main Memory
• Support four DDR3 DIMMs 1066/1333/1600 MHz, up to 32GB Max
- Supports Dual-Channel mode
- Supports non-ECC, un-buffered memory
- Supports Intel® Extreme Memory Profile (XMP)
Slots
• 1 x PCIe 3.0 x16 slot
• 1 x PCIe 2.0 x16 slot
- PCI_E4 supports up to PCIe 2.0 x4 speed
• 2 x PCIe 2.0 x1 slots
• 2 x PCI slots
On-Board SATA
• SATAIII controller integrated in Intel® H87 chipset
- Up to 6Gb/s transfer speed.
- Supports six SATAIII ports (SATA1~6) by H87
- Supports Intel Smart Response Technology, Intel® Rapid Start Technology and Intel® Smart Connect Technology
• RAID
- SATA1~6 support Intel® Rapid Storage Technology enterprise (AHCI/ RAID 0/ 1/ 5/ 10) by Intel® H87
USB
• Intel® H87 Express Chipset
- 4 x USB 3.0 ports (2 ports on the back panel, 2 ports available through the internal USB connectors)
- 8 x USB 2.0 ports (4 ports on the back panel, 4 ports available through the internal USB connectors)
