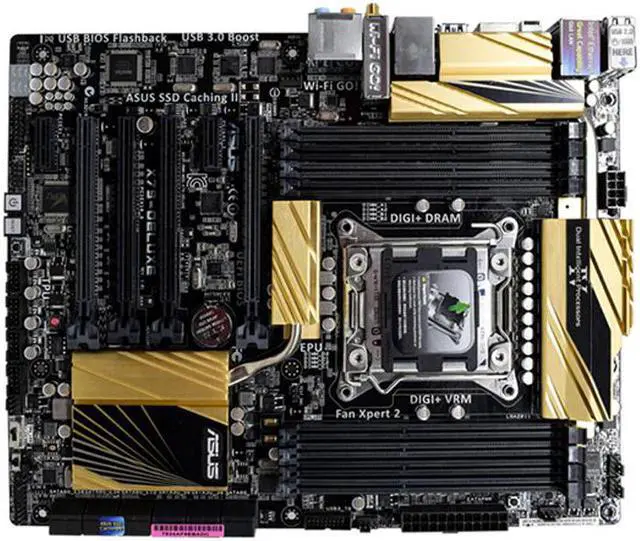

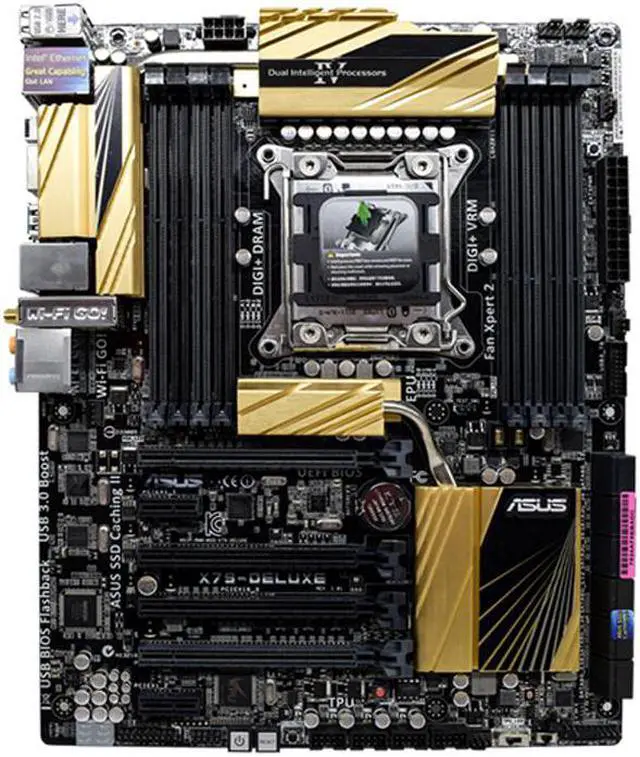

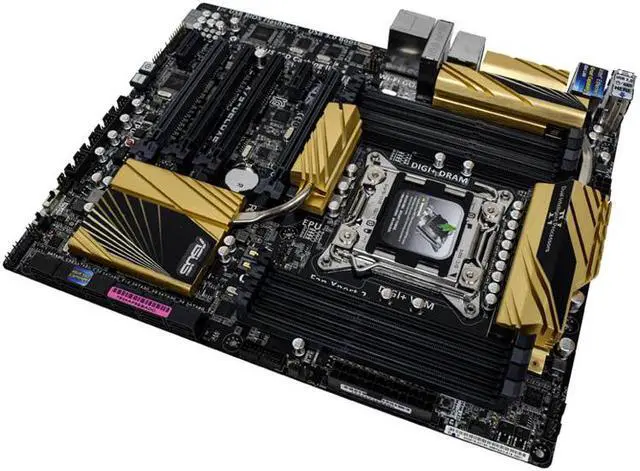

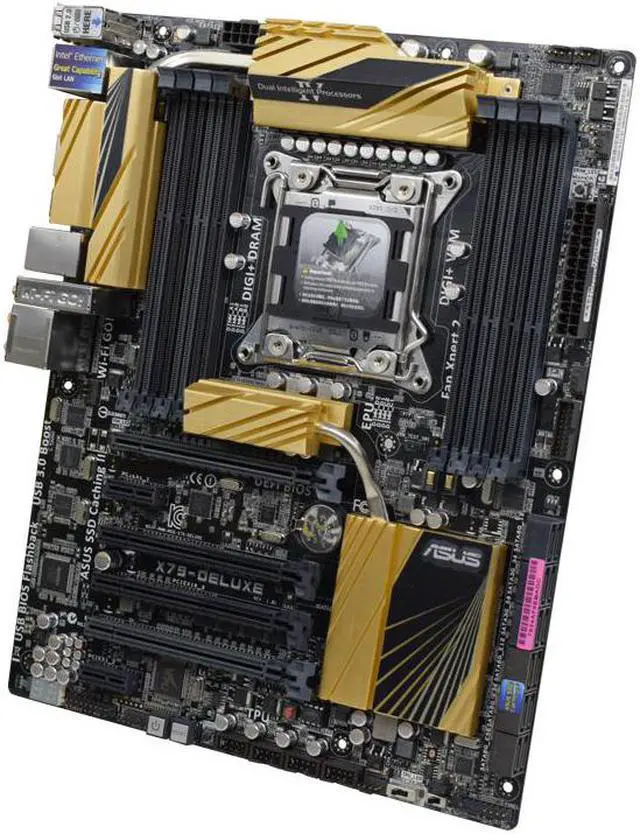

Asus X79-DELUXE LGA 2011 Intel X79 Mining Motherboard DDR3 1333 Memory PCI-E 3.0 Support Kit Xeon E5-2650 v2 Processor X79 set

Quality Certification:ce
Chipset:Intel X79
Socket Type:LGA 2011
Storage Interface Type:SATA 2
Onboard LAN:2x RJ45
Package:No
Model Number:X79-DELUX
Application:Desktop
With CPU:No
Special Function:None
Maximum Ram Capacity:64 GB
Chipset Manufacturer:Intel
Back I/O Ports:2x RJ45
Support Memory Type:DDR3
Usage Scenario:Gaming
Number of PCI:1
PCI - E standards:PCI - E 3.0
Origin:CN(Origin)
Number of PCIe x 16:3
Memory channel:Four
Form Factor:CeB
Number of PCIe x 1:2
Certification:CE

X79-DELUXE Parameters
Motherboard chip
Integrated chip sound card/network card
Main chipset Intel X79
Chipset description Using Intel X79 chipset
Display chip CPU built-in display chip (requires CPU support)
Audio chip integrated Realtek ALC1150 8-channel audio chip
Network card chip Onboard Realtek RTL8111GR Gigabit network card, Intel 82579V Gigabit network card
Processor specifications
CPU type Core i7
CPU socket LGA 2011
CPU description Support Intel 32nm processor
Memory specifications
Memory type 8×DDR3 DIMM
Maximum memory capacity 64GB
Memory description Supports four-channel DDR3 2800 (overclocking)/2400(overclocking)/2133(overclocking)/1866/1600/1333/1066MHz memory
Storage expansion
PCI-E standard PCI-E 3.0
PCI-E slot 3×PCI-E X16 graphics card slot, 2×PCI-E X1 slot
Storage interface 2×SATA III interface, 4×SATA II interface
I/O interface
USB interface 8 × USB3.0 interface (2 built-in +6 backplane), 12 × USB2.0 interface (8 built-in +4 backplane)
Power connector One 8-pin, one 24-pin power connector
Other interfaces
2×RJ45 network interface, 5×audio interface
Board type
Motherboard board type ATX board type
Dimensions 30.5×24.4cm
