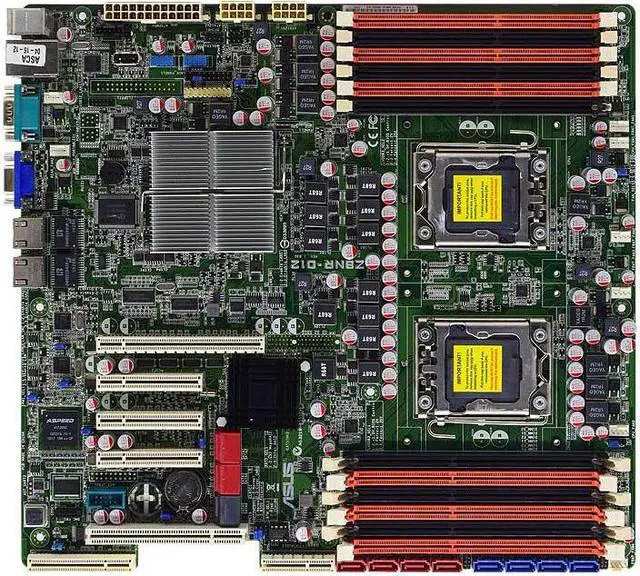

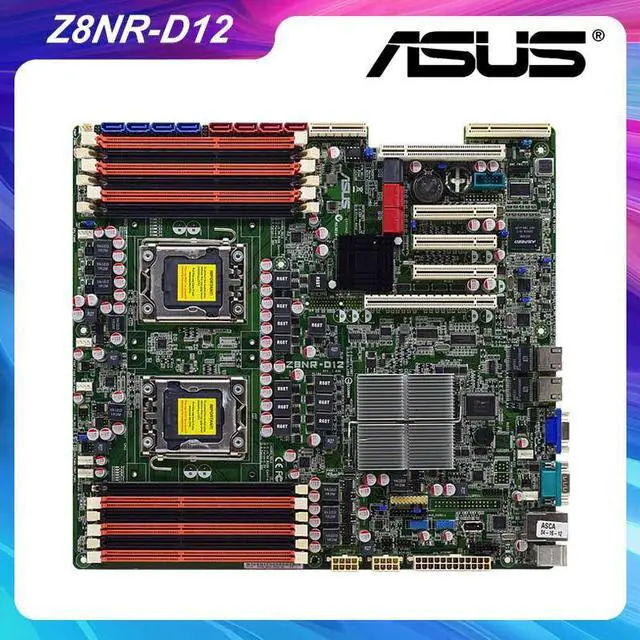

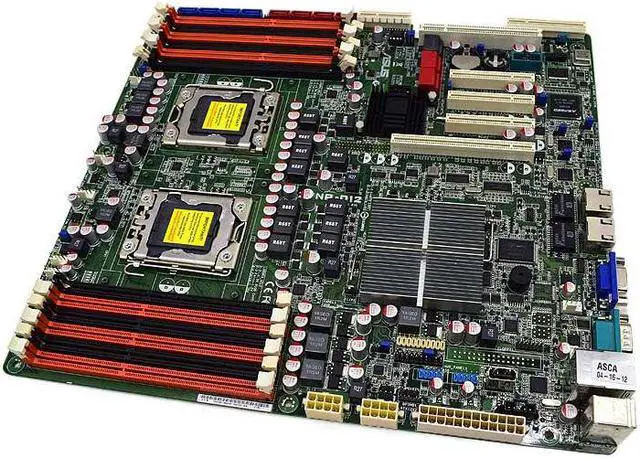

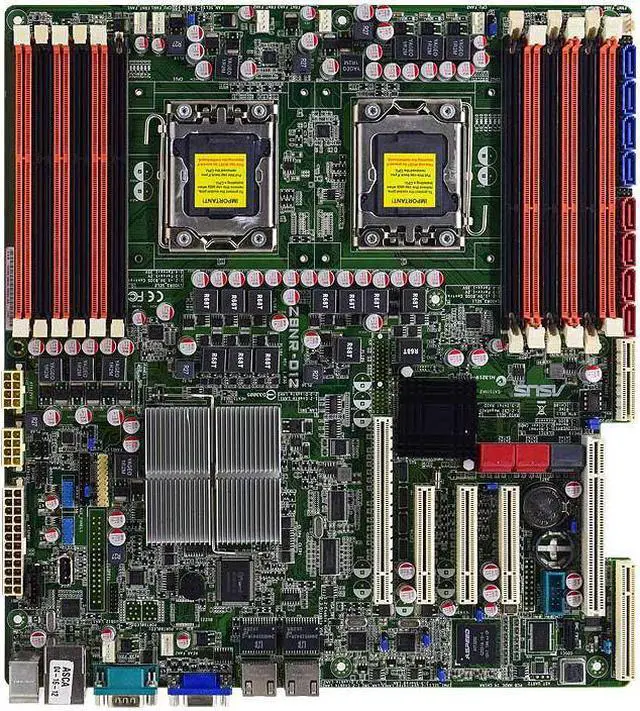

ASUS Z8NR-D12 Socket LGA 1366 Intel X58 Desktop Server Motherboard DDR3 96GB SATA 2.0 USB2.0 Quad-Core Intel Xeon X5560 Cpus

Quality Certification:ce
Chipset:Intel X58
Socket Type:LGA 1366
Storage Interface Type:SATA
Onboard LAN:1x RJ45
Package:No
Model Number:Z8NR-D12
Application:Desktop
With CPU:No
Special Function:None
Maximum Ram Capacity:64 GB
Chipset Manufacturer:Intel
Back I/O Ports:1x RJ45
Support Memory Type:DDR3
Usage Scenario:Gaming
Number of PCI:0
PCI - E standards:PCI - E 3.0
Origin:CN(Origin)
Number of PCIe x 8:2
Number of PCIe x 16:1
Memory channel:Double
Form Factor:CeB
Certification:CE

Z8NR-D12 Parameters
Motherboard chip
Integrated chip graphics card/network card
Main chipset Intel 5000
Chip manufacturer Intel
Chipset description uses Intel 5500+ICH10R
Graphics chip integrated Aspeed AST2050 display core
Network chip board Intel 82574L+1*Mgmt LAN dual Gigabit network card
CPU specifications
Applicable platform Intel platform
CPU type W5500/X5500/E5500/L5500
CPU description Supports quad-core Intel Xeon W5500 series processors (130W)
Supports quad-core Intel Xeon X5500 series processors (95W)
Supports quad-core Intel Xeon E5500 series processors (80W)
Support quad-core Intel Xeon L5500 series processors (60W/38W)
CPU socket Socket 1366
Support CPU number 2
Memory specifications
Memory type DDR3
Memory description: Support DDR3 800/1066/1333 memory, up to 96GB
Expansion slot
SATA interface 6 SATA 2.0 interfaces
I/O interface
USB interface 8 USB2.0 interfaces
PS/2 interface PS/2 mouse, PS/2 keyboard interface
Other parameters
Power socket two eight-pin, one 24-pin power connector
