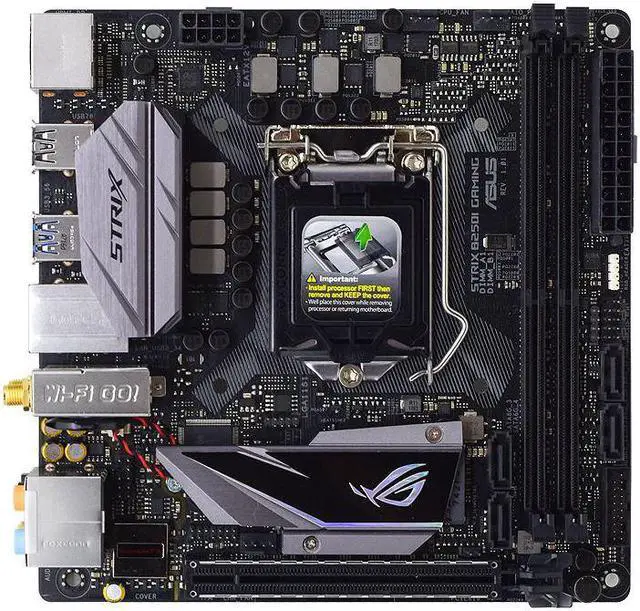

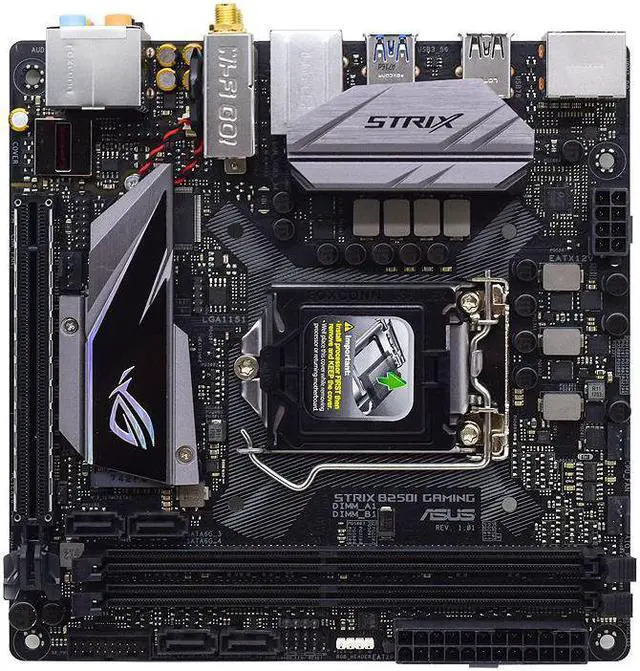

ASUS STRIX B250I GAMING Mini ITX Motherboard Intel Core i7 7700K CPU LGA 1151 Intel B250 DDR4 32GB PCI-E 3.0 2×M.2 SATA3 USB3.0

Quality Certification:ce
Chipset:Intel B250
Socket Type:LGA 1151
Storage Interface Type:SATA 3
Onboard LAN:1x RJ45
Package:No
Model Number:STRIX B250I GAMING
Application:Desktop
With CPU:No
Special Function:None
Maximum Ram Capacity:32 GB
Chipset Manufacturer:Intel
Back I/O Ports:PS/2
Support Memory Type:DDR4
Usage Scenario:Gaming
Number of PCI:0
PCI - E standards:PCI - E 3.0
Origin:CN(Origin)
Number of PCIe x 16:1
Memory channel:Double
Form Factor:CeB
Certification:CE
Type 1:Mining
Type 2:Motherboard
Type 3:Mining Motherboard
Type 4:Kit Intel
Type 5:Intel Core i7
Type 6:Kit Intel Core i7
Type 7:i7 7700K
Type 8:Intel Core i7 7700k CPU

STRIX B250I GAMING Parameters
Motherboard chip
Integrated chip sound card/network card
Main chipset Intel B250
Chipset description Using Intel B250 chipset
Display chip CPU built-in display chip (requires CPU support)
Audio chip integrated ROG SupremeFX ALC1220A 8-channel audio chip
Network card chip onboard Intel I219V Gigabit network card
Processor specifications
CPU type 7th/sixth generation Core i7/i5/i3/Pentium/Celeron
CPU socket LGA 1151
CPU description Support Intel 14nm processor
Memory specifications
Memory type 2×DDR4 DIMM
Maximum memory capacity 32GB
Memory description Support dual-channel DDR4 2400/2133MHz memory
Storage expansion
PCI-E standard PCI-E 3.0
PCI-E slot 1×PCI-E X16 graphics slot
Storage interface 2×M.2 interface, 4×SATA III interface
I/O interface
USB interface 6 × USB3.0 interface (2 built-in +4 backplane), 2 × USB2.0 interface (2 backplane)
Video interface 1×Display Port interface, 1×HDMI interface
Power connector One 8-pin, one 24-pin power connector
Other interfaces
1×RJ45 network interface, 1×optical interface, 5×audio interface, 1×TPM interface, 1×Aura RGB interface, 1×chassis fan interface, 1×internal speaker interface, 1×front panel interface, 1×system Panel interface, 1×AIO_ water pump interface, 1×PS/2 keyboard and mouse universal interface
Plate type
Motherboard board type Mini-ITX board type
Dimensions 17.0×17.0cm
