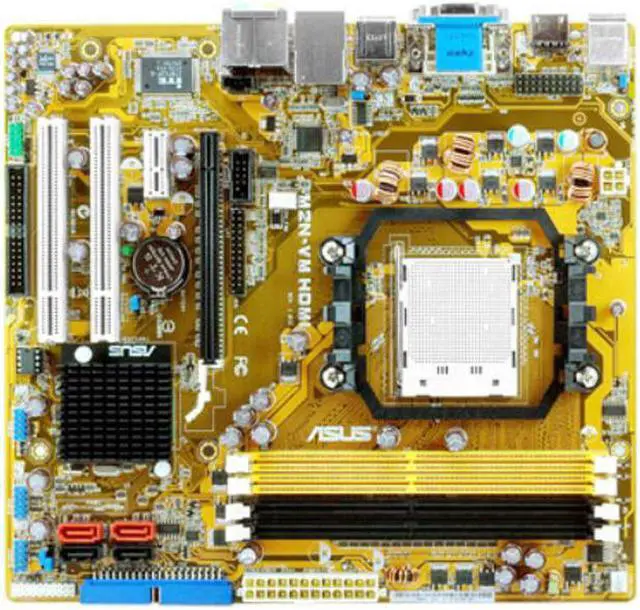

ASUS M2N-VM HDMI Socket AM2+ DDR2 Desktop Motherboard For nVIDIA nForce630A Micro-ATX Support Socket AM2/AM2+ interface

Quality Certification:ce
Chipset:AMD
Socket Type:Socket AM2+
Storage Interface Type:SATA
Onboard LAN:1x RJ45
Package:No
Model Number:M2N-VM HDMI
Application:Desktop
With CPU:No
Special Function:None
Maximum Ram Capacity:8 GB
Chipset Manufacturer:AMD
Back I/O Ports:VGA(D-Sub)
Support Memory Type:DDR2
Usage Scenario:others
Number of PCI:0
PCI - E standards:PCI - E 2.0
Origin:CN(Origin)
Memory channel:Double
Form Factor:CeB
Certification:CE

M2N-VM HDMI Parameters
Motherboard chip
Integrated chip graphics card/sound card/network card
Main chipset nVIDIA nForce630A
Chipset description Using Nvidia GeForce7050PV/nForce630a chipset
Display chip integrated Nvidia Geforce7 series graphics card
Audio chip integrated ALC883 sound card chip
Network card chip onboard gigabit network card
Processor specifications
CPU type Phenom/Athlon64/Athlon 64 X2/Athlon64 FX/Sempron
CPU socket Socket AM2+
CPU description Support Socket AM2/AM2+ interface Athlon64/Athlon64 FX/Athlon64 X2/Sempron/Phenom processor
Memory specifications
Memory type 4×DDR2 DIMM
Memory description Support dual-channel DDR2 1066/800/667/533 memory (supported when DDR2 1066 AM2+ interface CPU), up to 8GB
Storage expansion
PCI-E standard PCI-E 16X
PCI slot 2 PCI slots, 1 PCI-E 1X
Storage interface 4 SATA II interfaces, support RAID 0, RAID 1, RAID 10, RAID 5, JBOD
I/O interface
USB interface 10 USB interfaces
Video interface VGA interface/DVI interface/HDMI interface/audio interface
Power connector One four-pin, one 24-pin power connector
Other interfaces
PS/2 mouse, PS/2 keyboard interface
Board type
Motherboard type Micro ATX type
Dimensions 24.4×22.4cm
