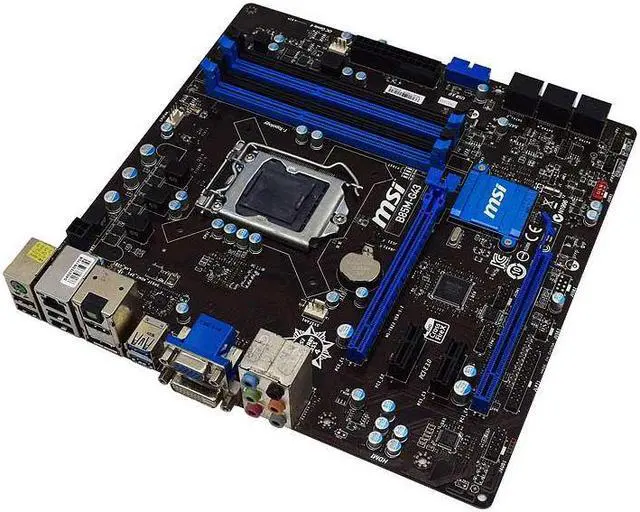

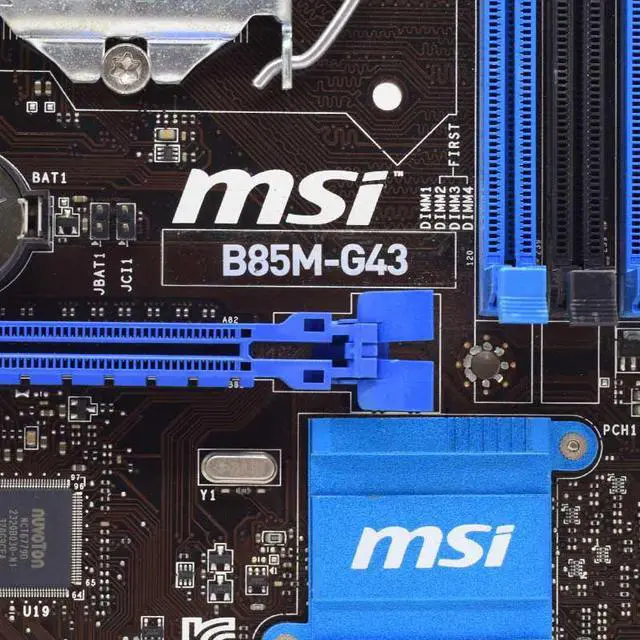

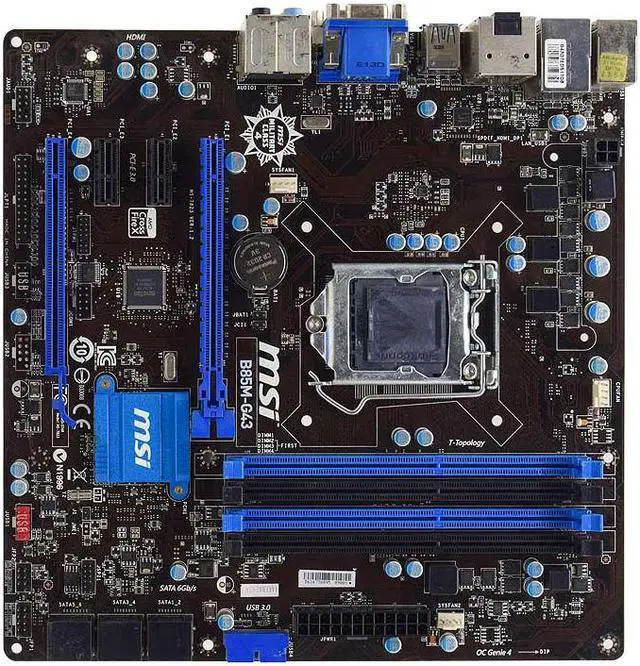

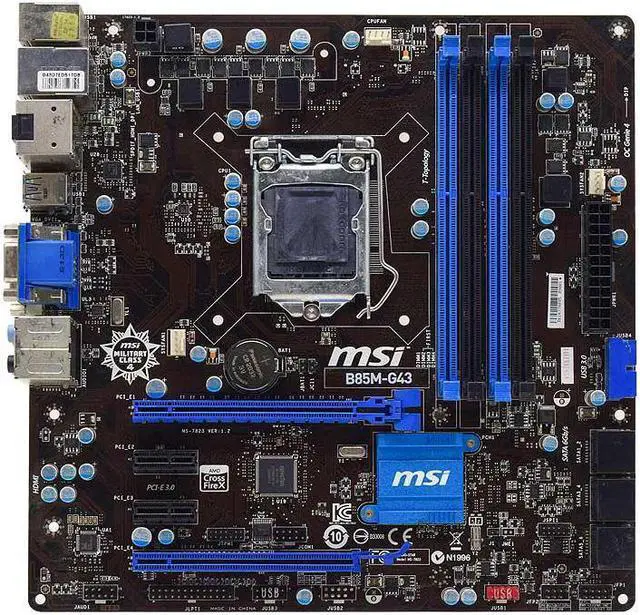

MSI B85M-G43 LGA 1150 Intel B85 Desktop PC Motherboard DDR3 32GB Kit Xeon E3 Core i5-4690K Cpus PCI-E 3.0 HDMI USB3.0 Micro ATX

Quality Certification:ce
Chipset:Intel B85
Socket Type:LGA 1150
Storage Interface Type:SATA 2
Onboard LAN:1x RJ45
Package:No
Model Number:B85M-G43
Application:Desktop
With CPU:No
Special Function:None
Maximum Ram Capacity:32 GB
Chipset Manufacturer:Intel
Back I/O Ports:VGA(D-Sub)
Support Memory Type:DDR3
Usage Scenario:Audio & Video
Number of PCI:0
PCI - E standards:PCI - E 3.0
Origin:CN(Origin)
Number of PCIe x 16:2
Memory channel:Double
Number of PCIe x 1:2
Certification:CE
Form Factor:Micro-ATX

B85M-G43 Parameters
Motherboard chip
Integrated chip sound card/network card
Main chipset Intel B85
Chipset description Using Intel B85 chipset
Display chip CPU built-in display chip (requires CPU support)
Audio chip integrated Realtek ALC892 8-channel audio chip
Network card chip Onboard Realtek RTL8111G Gigabit network card
Processor specifications
CPU type Core i7/i5/i3/Pentium/Celeron
CPU socket LGA 1150
Memory specifications
Memory type 4×DDR3 DIMM
Maximum memory capacity 32GB
Memory description Support dual-channel DDR3 1600/1333/1066MHz memory
Storage expansion
PCI-E standard PCI-E 3.0
PCI-E slot 2×PCI-E X16 graphics card slot, 2×PCI-E X1 slot
Storage interface 4×SATA III interface, 2×SATA II interface
I/O interface
USB interface 4 × USB3.0 interface (2 built-in +2 backplane), 8 × USB2.0 interface (4 built-in +4 backplane)
Video interface 1×DVI interface, 1×VGA interface, 1×Display Port interface, 1×HDMI interface
Power connector One 4-pin, one 24-pin power connector
Other interfaces
1×RJ45 network interface, 1×optical interface, audio interface, 1×PS/2 keyboard and mouse universal interface
Plate type
Motherboard board type Micro ATX board type
Dimensions 24.4×24.4cm
