Coil Number:Autotransformer
is_customized:Yes
Phase:Single
Usage:AUDIO
Introduction:

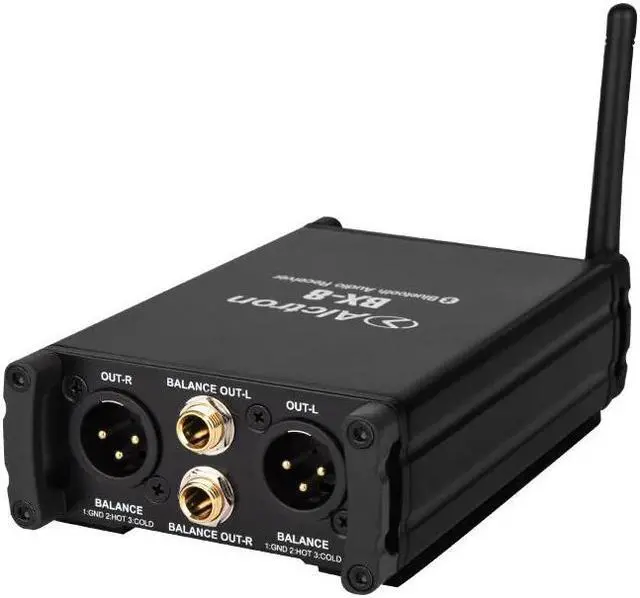

BX-8 is a Bluetooth® audio receiver with professional-grade audio outputs. It lets you add wireless stereo Bluetooth audio reception to any professional audio system. Once you pair your Bluetooth device to BX-8 you can send your device's audio signal out BX -8's balanced XLR or 1/4'' (6.35mm) outputs to your mixer, loudspeakers or amplication system. The antenna makes the transmission more far and applies in various occasions.
Specification
BX-8 Bluetooth receiver
Version: Bluetooth 4.1
Power: 5V DC
Stand by current: <50uA
Working current: =30mA
Temperature range: -40°C±80°C
Wireless transmission range: 10M
Sensitivity: -80dBm<±0.1% BER
Frequency response: 2.4Ghz-2.480Ghz
S/N ratio: =75dB
Distortion: =0.1%
Net weight: 345g
Size: 147*40*90mm
