$99.00
Ships from China.
Meet Your Seller

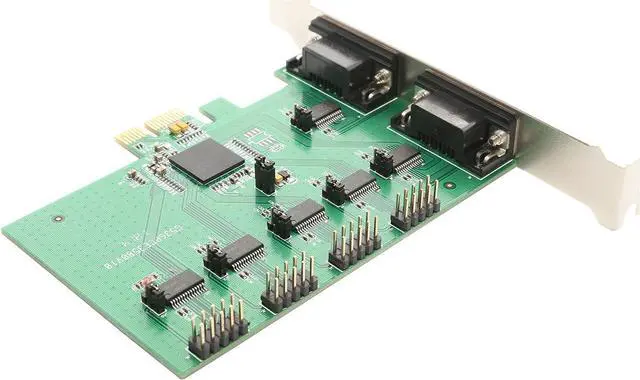

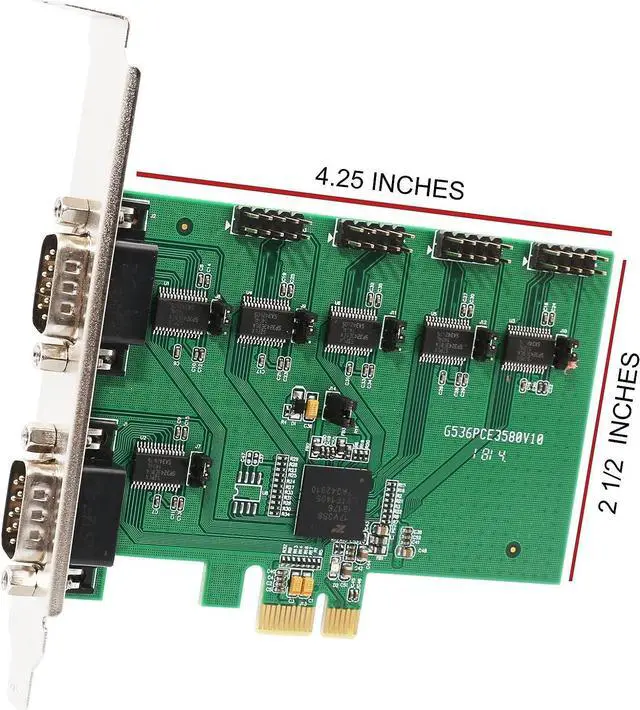

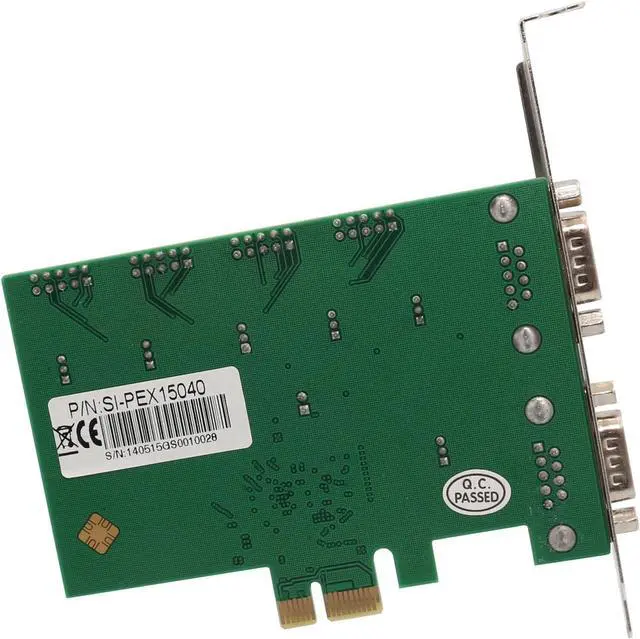

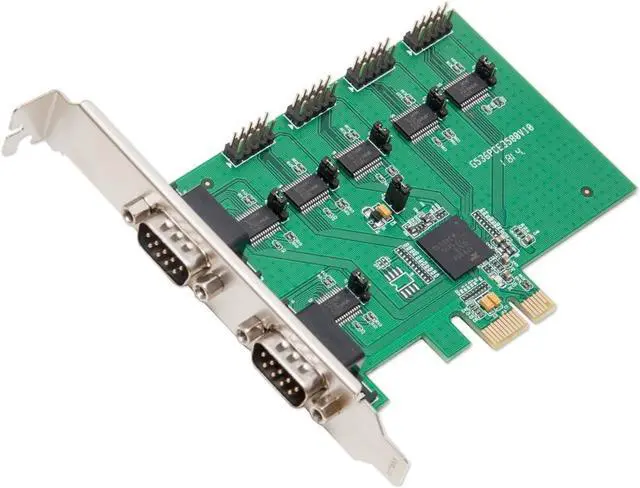

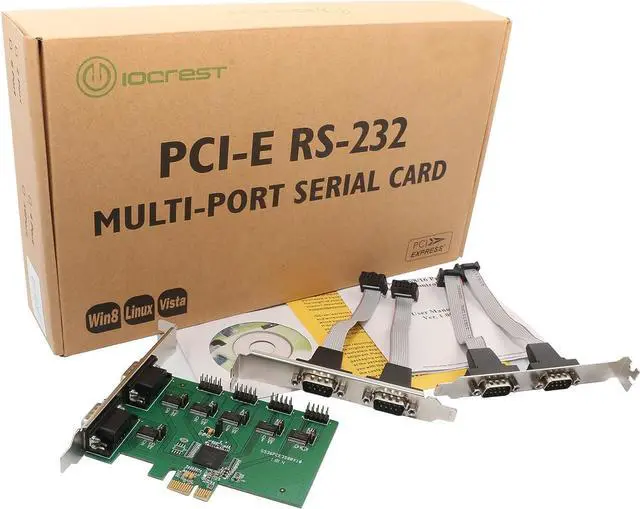

IO CREST 6 Port RS-232 DB9 Serial PCI-Express 2.0 x1 Card SI-PEX15040
- Pcie 2. 0 Gen 1 compliant. x1 Link, Dual Simplex, 2. 5Gbps in each direction expansion bus interface Up to 25 Mbps Serial data rate.
+
+
Overview
Specs
Reviews
Pcie 2. 0 Gen 1 compliant. x1 Link, Dual Simplex, 2. 5Gbps in each direction expansion bus interface Up to 25 Mbps Serial data rate.
16 Multi-Purpose inputs/outputs. 16-Bit general purpose timer/counter. Sleep mode With wake-up indicator
Operating temperature range: -40C to 85C

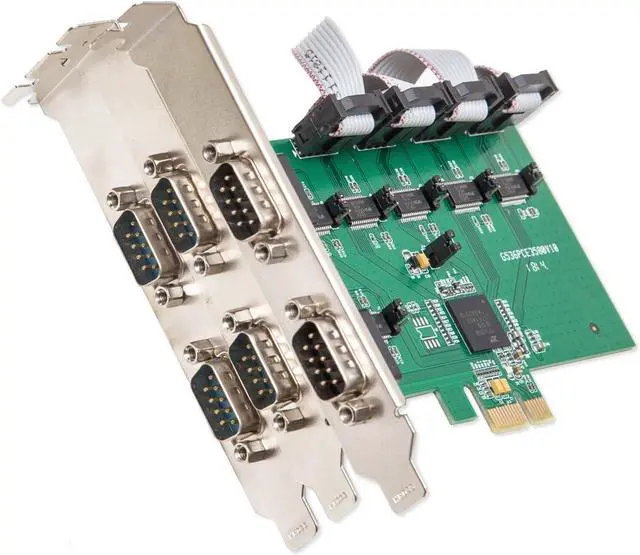

6x Serial (6S) mode: supports 6 independent 9-pin RS232 serial ports.
256-Byte TX and RX fifos. Programmable TX and RX trigger levels. Fractional baud rate generator. Automatic RTS/CTS or DTR/DSR hardware flow control with programmable hysteresis.
PCI-e 2.0 Gen 1 Compliant
x1 Link, Dual Simplex, 2.5Gbps in Each Direction
Expansion Bus Interface
Up to 25 Mbps Serial Data Rate
16 Multi-Purpose Inputs/Outputs
16-bit General Purpose Timer/Counter
Sleep Mode with Wake-up Indicator
Supports 6 Independent 9-pin RS232 Serial Ports
16 Multi-Purpose inputs/outputs. 16-Bit general purpose timer/counter. Sleep mode With wake-up indicator
Operating temperature range: -40C to 85C
6x Serial (6S) mode: supports 6 independent 9-pin RS232 serial ports.
256-Byte TX and RX fifos. Programmable TX and RX trigger levels. Fractional baud rate generator. Automatic RTS/CTS or DTR/DSR hardware flow control with programmable hysteresis.
PCI-e 2.0 Gen 1 Compliant
x1 Link, Dual Simplex, 2.5Gbps in Each Direction
Expansion Bus Interface
Up to 25 Mbps Serial Data Rate
16 Multi-Purpose Inputs/Outputs
16-bit General Purpose Timer/Counter
Sleep Mode with Wake-up Indicator
Supports 6 Independent 9-pin RS232 Serial Ports
