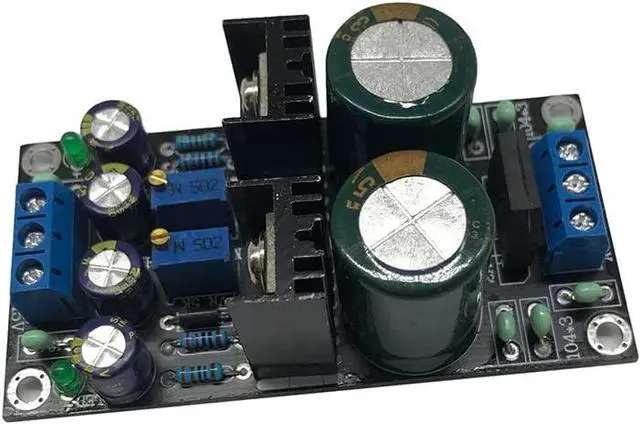

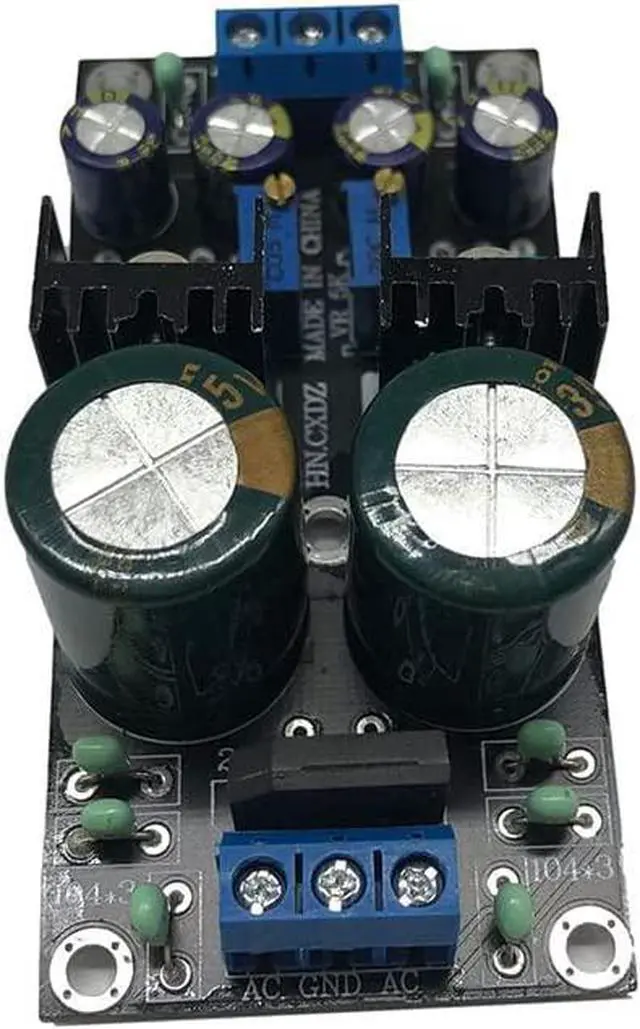

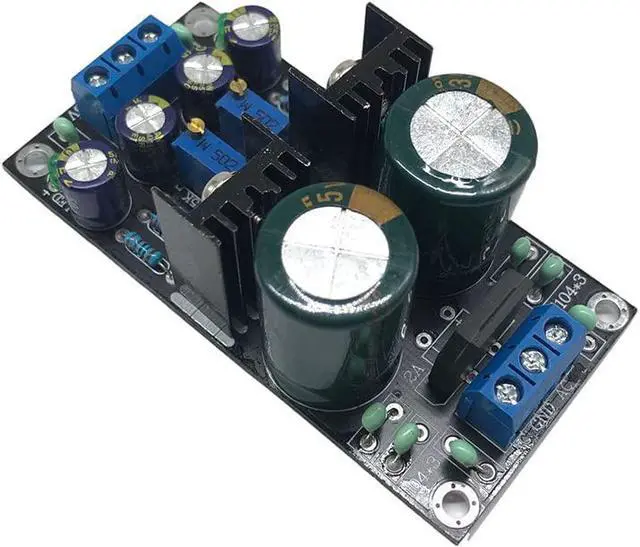

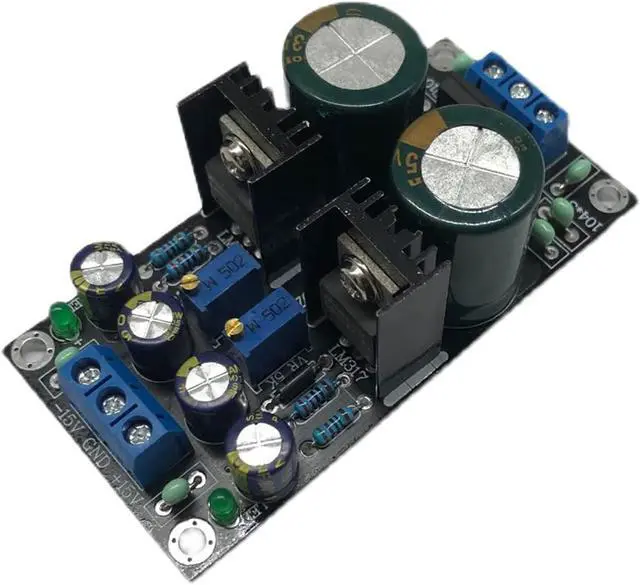

LM337 DC Adjustable Regulated Power Supply Board: Positive and Negative Regulated Power Supply Adjustable Module XR-103 (1Piece)
- 1. Voltage input: below double AC28V (three wires)
+
+
Overview
Specs
Reviews
1. Voltage input: below double AC28V (three wires)
2. Voltage output range: ±DC1.25V to 30V continuously adjustable.
3. Adjustable output voltage as low as 1.2V. Guaranteed 1.5A output current.
4. Typical linear adjustment is 0.01%. Typical load regulation is 0.1%. 80dB Ripple Rejection Ratio.
5. Output short circuit protection. Overcurrent and overheating protection.
2. Voltage output range: ±DC1.25V to 30V continuously adjustable.
3. Adjustable output voltage as low as 1.2V. Guaranteed 1.5A output current.
4. Typical linear adjustment is 0.01%. Typical load regulation is 0.1%. 80dB Ripple Rejection Ratio.
5. Output short circuit protection. Overcurrent and overheating protection.
