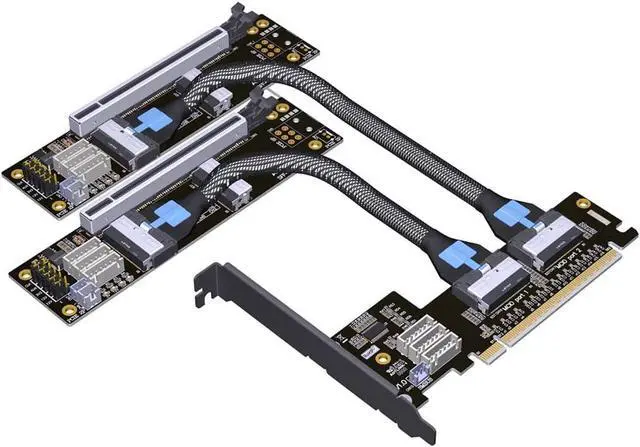

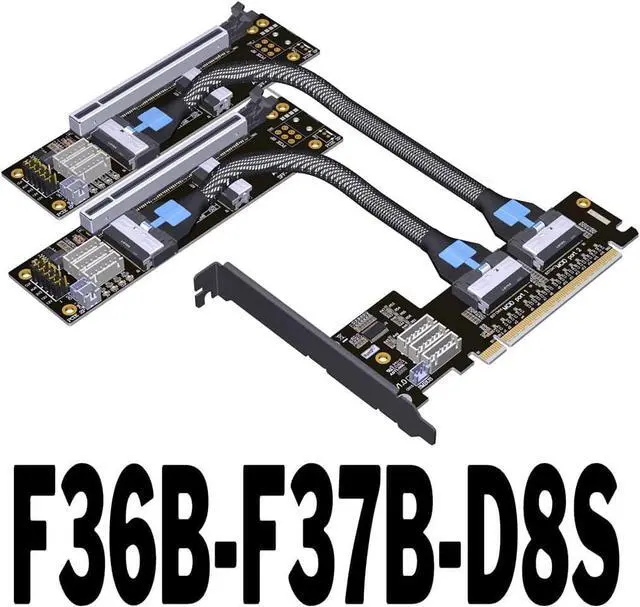

ADT-F36B-F37B-D8S PCI-e 4.0 X16 to X8 X8 MCIO Bifurcation Adapter Riser Card 256G/bps Split Extender SFF-TA-1016 with Power Cable (50cm)

ADT-F36B-F37B-D8S PCI-E 4.0 X16 to X8 X8 MCIO Bifurcation Adapter Riser Card 256G/bps Split Extender SFF-TA-1016 with Power Cable

Product Detail:

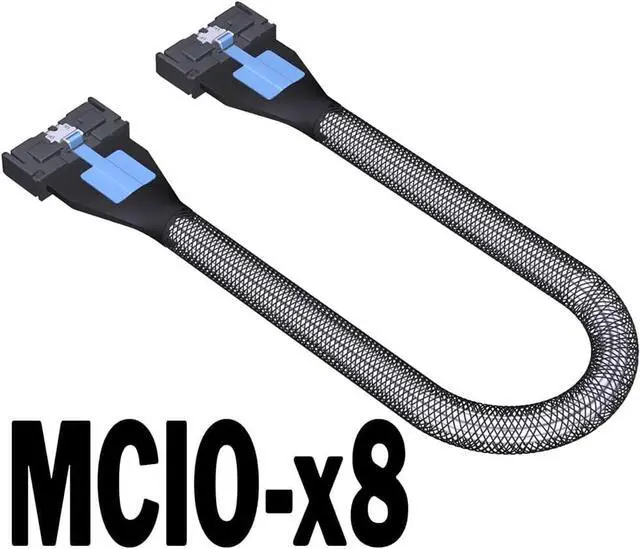

Product name: PCIe 4.0 X16 MCIO split extension cable

Wire length: 50cm, 100cm ( The wire length of this product refers to the length of the MCIO wire.)

Speed bandwidth: PCIe 4.0x16, gen4 256G/bps, backward compatible with gen3 gen2

Accessory description: SATA power adapter cable is included, and the 12V power supply must be connected to the white seat son.

Be sure that your motherboard supports Bifurcation PCIE splitting.

Product advantages:

1, Can be matched with BK7 bracket, graphics card extension more robust.

2, UL certified wire, the 5th generation FFC flat cable design full coverage shield, ultra-thin thickness of only 1.0mm.

3, UL certified PCB board, gold finger gold-plated 10µ", good electrical conductivity, can reduce oxidation rust impedance caused by the blue screen of death problem.

4, The connector shell material is PA10T/LCP, the terminal gold-plated 15µ" plugable, high frequency in line with RoHS/Free(HF) requirements.

5, four-layer PCB board, advanced design, exquisite technology, stable signal quality, excellent wiring, good isolation, up to PCIe 4.0 standards, to meet a variety of needs.

6, This PCIe adapter cable can be freely split, support motherboard Bifurcation PCIE supports one tow, one tow two, flexible design, widely used.
