ADT-R29A PCIe4.0 x4 to SFF-8611/8612 OCuLink Adapter Card 64Gbps with Half and Full Height Baffle Support Chassis External
- Product Name:PCIe 4.0 x4 to SFF-8611/8612(OCuLink) Adapter Card.
- Support PCIe 4.0 X4 compatible with Gen3/Gen4, 64Gbps.
- Equipped with full-height and half-height baffles for a wide range of environments.
- Circuit protection design prevents the current generated by the external graphics card from flowing to the motherboard and protects the motherboard.
- Gold-plated gold fingers, gold thickness up to 10U, in line with the IPC level 1 international standard.
- R29A light: D2 light for the power indicator, the normal state is always on; D3 light for RESET light, under normal circumstances will only flash once in the boot state.
+
+
Overview
Specs
Reviews
Product Description

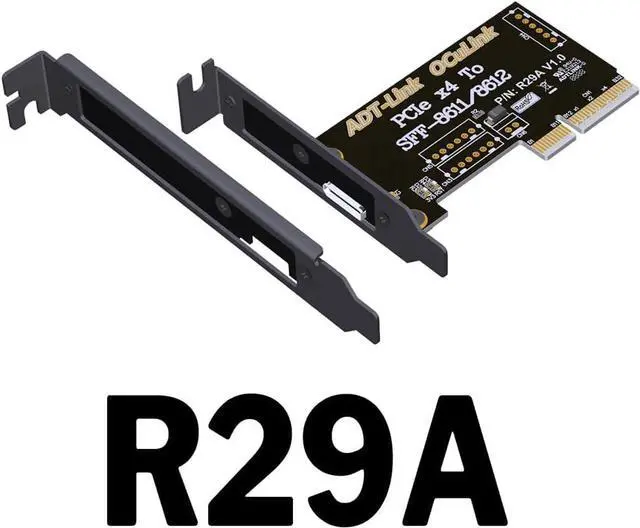

ADT-R29A PCIe 4.0 x4 to SFF-8611/8612 OCuLink Adapter Card 64Gbps with Half and Full Height Baffle Support Chassis External
Product Model: R29A
Product Name: PCIe 4.0 x4 to SFF-8611/8612 (OCuLink) Adapter Card
Speed Bandwidth: PCIe 4.0 x4
Product Size: Length 94.6 mm*Height 121mm*Thickness 21.6 mm
Product weight: R29A ( 31.7 g)
Appearance Color: Black
Working Temperature: -40~80
Flame retardant grade: 94V0
Advantage:.
1. Support PCIe 4.0 X4 compatible with Gen3/Gen4.
2. Equipped with full-height and half-height baffles for a wide range of environments.
3. Circuit protection design prevents the current generated by the external graphics card from flowing to the motherboard and protects the motherboard.
4. Gold-plated gold fingers, gold thickness up to 10U, in line with the IPC level 1 international standard.
5. High-frequency and low resistance to high temperature and oxygen-resistant PCB board, non-deformation color yellow crystal semi-transparent, not white and not black.

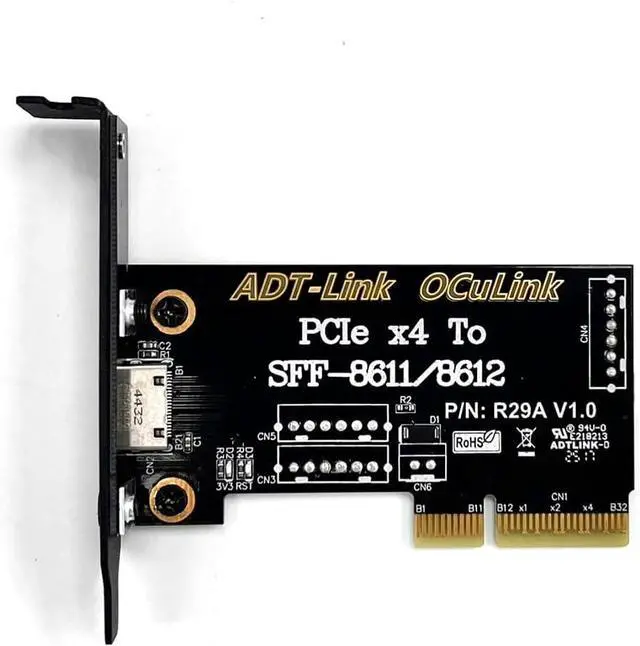

R29A two indicator lights:
D2 lamp for the power indicator, the normal state is always on;
D3 light for RESET light, under normal circumstances will only flash once in the boot state.
ADT-R29A PCIe 4.0 x4 to SFF-8611/8612 OCuLink Adapter Card 64Gbps with Half and Full Height Baffle Support Chassis External
Details
:Product Model: R29A
Product Name: PCIe 4.0 x4 to SFF-8611/8612 (OCuLink) Adapter Card
Speed Bandwidth: PCIe 4.0 x4
Product Size: Length 94.6 mm*Height 121mm*Thickness 21.6 mm
Product weight: R29A ( 31.7 g)
Appearance Color: Black
Working Temperature: -40~80
Flame retardant grade: 94V0
Advantage:.
1. Support PCIe 4.0 X4 compatible with Gen3/Gen4.
2. Equipped with full-height and half-height baffles for a wide range of environments.
3. Circuit protection design prevents the current generated by the external graphics card from flowing to the motherboard and protects the motherboard.
4. Gold-plated gold fingers, gold thickness up to 10U, in line with the IPC level 1 international standard.
5. High-frequency and low resistance to high temperature and oxygen-resistant PCB board, non-deformation color yellow crystal semi-transparent, not white and not black.
R29A two indicator lights:
D2 lamp for the power indicator, the normal state is always on;
D3 light for RESET light, under normal circumstances will only flash once in the boot state.
