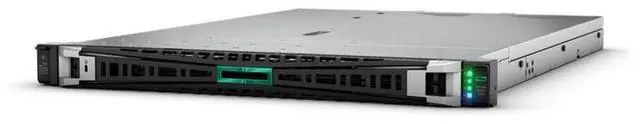

HPE ProLiant DL320 Gen11 - rack-mountable - Xeon Gold 5416S 2 GHz - 64 GB - no HDD

Primary Information:-

• Product Description:                                                                                           HPE ProLiant DL320 Gen11 - rack-mountable                                                Xeon Gold 5416S 2 GHz - 64 GB - no HDD
• Type:Server - rack-mountable
• Height (Rack Units):1U
• Localization:Region: Canada, United States
• Server Scalability:1-way
• Processor:1 x Intel Xeon Gold 5416S / 2 GHz (, up to 4 GHz, (16-core)
• Processor Main Features:Hyper-Threading Technology, Intel Turbo Boost Technology 2
• Cache Memory:30 MB L3 cache
• Cache Per Processor:30 MB
• RAM:64 GB (installed) / 2.04 TB (max) - DDR5 SDRAM
• Storage Controller:SATA
• Server Storage Bays:Hot-swap 2.5"
• Hard Drive:No HDD
• Optical Storage:No optical drive
• Video Memory:16 MB
• Networking:1GbE
• Power Redundancy:Yes
• OS Provided:No operating system
• Software Included:HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download)
• Dimensions (WxDxH):17.1 in x 23.8 in x 1.7 in
• Weight:26.46 lbs
• Manufacturer Selling Program:HPE Express Buy
• Environmental Standards:ENERGY STAR Qualified
• Manufacturer Warranty:Limited warranty - parts and labor - 3 years - on-site - response time: next business day

General:-

• Type:Server
• Product Form Factor:Rack-mountable - 1U
• Built-in Devices:LED panel
• Embedded Security:Trusted Platform Module (TPM 2.0) Security Chip
• Server Scalability:1-way
• Hot-Swap Bays Qty:8
• Localization:Region: Canada, United States

Processor / Chipset:-

• CPU:Intel Xeon Gold 5416S
• Clock Speed:2 GHz
• Max Turbo Speed:4 GHz
• Number of Cores:16-core
• CPU Qty:1
• Max CPU Qty:1
• CPU Upgradability:Upgradable
• Processor Main Features:Hyper-Threading Technology, Intel Turbo Boost Technology 2
• Chipset Type:Intel C741

Cache Memory:-

• Installed Size:L3 cache - 30 MB
• Cache Per Processor:30 MB

RAM:-

• Installed Size:64 GB / 2.04 TB (max)
• Technology:DDR5 SDRAM
• Effective Memory Speed:4400 MHz
• Rated Memory Speed:4800 MHz
• Form Factor:DIMM 288-pin
• Slots:16 (total) / 14 (empty)
• Features:Registered, HPE SmartMemory
• Configuration Features:2 x 32 GB

Hard Drive:-

• Type:No HDD
• Storage Controller
• Type:SATA
• Optical Storage
• Type:No optical drive
• Monitor
• Monitor Type:None.
• Graphics Controller
• Video Memory:16 MB
• Video Interfaces:VGA

Networking:-

• Ethernet Ports:2 x Gigabit Ethernet
• Ethernet Controller:Broadcom BCM5720
• Data Link Protocol:Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management Protocol:SNMP 3, IPMI 2.0
• Remote Management Controller:Integrated Lights-Out 6
• Features:Wake on LAN (WoL), ACPI support, PXE support

Expansion / Connectivity:-

• Bays:8 (total) / 8 (free) x hot-swap 2.5" SFF
• Slots:2 (total) / 2 (free) x PCIe 5.0 x16 - half-length, full-height (x16 mode) ¦ 1 (total) / 1 (free) x PCIe 5.0 x16 / Open Compute Project mezzanine (OCP) 3.0 (x16 mode)
• Interfaces:1 x HPE iLO (1 in front) (service port) ¦ 3 x USB 3.2 Gen 1 (1 front, 2 rear) ¦ 1 x USB 2.0 (1 internal) ¦ 1 x VGA ¦ 2 x LAN (Gigabit Ethernet)

Miscellaneous:-

• Included Accessories:5 x standard fans, HPE Easy Install Rail 1 Kit
• Compliant Standards:AES, FIPS 140-2, Triple DES, IPv6 Ready, PCI DSS, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, Redfish API, ACPI 6.3, SMBIOS 3.2
• Manufacturer Selling Program:HPE Express Buy

Power:-

• Device Type:Power supply - hot-plug
• Power Redundancy:Yes
• Power Redundancy Scheme:1+1
• Installed Qty:2
• Max Supported Qty:2
• Voltage Required:AC 100-240 V
• Power Provided:800 Watt
• 80 PLUS Certification:80 PLUS Platinum

Operating System / Software:-

• OS Provided:No operating system
• OS Certified:SUSE Linux Enterprise Server, Microsoft Windows Server, Red Hat Enterprise Linux, CentOS, VMware ESXi, Oracle Linux, Canonical Ubuntu, Oracle VM, Citrix
• Software:HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download)

Sustainability Information:-

• ENERGY STAR Certified:Yes
