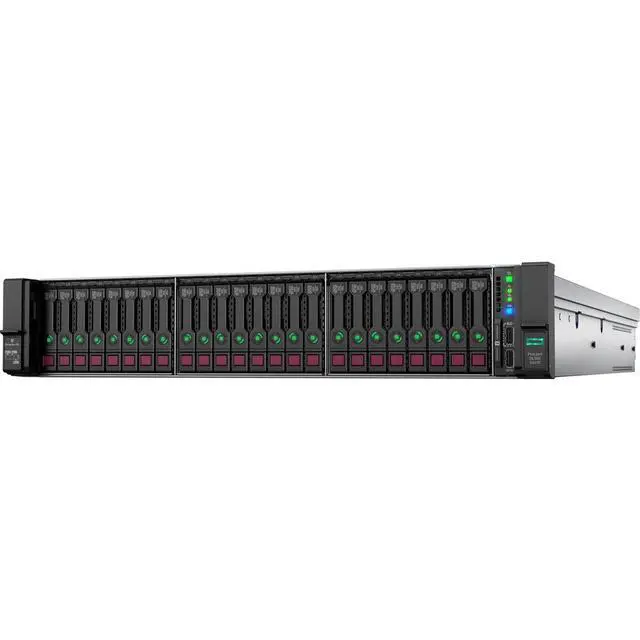

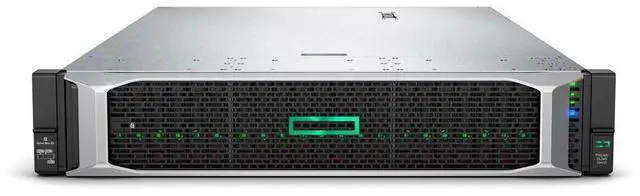

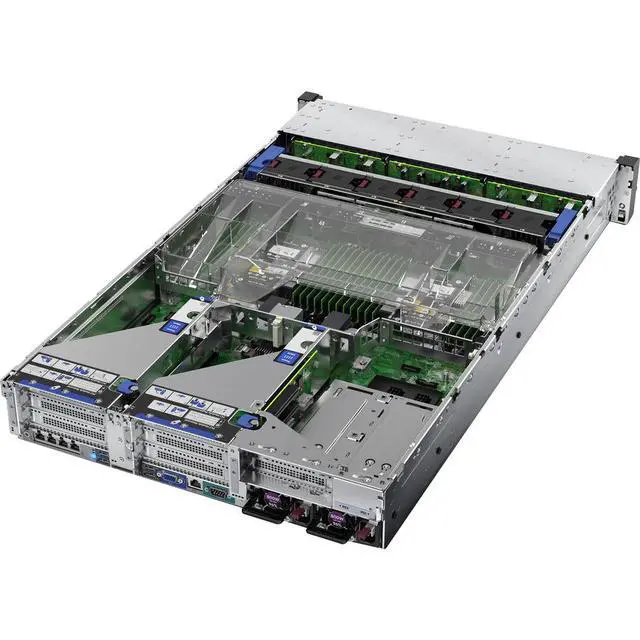

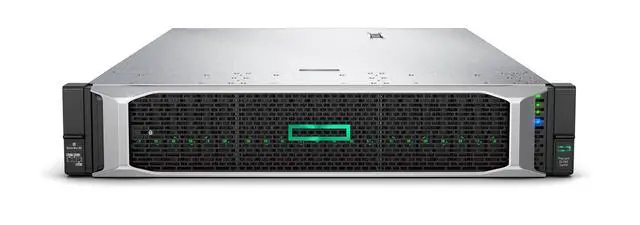

HPE ProLiant DL560 G10 2U Rack Server 4x Intel Xeon Platinum 8268 2.9GHz 512GB RAM Serial ATA 12Gb/s SAS Controller Model P40457-B21

General Information:
Manufacturer: Hewlett Packard Enterprise
Product Line: ProLiant
Product Series: DL560 G10
Product Name: ProLiant DL560 G10 Server
Marketing Information:
The HPE ProLiant DL560 Gen10 Server is a high-density, four-socket (4S) server with high performance, scalability and reliability, all in a 2U chassis. Supporting the latest 2nd generation Intel® Xeon® Scalable processors, the HPE ProLiant DL560 Gen10 Server offers greater processing power, up to 6 TB of faster memory, IO of up to eight PCIe 3.0 slots, up to 12 TB of HPE Persistent Memory plus the intelligence and simplicity of automated management with HPE OneView and HPE iLO 5.
The HPE ProLiant DL560 Gen10 Server is the ideal server for business critical workloads, virtualization, server consolidation, database, business processing, and general 4P data-intensive applications where data center space and the right performance are paramount.
Product Type: Server

Processor
Number of Processors Supported: 4
Number of Processors Installed: 4
Processor Manufacturer: Intel
Processor Type: Xeon Platinum
Processor Generation: 2nd Gen
Processor Model: 8268
Processor Core: Tetracosa-core (24 Core)
Processor Speed: 2.90 GHz
Cache: 35.75 MB

Chipset
Chipset Manufacturer: Intel
Chipset Model: C621

Memory
Standard Memory: 512 GB
Maximum Memory Supported: 3 TB
Memory Technology: DDR4 SDRAM
Number of Total Memory Slots: 48
Number of Occupied Memory Slots: 16
Intel Optane Memory Ready: Yes
Signal Processing: Registered (Buffered)

Storage
Total Hard Drive Capacity: No
Optical Drive Type: No

Controllers
Controller Type: Serial ATA
Controller Type: 12Gb/s SAS
Controller Model: Smart Array P408i-a
RAID Supported: Yes

I/O Expansions
Number of Total Expansion Bays: 16
Number of Internal 2.5" Bays: 16
Number of SFF Bays: 16
Number of Total Expansion Slots: 8
PCI Express x8 (Gen 3. x)
Slots: 6
PCI Express x16 (Gen 3. x)
Slots: 2
PCI Express

Details

: 2 x PCIe 3.0 x8? length/full height, 1 x PCIe 3.0 X16? length/full height, 4 x PCIe 3.0 x8 Half length/full height, 1 x PCIe 3.0 x16 Half length/full height

Display & Graphics
Graphics Memory Capacity: 16 MB
Network & Communication
Ethernet Technology: 10 Gigabit Ethernet
Ethernet Technology: 25 Gigabit Ethernet

Interfaces/Ports
Total Number of USB Ports: 9
Number of USB 2.0 Ports: 4
Number of USB 3.0 Ports: 5
Network (RJ-45): Yes
Remote Management: Yes
Remote Management Controller: HPE iLO 5

Operating System
Operating System Supported: Red Hat Enterprise Linux
Operating System Supported: SuSE Linux Enterprise Server
Operating System Supported: Windows Server 2016 Standard
Operating System Supported: CentOS
Operating System Supported: Windows Server 2012 R2 Standard
Operating System Supported: Windows Server 2019 Standard
Operating System: No

Power Description
Input Voltage: 230 V AC
Number of Power Supplies Supported: 2
Number of Power Supplies Installed: 2
Plug/Connector Type: C13/C14
Maximum Power Supply Wattage: 1600 W
Redundant Power Supply: Yes
Hot Swappable Power Supply: Yes

Physical Characteristics
Form Factor: Rack
Rack Height: 2U
Height: 3.4"
Width: 17.5"
Depth: 29.7"
Weight (Approximate): 75.22 lb

Miscellaneous
Package Contents:
ProLiant DL560 G10 Server
6-foot IEC C-13/C-14 Jumper Cord
Easy Install Rails with CMA

Security Features:
UEFI Secure Boot and Secure Start support
Immutable Silicon Root of Trust
FIPS 140-2 validation (iLO 5 certification in progress)
Common Criteria certification (iLO 5 certification in progress)
Configurable for PCI DSS compliance
Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser
Support for Commercial National Security Algorithms (CNSA)
Granular control over iLO interfaces
Smart card (PIV/CAC) and Kerberos based 2-factor Authentication
Tamper-free updates - components digitally signed and verified
Secure Recovery - recover critical firmware to known good state on detection of compromised firmware
Ability to rollback firmware. Secure erase of NAND/User data
