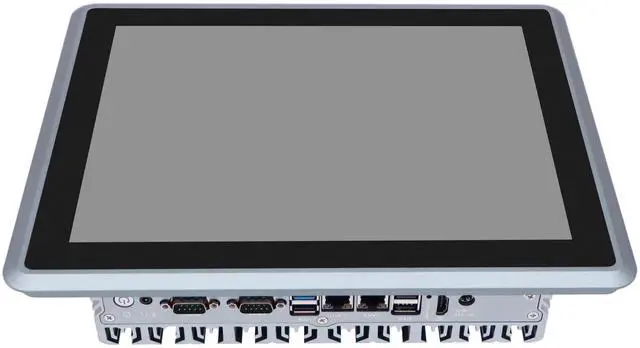

Partaker 12.1 Inch Fanless Industrial Panel PC, Capacitive Touch Screen Industrial PC, I5 4200U, Win 10 Pro, A26, Dual Lan, HDMI, 2 x COM, 4 x USB, 4GB RAM 128GB SSD
- 12.1-inch Industrial Touch Panel PC: Equipped with a durable 12.1-inch capacitive TFT-LCD touch screen and XGA (1024x768) resolution, delivering responsive multi-touch control and clear visuals for industrial interfaces.
- Fanless Aluminum Alloy Construction: Features a silent fanless design encased in a robust all-metal chassis, ensuring dependable operation in high-dust and demanding settings.
- IP65 Front Protection & Mounting Flexibility: Offers a fully flat IP65-rated front panel resistant to dust and water. Supports embedded installation (298.5x237mm cutout) and VESA-compatible mounting.
- Comprehensive Industrial I/O Connectivity: Provides extensive connectivity including dual configurable RS232/485 COM ports, dual Gigabit Ethernet ports, multiple USB ports, and audio for seamless machinery integration.
- Enhanced Performance with Expandable Memory: Runs on an efficient dual-core processor and supports up to 16GB DDR3 memory plus one mSATA storage slot, enabling robust handling of complex automation and data tasks.
- Configurable Power Supply Input: Standard 12V DC input supported; optional wide-range DC 9-36V input available for flexible adaptation to varying industrial power conditions.
+
+
Overview
Specs
Reviews
Model: Partaker A26
Color: Gray (color customizable)
Material: Aluminum alloy shell
Processor: Intel Core I5 4200U Processor, 3M Cache, up to 2.60 GHz
Panel: IP65 Waterproof front panel
Memory: 2*DDR3/16G Max
BIOS: AMI EFI BIOS
Display Port: 1*HDMI, 1*LVDS (LVDS has been connected to the LCD screen, synchronous/asynchronous dual display)
Storage: 1*MSATA hard disk
Expansion slot: 2*Mini PCIE slots (support 1*WIFI/Bluetooth/3G/4G with SIM card holder, support 1* wifi)

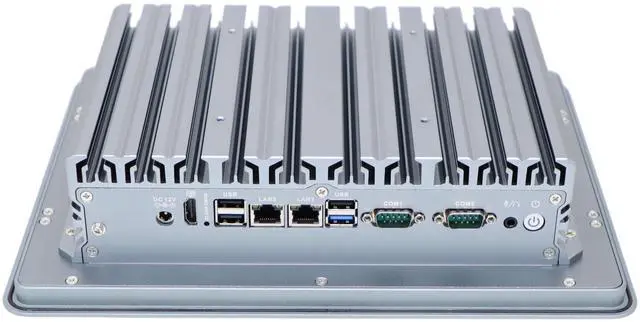

I/O Port: 1*HDMI, 2*COM (COM1-2 RS232/485, Customizable 6 COM), 1*Power Button, 1*DC, 1*audio two-in-one, 4*USB, 2*Realtek Gigabit network ports, support network wake up /PXE
Other Functions: Power on, timer on, watchdog (0~255 level)
Expansion options: (Standard shipment does not include this interface): GPIO (4 channels), 4*COM, 2*USB)
LCD: Screen size- 12.1 inch TFT-LCD; screen brightness-450 cd/m2; viewing Angle- full Angle, Screen ratio 4; 3; resolution-1024*768;
Touch screen: Capacitive touch screen (default), (optional Resistive screen);
Speaker: 2*82W speakers
Input Voltage: DC12V input, customizable DC 9~36V wide voltage input
Work Temperature: -20 ~ +60 (solid state drive), surface air flow
Work Humidity: 5% ~ 95% non-condensable state
Dimension: 309.5 * 248 * 77 mm
Embedded size: 298.5 * 237 mm
Weight: 3.7KG s
System: Support Windows 7/10/Linux, default system with Windows 10 pro, if need other system, leave us message after order placed.
Application: Industrial automation, medical, logistics and transportation, warehousing, machine vision etc.
Color: Gray (color customizable)
Material: Aluminum alloy shell
Processor: Intel Core I5 4200U Processor, 3M Cache, up to 2.60 GHz
Panel: IP65 Waterproof front panel
Memory: 2*DDR3/16G Max
BIOS: AMI EFI BIOS
Display Port: 1*HDMI, 1*LVDS (LVDS has been connected to the LCD screen, synchronous/asynchronous dual display)
Storage: 1*MSATA hard disk
Expansion slot: 2*Mini PCIE slots (support 1*WIFI/Bluetooth/3G/4G with SIM card holder, support 1* wifi)
I/O Port: 1*HDMI, 2*COM (COM1-2 RS232/485, Customizable 6 COM), 1*Power Button, 1*DC, 1*audio two-in-one, 4*USB, 2*Realtek Gigabit network ports, support network wake up /PXE
Other Functions: Power on, timer on, watchdog (0~255 level)
Expansion options: (Standard shipment does not include this interface): GPIO (4 channels), 4*COM, 2*USB)
LCD: Screen size- 12.1 inch TFT-LCD; screen brightness-450 cd/m2; viewing Angle- full Angle, Screen ratio 4; 3; resolution-1024*768;
Touch screen: Capacitive touch screen (default), (optional Resistive screen);
Speaker: 2*82W speakers
Input Voltage: DC12V input, customizable DC 9~36V wide voltage input
Work Temperature: -20 ~ +60 (solid state drive), surface air flow
Work Humidity: 5% ~ 95% non-condensable state
Dimension: 309.5 * 248 * 77 mm
Embedded size: 298.5 * 237 mm
Weight: 3.7KG s
System: Support Windows 7/10/Linux, default system with Windows 10 pro, if need other system, leave us message after order placed.
Application: Industrial automation, medical, logistics and transportation, warehousing, machine vision etc.
