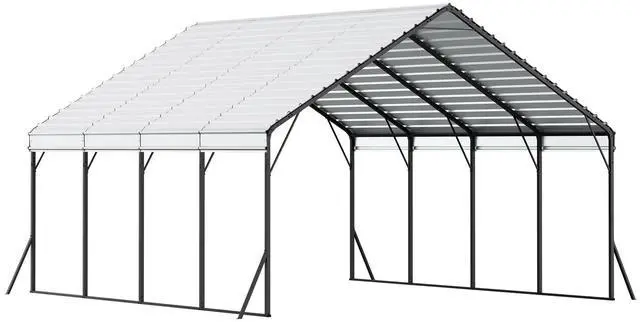

Heavy Duty Metal Carport, 20 x 20 ft Outdoor Carport with Sturdy Frame & Roof, Car Garage Shade with Removable Sidewalls, Multi-Use Car Shelter for Pickup, Boat, Trucks & Tractors

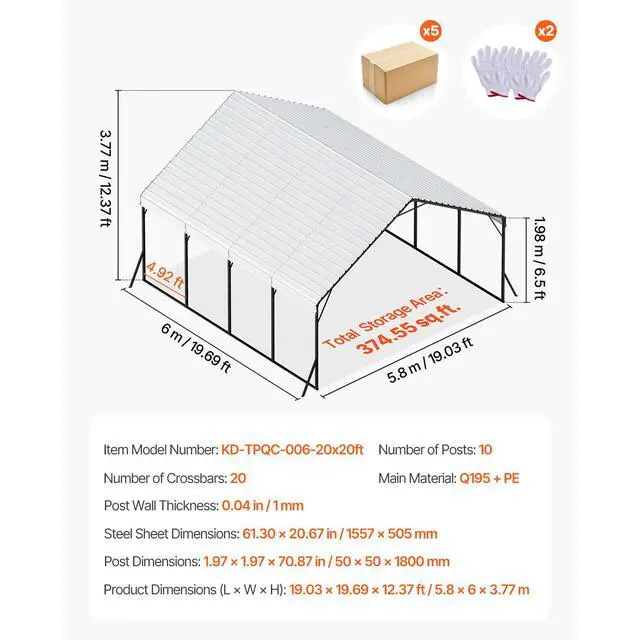

Specifications

Item Model Number: KD-TPQC-006-20x20ft
Number of Posts: 10
Number of Crossbars: 20
Roof Load Capacity: 35 lbs/ft²
Post Wall Thickness: 0.04 in / 1 mm
Steel Sheet Dimensions: 61.30 × 20.67 in / 1557 × 505 mm

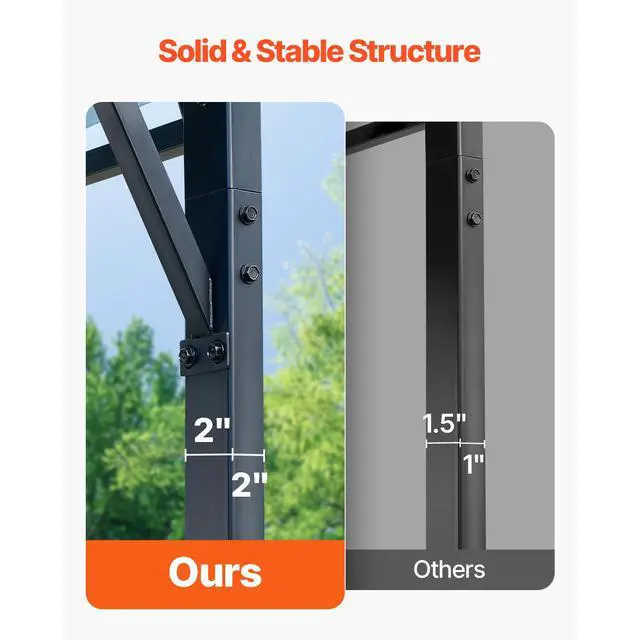

Post Dimensions: 1.97 × 1.97 × 70.87 in / 50 × 50 × 1800 mm
Main Material: Q195 + PE
Product Weight:
Box 1: 104. 72 lbs / 47.5 kg
Box 2: 127. 87 lbs / 58 kg
Box 3: 114. 42 lbs / 51.9 kg
Box 4: 132. 28 lbs / 60 kg
Box 5: 132. 28 lbs / 60 kg
Product Dimensions (L × W × H): 19.03 × 19.69 × 12.37 ft / 5.8 × 6 × 3.77 m

Package Content

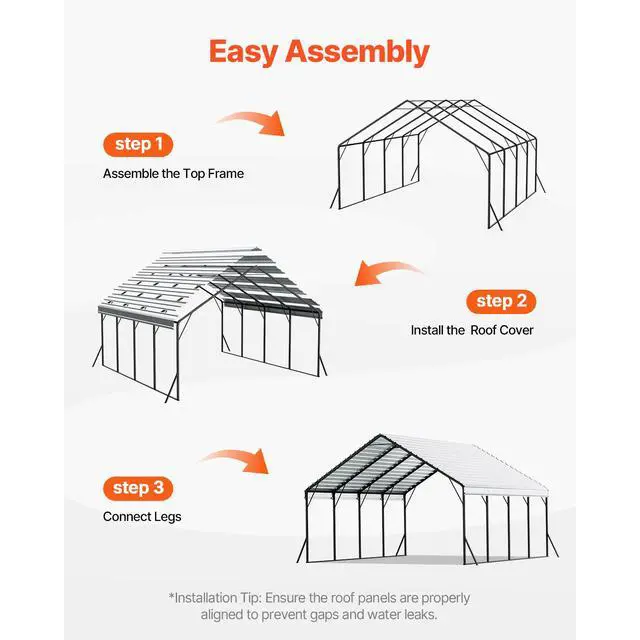

1 × User Manual
10 × Posts
10 × Diagonal Beams
4 × Diagonal Supports
4 × Small Crossbars
8 × Large Crossbars
2 × Bottom Pipe 1
6 × Bottom Pipe 2
15 × Curved Pipes
15 × Frame Reinforcing Pipes
68 × Steel Sheets
4 × PE Covers
40 × Elastic Balls
20 m × Cut-Resistant Rubber Strips
5 Rolls × Waterproof Sealing Tape
6 × Reflective Stickers
22 × Expansion Screws
2 Pairs × Gloves
