Heavy Duty Metal Carport, 13' x 26' Outdoor Carport with Galvanized Steel Frame & Roof, Car Tent Garage Shade with Removable Sidewalls, Multi-Use Car Shelter for Pickup, Boat, Car & Tractors

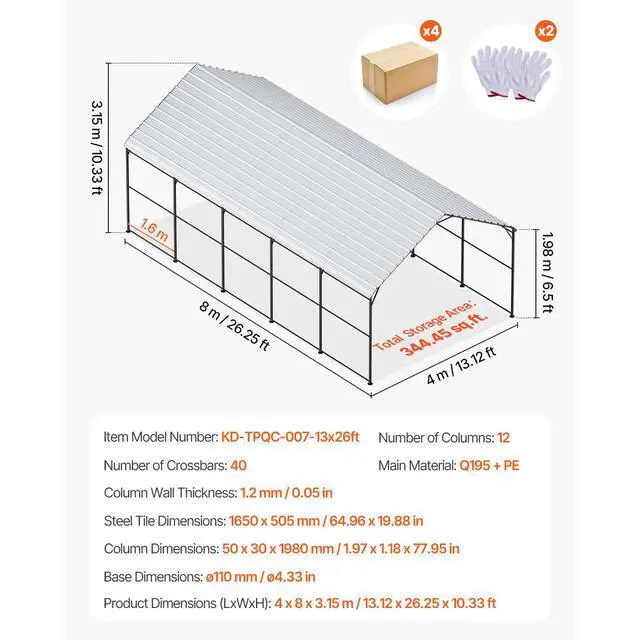

Specifications

Item Model Number: KD-TPQC-007-13x26ft
Number of Columns: 12
Number of Crossbars: 40
Roof Load Capacity: 35lb/ft²

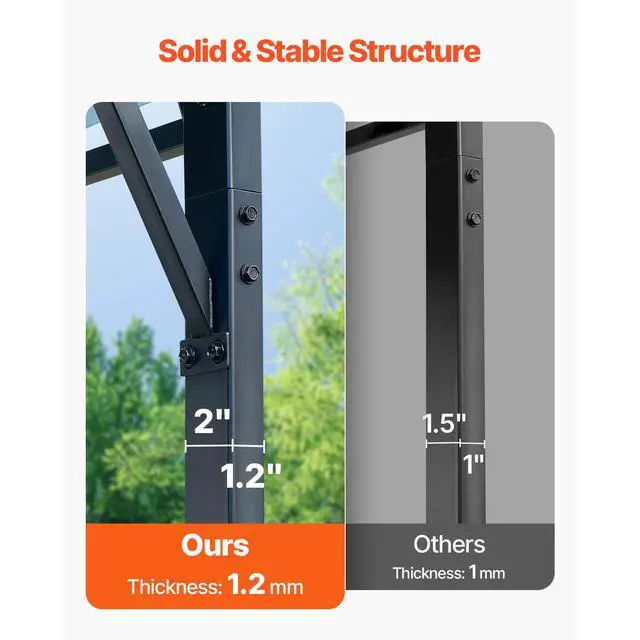

Column Wall Thickness: 1.2 mm / 0.05 in
Steel Tile Dimensions: 1650x505mm / 64.96 x 19.88 in
Column Dimensions: 50x30x1980mm / 1.97 x 1.18 x 77.95 in
Base Dimensions: ø110mm / ø 4.33 in
Main Material: Q195 + PE
Product Weight
Box 1: Net Weight 63kg / 138.89 lbs
Box 2: Net Weight 62.5 kg / 137.79 lbs
Box 3: Net Weight 52.8 kg / 116.38 lbs
Box 4: Net Weight 54.5 kg / 120.20 lbs

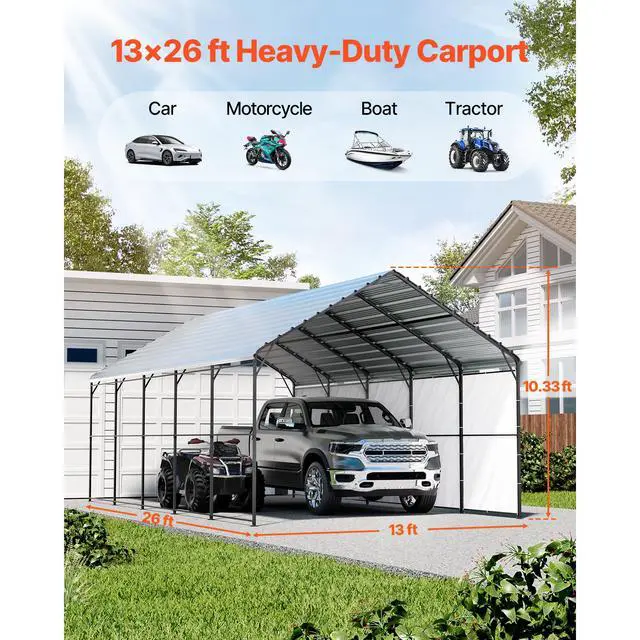

Product Dimensions (LxWxH): 4x8x 3.15 m / 13.12 x 26.25 x 10.33 ft

Package Content
1 x User Manual
12 x Columns
12 x Beams
40 x Reinforcement Pipes
18 x Curved Pipes
18 x Frame Reinforcement Pipes
12 x Bases
55 x Steel Tiles
5 x PE Covers
70 x Elastic Beads
11m x Cut-Resistant Sealing Strip
5 x Waterproof Strips
6 x Reflective Stickers
2 x Gloves
215 x Self-Tapping Screws (M5)
135 x Hex Bolts + Nuts (M6x65)
40 x Hex Bolts + Nuts (M6x45)
24 x Expansion Bolts
24 x Spiral Ground Nails
75 x Screws (M6x20)
