Heavy Duty Metal Carport, 20 x 24 ft Outdoor Carport with Sturdy Frame & Roof, Car Garage Shade with Removable Sidewalls, Multi-Use Car Shelter for Pickup, Boat, Trucks & Tractors
- Versatile Use: The 20x24 ft heavy-duty metal carport provides ample space for vehicles, boats, outdoor sofas, patio dining tables, or kids' toys. It can also be used in backyard gardens, ranches, or farms.
- All-Around Protection: The PE tarp sidewalls are designed for sun protection, effectively shielding against UV damage and preventing vehicle aging, ideal for areas with intense sun exposure. Our car garage is suitable for installation on various surfaces, including mud, asphalt, or concrete.
- Durable Roof: The roof is made of galvanized steel, offering long-lasting protection. With high-density seal tape, it prevent leaks from rain on the roof panels, providing exceptional weather protection. The car garage guards your vehicles and equipment.

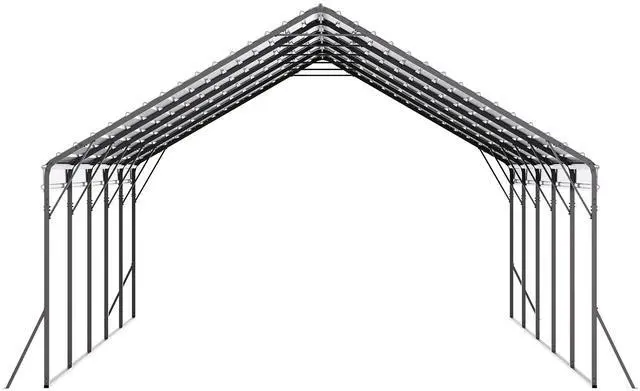

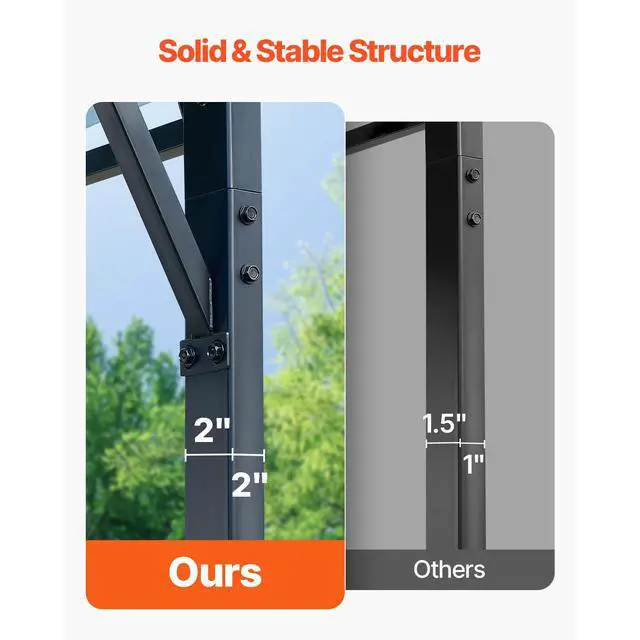

- Sturdy Structure: The metal carport features a robust frame with additional steel reinforcement at the roof and side eaves. Made of 2" high-strength steel rods coated with baked paint, the structure is rust-resistant and durable
+
+
Overview
Specs
Reviews

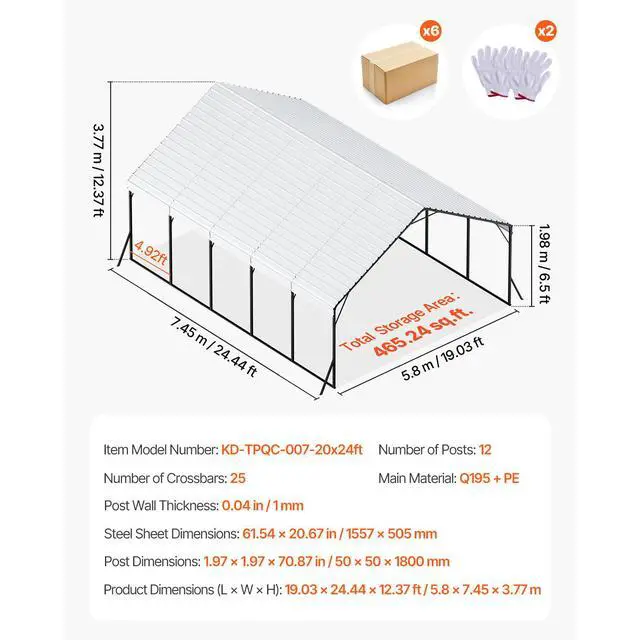

Specifications
Item Model Number: KD-TPQC-007-20x24ft
Number of Posts: 12
Number of Crossbars: 25
Roof Load Capacity: 35 lbs/ft²
Post Wall Thickness: 0.04 in / 1 mm
Steel Sheet Dimensions: 61.54 × 20.67 in / 1557 × 505 mm
Post Dimensions: 1.97 × 1.97 × 70.87 in / 50 × 50 × 1800 mm
Base Dimensions: /
Main Material: Q195 + PE
Product Weight:
Box 1: 135. 14 lbs / 61.3 kg
Box 2: 130. 07 lbs / 59 kg
Box 3: 134. 92 lbs / 61.2 kg
Box 4: 127. 87 lbs / 58 kg
Box 5: 127. 87 lbs / 58 kg
Box 6: 78. 93 lbs / 35.8 kg
Product Dimensions (L × W × H): 19.03 × 24.44 × 12.37 ft / 5.8 × 7.45 × 3.77 m
Package Content
1 × User Manual
12 × Posts
12 × Diagonal Beams
4 × Diagonal Supports
5 × Small Crossbars
10 × Large Crossbars
2 × Bottom Pipe 1
8 × Bottom Pipe 2
18 × Curved Pipes
18 × Frame Reinforcing Pipes
85 × Steel Sheets
5 × PE Covers
50 × Elastic Balls
20 m × Cut-Resistant Rubber Strips
7 Rolls × Waterproof Sealing Tape
6 × Reflective Stickers
26 × Expansion Screws
2 Pairs × Gloves
