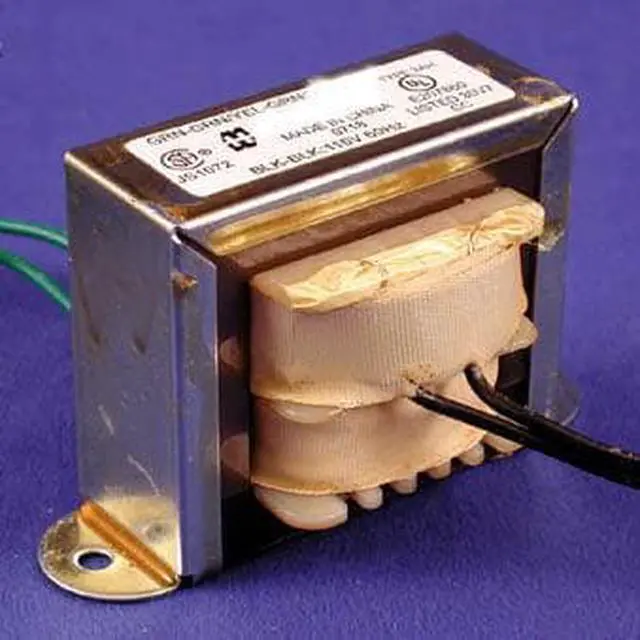

166M16 - TXFR 16VCT 3A IP115V CHMT
- Economical single primary 115 VAC 60 Hz. (or 117 50/60 Hz. see table) (If you require117/234 or 50/60 Hz. operation or dual secondaries check out our versatile 266 Series.
- Most secondaries are center tapped (C.T.) VAC (RMS)
- Open style channel bracket two hole chassis mount.
- Minimum 6 long leads.
- Dual bobbin design no electrostatic shield required.
- We use Class B insulation (130 degrees C) for extra protection UL listed as a Class A (105 degree C) design
- HiPot test of 2 000V RMS.
- UL listed.
- CSA certified...
+
+
Overview
Specs
Reviews
Features
- Economical single primary 115 VAC 60 Hz. (or 117 50/60 Hz. see table) (If you require117/234 or 50/60 Hz. operation or dual secondaries check out our versatile 266 Series.
- Most secondaries are center tapped (C.T.) VAC (RMS)
- Open style channel bracket two hole chassis mount.
- Minimum 6 long leads.
- Dual bobbin design no electrostatic shield required.
- We use Class B insulation (130 degrees C) for extra protection UL listed as a Class A (105 degree C) design
- HiPot test of 2 000V RMS.
- UL listed.
- CSA certified
