VEVOR Boat Trailer Winch Stand with Roller 1200 lbs Winch Boat Winch Mount

Specifications

Item Model Number: 1904
Winch Pound Rating: 1200 lbs / 544 kg
Winch Strap: 2 in x 25ft / 50.8 x 7620mm

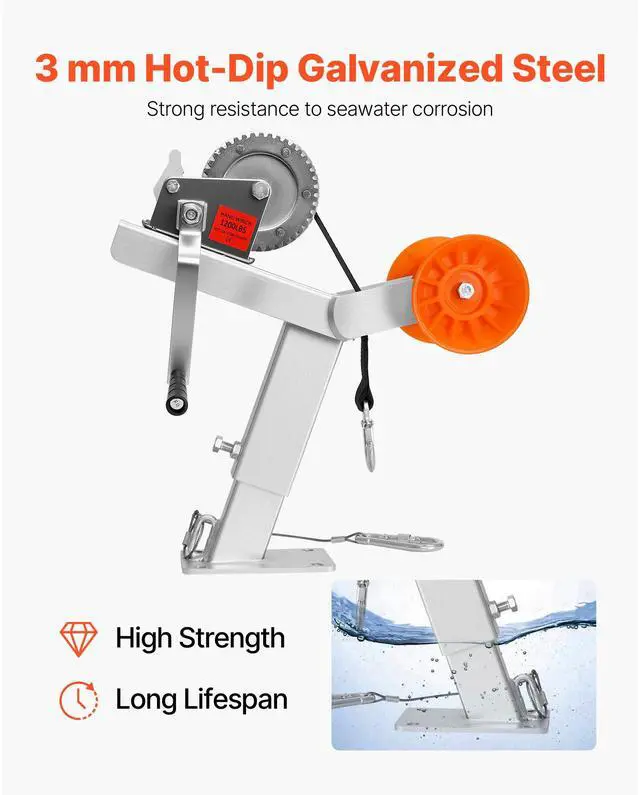

Frame: 3 mm Hot-Dip Galvanized
Minimum Support Height: 14.3 in / 365 mm
Maximum Support Height: 21.6 in / 548 mm

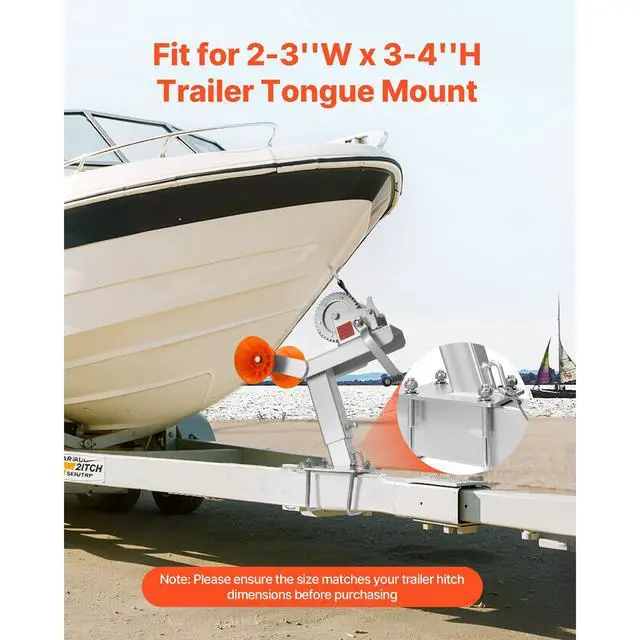

Compatible Tongue Size: 2-3 x 3-4 in / 50.8 - 76.2 mm x 76.2 - 101.6 mm

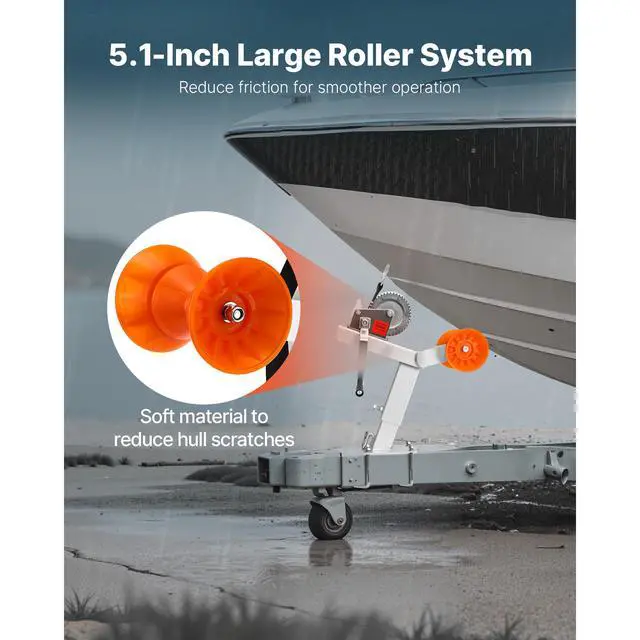

Roller Material: PVC
Roller Outer Diameter: 5.1 in / 130 mm
Product Max Dimensions: 17.32 x 7.48 x 14.57 in / 440 x 190 x 370 mm
Product Weight: 22.16 lbs / 10.05 kg

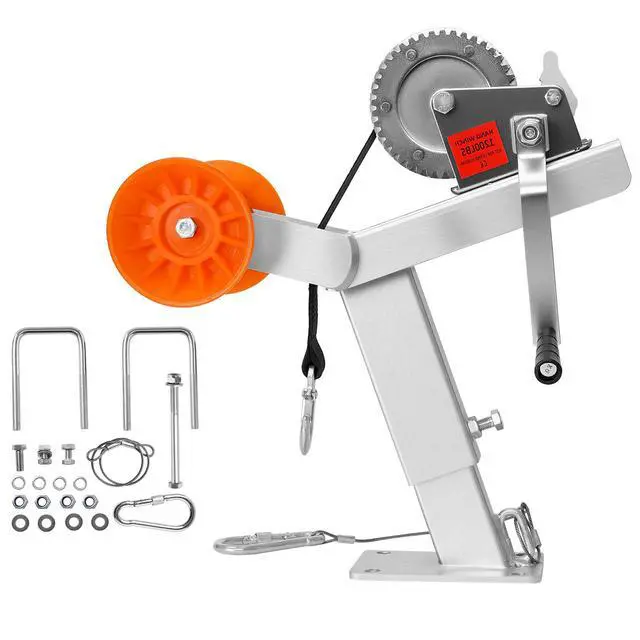

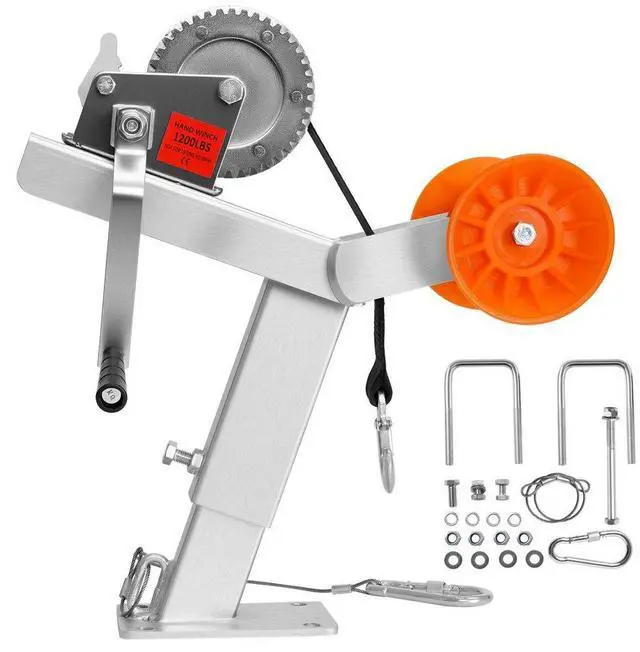

Package Content
1 x Boat Trailer Winch Stand
1 x User Manual
2 x M12 U-Bolts
1 x M12x150 Hex Half-thread Bolt 8.8 Grade
1 x Light Shaft 12xM10 Thread x 98 Hex Half-thread Bolt 4.8 Grade
1x Light Shaft 12xM10 Thread x 116 Flat Round Head Half-thread Bolt
1 x M8x65 Hex Half-thread Bolt 8.8 Grade
1 x M12x30 Hex Bolt 4.8 Grade
2 x M10x20 Hex Bolt 4.8 Grade
2 x M6x15 Hex Bolt 8.8 Grade
2 x M6x10 Hex Bolt 8.8 Grade
6 x M12 Lock Nuts
3 x M10 Lock Nuts
1 x M10 Standard Nut
1 x M8 Lock Nut
2 x M6 Standard Nuts
4 x M12 Washers
1 x 25x19x 0.9 Retaining Ring
1 x 19.5 x1 Retaining Ring
1 x Cushion Block
1 x Cam Block
