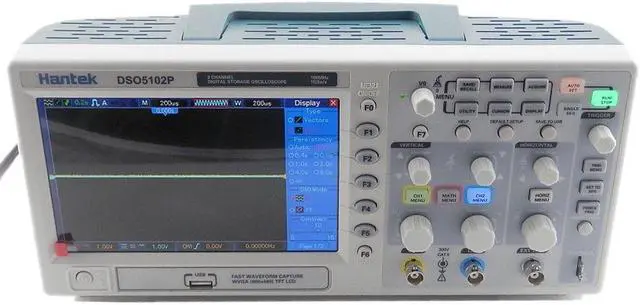

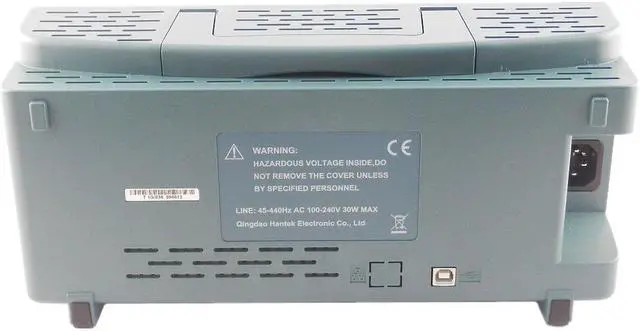

Hantek DSO5102P Digital Storage Oscilloscope USB 100MHz 1GSa/s 40K,2 Channel,2CH
- Remote Control and U Disk Storage: This oscilloscope can store more than 1000 waveforms information, and can upgrade the system through the USB port, support plug-and-play USB storage devices and communicate with the computer and remote control through USB
- Automatic Measurement Function: With 32 different kinds of waveform parameters automatic measurement, with FFT standard, provide manual/tracking automatic/cursor test function, achieved the goal of more accurate measurement
- Large TFT LCD Display: Large 7-inch 64K color TFT LCD display with a resolution of 800 * 480. It can clearly show any measured alternating current, including sine, square, sawtooth and triangular waves

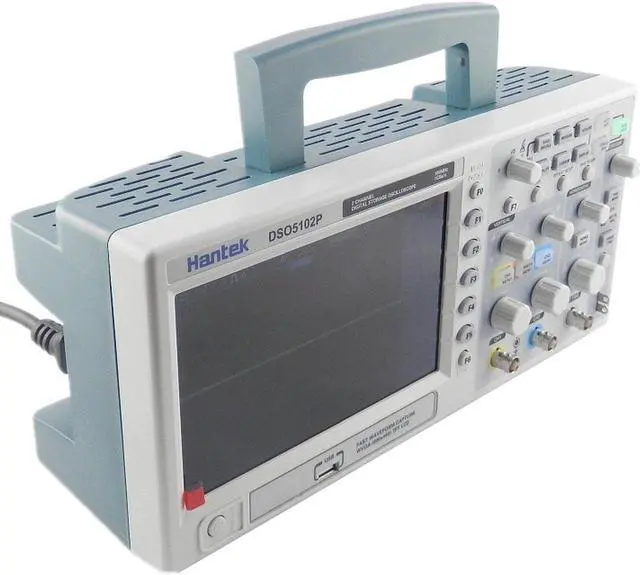

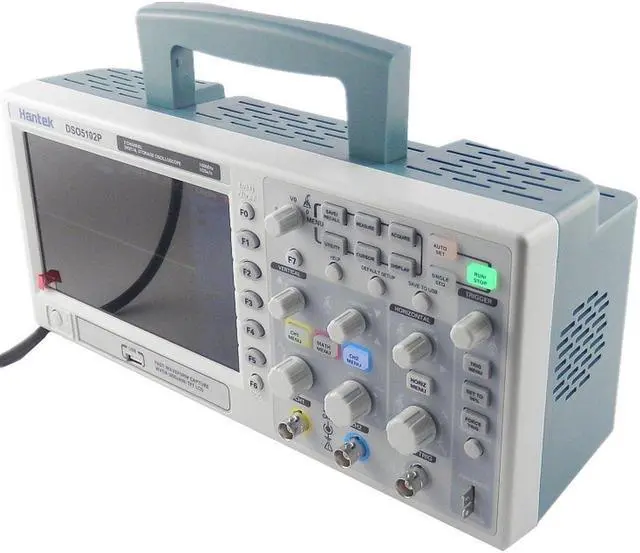

- Easy and Portable to Use: USB design, multi-function button design with clear button division, improve work efficiency; folding handle design, convenient storageand portable, making work more convenient
Overview
Specs
Reviews
Product Description
Features:
1. 100MHz bandwidths
2. 1GSa/s Real Time sample rate
3. Large ( 7.0 -inch) color display, WVGA (800x480)
4. Record length up to 40K
5.
Trigger mode: edge/pulse width/line selectable video/slop/overtime etc.
6. USB host and device connectivity, standard
7. Multiple automatic measurements
8. Four math functions, including FFTs standard
9. Provides software for PC real-time analysis
Specification:
Bandwidth: 100MHz
Channel: 2
Real-Time Sample: 1GSa/s
Equivalent Sample: 25GSa/s
Memory Depth: 40K
Rise Time: 5ns
Time Base Accuracy: ±50ppm
Time Base Range: 4ns/div-40s/div
Input Impendance: 1M
VOLTS/DIV Range: 2mV/div-5V/div
A/D Converter: 8 bit
Bandwidth Limit: 20MHz
Trigger Types: Edge, Video, Pulse, Slope, Over time, Alternative
Trigger Source: CH1, CH2, EXT, EXT/5, AC Line
Trigger Modes: Auto, Normal, Single
Coupling Type: DC, AC, Noise Reject, HF Reject, LF Reject
Math: +, -, x, ÷, FFT
Standard Probe: PP150

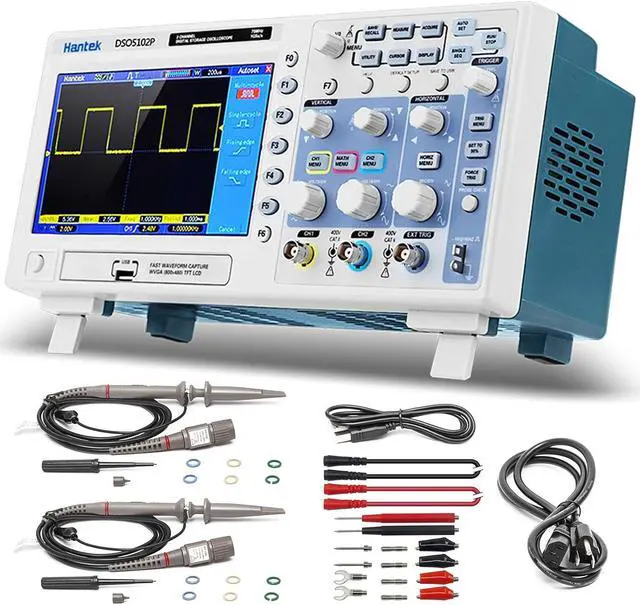

Package Including:
1 x 5102P Oscilloscope Host
2 x Passive Probe - PP150
1 x USB Cable
1 x Installation CD
1 x Power line

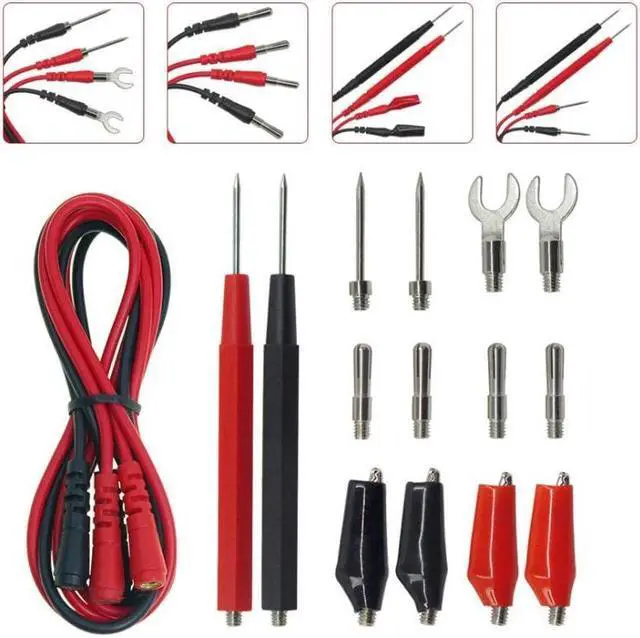

1 x Replaceable Test Wires Probes Set
1 x Original box
Features:
1. 100MHz bandwidths
2. 1GSa/s Real Time sample rate
3. Large ( 7.0 -inch) color display, WVGA (800x480)
4. Record length up to 40K
5.
Trigger mode: edge/pulse width/line selectable video/slop/overtime etc.
6. USB host and device connectivity, standard
7. Multiple automatic measurements
8. Four math functions, including FFTs standard
9. Provides software for PC real-time analysis
Specification:
Bandwidth: 100MHz
Channel: 2
Real-Time Sample: 1GSa/s
Equivalent Sample: 25GSa/s
Memory Depth: 40K
Rise Time: 5ns
Time Base Accuracy: ±50ppm
Time Base Range: 4ns/div-40s/div
Input Impendance: 1M
VOLTS/DIV Range: 2mV/div-5V/div
A/D Converter: 8 bit
Bandwidth Limit: 20MHz
Trigger Types: Edge, Video, Pulse, Slope, Over time, Alternative
Trigger Source: CH1, CH2, EXT, EXT/5, AC Line
Trigger Modes: Auto, Normal, Single
Coupling Type: DC, AC, Noise Reject, HF Reject, LF Reject
Math: +, -, x, ÷, FFT
Standard Probe: PP150
Package Including:
1 x 5102P Oscilloscope Host
2 x Passive Probe - PP150
1 x USB Cable
1 x Installation CD
1 x Power line
1 x Replaceable Test Wires Probes Set
1 x Original box
