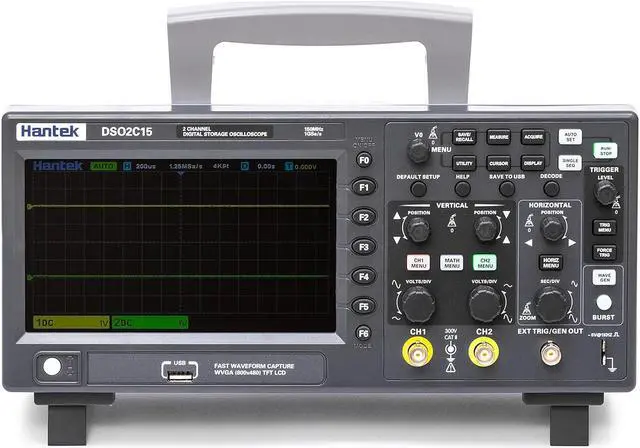

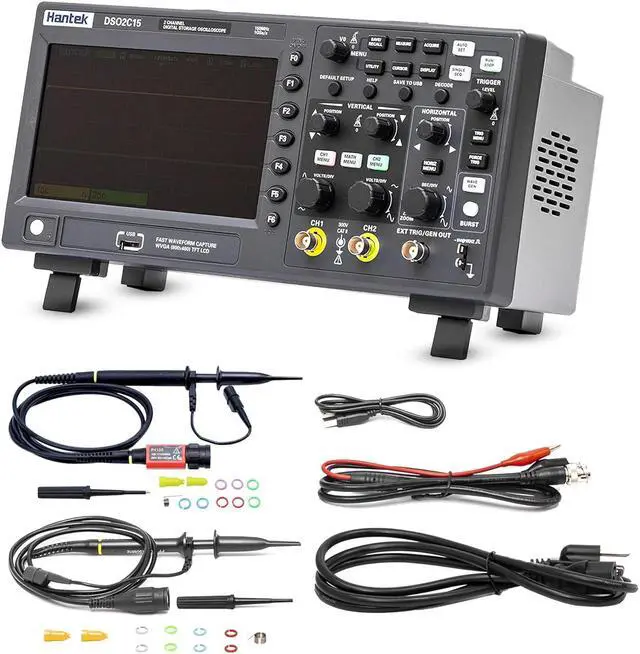

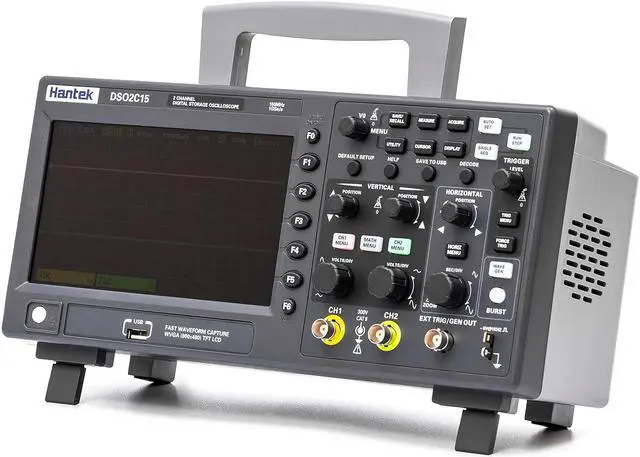

Hantek DSO2C15 Digital Storage Oscilloscope 150MHz Bandwidth 2CH Dual Channel 1GSa/s 8M Memory Depth with High Voltage Probe

Product introduction
Hantek oscilloscopes are extensive use in many scopes and well-know for the DSO5102P, and there is a mature technology in this industry. Hantek DSO2C15 is a upgrade version of DSO5102P.

DSO2C15 is a cost-effective oscilloscope, with 8M memory depth, 150MHz bandwidth, 1GSa/s, 3-digit digital voltage meter, 6-digit hardware frequency indicator functions and abundant SCPI remote command control. This lab oscilloscope supports BUS decode and protocol analysis includes RS232/UART, I2C, SPI, CAN, LIN. This DSO2C15 digital oscilloscope can connect the laptop, that allows direct and efficient observation of data. The function of this oscilloscope is suitable for use in personal hobbies, maintenance devices and small-scale laboratory. Hantek DSO2C15 oscilloscope is a professional device in many industries, such as communications, aerospace, embedded systems, computer, R&D, education and so on.

Supports 14 kinds of trigger modes, standard with 5 kinds of serial protocol triggers and decodes; 32 kinds of auto measurements with statistics;

PC software only supports windows7/8/10 32-bit and 64-bit, do not support OS

Key Features

Vertical range 2mV/div ~ 10V/div
Trigger: Edge, Pulse, Video, Slope, Overtime, Window, Pattern, Interval, Under Amp, UART, LIN, CAN, SPI, IIC
BUS decode and protocol analysis: RS232/UART, I2C, SPI, CAN, LIN
Can save multiple data formats, such as settings, waveforms, reference waveforms, CSV, pictures
A 3-digit digital voltage meter and a 6-digit hardware frequency indicator
32 kinds of auto measurements with statistics, real-time statistics of maximum, minimum, standard deviation and etc.
2 sets of digital voltmeters
Support threshold testing, free measurements within the screen
Abundant SCPI remote command control

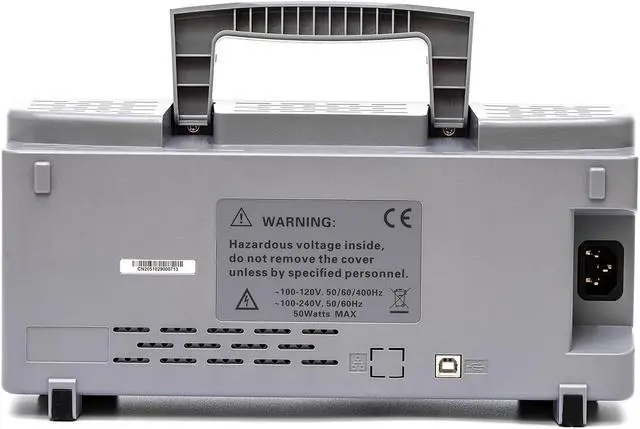

USB Host/Device.
Model: DSO2C15
150 MHZ analog channel bandwidth

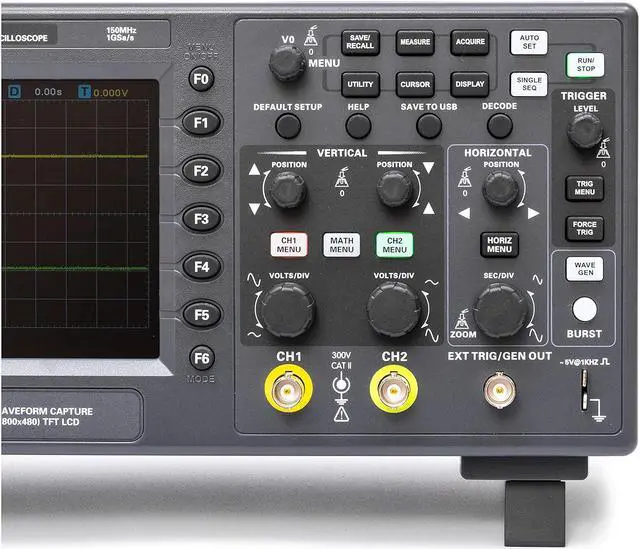

2 channels which are respectively controlled by independent knobs
Sampling rate up to 1 GSa/s
8M memory depth
Vertical resolution: 8bit
No AWG

32 kinds of auto measurements with statistics

Can save 10 sets of reference waveforms
CSV waveforms and settings
The USB one-click screenshot function.

2 sets of DVM
3-digit digital voltage meter and 6-digit hardware frequency indicator functions

Serial bus trigger and decode
with the protocol monitoring function
8M memory depth

PASS/FAIL

Mathematical operation and FFT

X-Y format and display in dual windows
2C15

c
Electronic circuit design and debugging
Electrical circuit function test
Inspect instantaneous signal
Industrial control and measuring
Products quality control
Education and training

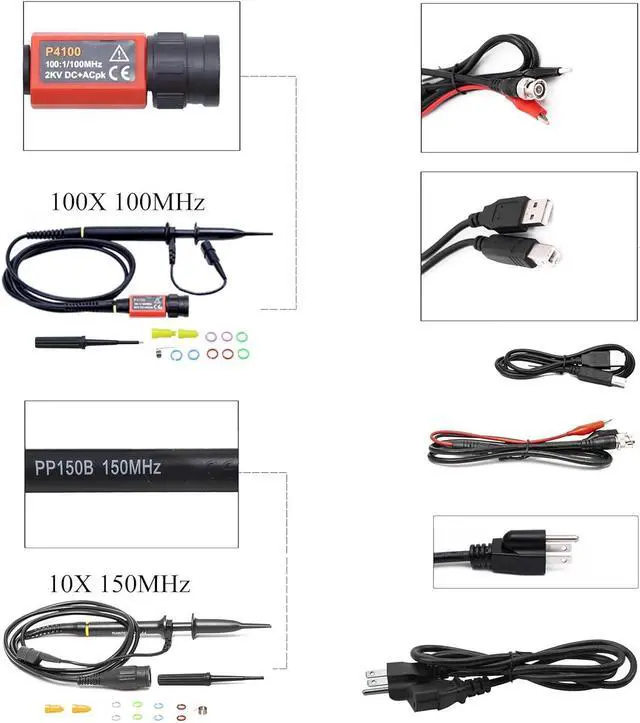

Accessories
what's include the package

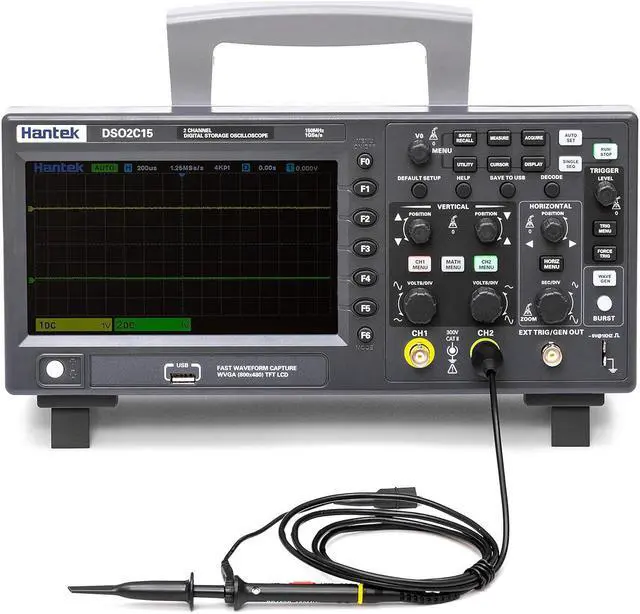

A Passive Probe*1 - PP150B (150MHZ)
A High Voltage Probe*1 - P4100 (100MHz/100X/2000V)
A Test Lead with two clips*1
A Power Line*1
A USB Line*1
