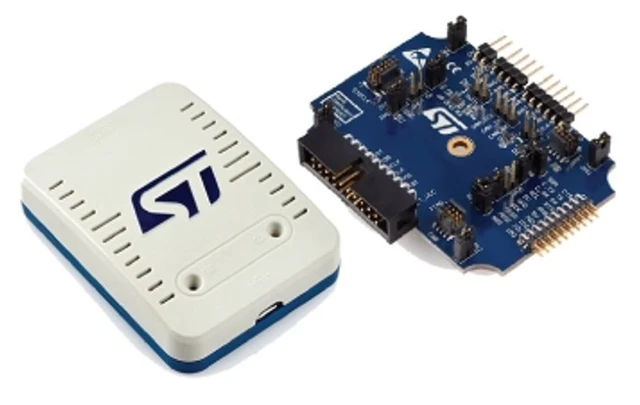

STMicroelectronics ST-Link V3 In-Circuit Debugger/Programmer

Key Features: All-in-one probe with modular extension cards Self-powered through a USB connector (Micro-B) and USB 2.0 high-speed-compatible interface JTAG/SWD (STM32) and SWIM (STM8) debug interfaces Drag-n-Drop flash programming Virtual COM port and multi-path USB bridge to SPI/UART/ I2C/CAN/GPIOs The STLINK-V3SET is an all-in-one, high-performance, debugging and programming probe for STM8 and STM32 microcontrollers. The SWIM and JTAG/SWD interfaces let developers easily communicate with any STM8 or STM32 microcontroller on an application board. The STLINK-V3SET also provides a Virtual COM port interface allowing the host PC to communicate with the target microcontroller through a UART as well as several bridge interfaces for programming the target MCU through the bootloader. Its modular architecture based on extension cards such as the complimentary adapter board makes the STLINK-V3SET futureproof. The STLINK-V3SET directly supports JTAG and SWD debug interfaces with an STDC14 connector coupled with MIPI10, MIPI20, and STDC14 flat cables. The complimentary adapter board adds support for the SWIM interface and provides a multi-path bridge with a variety of communication protocols (SPI, UART, I2C, CAN, and GPIOs) which helps you easily reprogram devices anywhere. Item Specifics JTAG / serial wire debugging (SWD) communication support
JTAG Voltage: 3 to 3.6 V application voltage support and 5 V tolerant inputs Virtual COM port (VCP)
Voltage: 3 to 3.6 V application voltage support on the UART interface and 5 V tolerant inputs Virtual
COM port Frequency: up to 15 MHz Drag-and-drop flash programming of binary files
Two-color LEDs: communication, power
