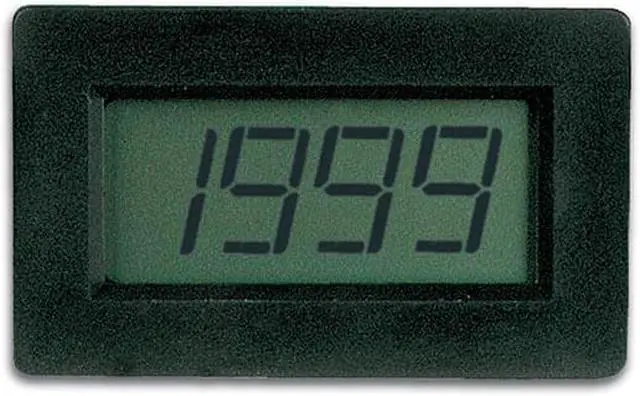

PMLCDL - PANEL METER DIGITAL 3-1/2 DISPLAY 68X44MM
- lowcost version
- single 8/12Vdc (1mA) operation
- high input impedance: > 100Mohm
- dimensions: 68 x 44mm
- optional resistor set: PM/RES
- display: 3 1/2digit LCD
- input sensitivity: 200 mV FS
- power supply: 9 VDC (7 12 VDC)
- decimal point selection: with wire jumper
- automatic polarity indication
- figure height: 13 mm (0.52)
- sampling rate: 2 3 readings / sec.
- guaranteed zero reading for 0V input
- high input impedance: > 100 MOhm
- accuracy: ± 0.5%
- power consumption: 1 mA DC
- size: 68 x 44 mm
- dissipation: 1 2 mA
- power requirement: 10 20 mW...
+
+
Overview
Specs
Reviews
DIGITAL PANEL METER LCD LOWCOST Features
- lowcost version
- single 8/12Vdc (1mA) operation
- high input impedance: > 100Mohm
- dimensions: 68 x 44mm
- optional resistor set: PM/RES
- display: 3 1/2digit LCD
- input sensitivity: 200 mV FS
- power supply: 9 VDC (7 12 VDC)
- decimal point selection: with wire jumper
- automatic polarity indication
- figure height: 13 mm (0.52)
- sampling rate: 2 3 readings / sec.
- guaranteed zero reading for 0V input
- high input impedance: > 100 MOhm
- accuracy: ± 0.5%
- power consumption: 1 mA DC
- size: 68 x 44 mm
- dissipation: 1 2 mA
- power requirement: 10 20 mW
