$71.94
Meet Your Seller

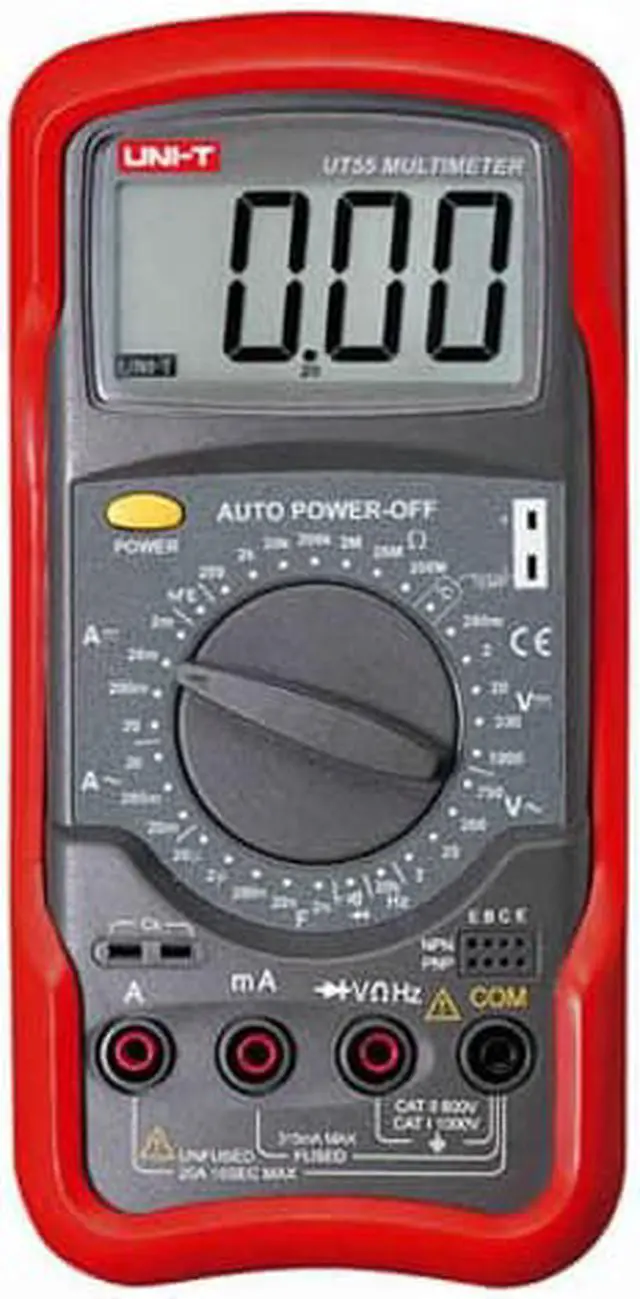

UT55 - MULTIMETER DIGITAL 20A AUTO PWR CAPACITANCE/TEMP/DIODE/TRANS
- Specifications
- Range
- Best Accuracy
- Model
- ã
- UT55
- DC Voltage (V)
- 200mV/2V/20V/200V/1000V
- ±(0.5%+1)
- DC Current (A)
- 2mA/20mA/200mA/20A
- ±(0.8%+1)
- AC Voltage (V)
- 2V/20V/200V/750V
- ±(0.8%+3)
- AC Current (A)
- 20mA/200mA/20A
- ±(1%+3)
- Resistance (Ω)
- 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/200MΩ
- ±(0.8%+1)
- Capacitance (F)
- 2nF/20nF/200nF/2μF/20μF
- ±(4%+3)
- Frequency (Hz)
- 2kHz/20kHz
- ±(1.5%+5)
- 20kHz
- ±(1.5%+5)
- Temperature (°C)
- 20âï½1000â
- ±(1%+3)
- Features
- Transistor
- â
- Diode
- â
- Continuity Buzzer
- â
- Sleep Mode
- â
- Low Battery Display
- â
- Input Impedance for DC Voltage Measurement
- 10MΩ
- â
- Max....
+
+
Overview
Specs
Reviews
- Specifications
- Range
- Best Accuracy
- Model
- UT55
- DC Voltage (V)
- 200mV/2V/20V/200V/1000V
- ±(0.5%+1)
- DC Current (A)
- 2mA/20mA/200mA/20A
- ±(0.8%+1)
- AC Voltage (V)
- 2V/20V/200V/750V
- ±(0.8%+3)
- AC Current (A)
- 20mA/200mA/20A
- ±(1%+3)
- Resistance ()
- 200/2k/20k/200k/2M/20M/200M
- ±(0.8%+1)
- Capacitance (F)
- 2nF/20nF/200nF/2F/20F
- ±(4%+3)
- Frequency (Hz)
- 2kHz/20kHz
- ±(1.5%+5)
- 20kHz
- ±(1.5%+5)
- Temperature (°C)
- 201000
- ±(1%+3)
- Features
- Transistor
- Diode
- Continuity Buzzer
- Sleep Mode
- Low Battery Display
- Input Impedance for DC Voltage Measurement
- 10M
- Max. Display
- 1999
- General Characteristic
- Power
- 9V Battery (6F22)
- LCD Size
- 65mm×33mm
- Product Colour
- Red and Grey
- Product Net Weight
- 580g (including holster)
- Product Size
- 190mm×88mm×34mm
- Standard Accessories
- Test Lead Battery Holster Point type temperature probe
- Standard Packing
- Gift Box English Manual
- Standard Quantity Per Carton
- 20 Pcs
- Standard Carton Measurement
- 535mm×362mm×385mm
- Standard Carton Gross Weight
- UT5420.5kgUT5517.4kg
- Optional Accessories*
- ClipOn Test Lead Light (UTTL) BuiltIn Test Lead Light (UTL1) BuiltIn Test Lead Light Plus (UTL2)
