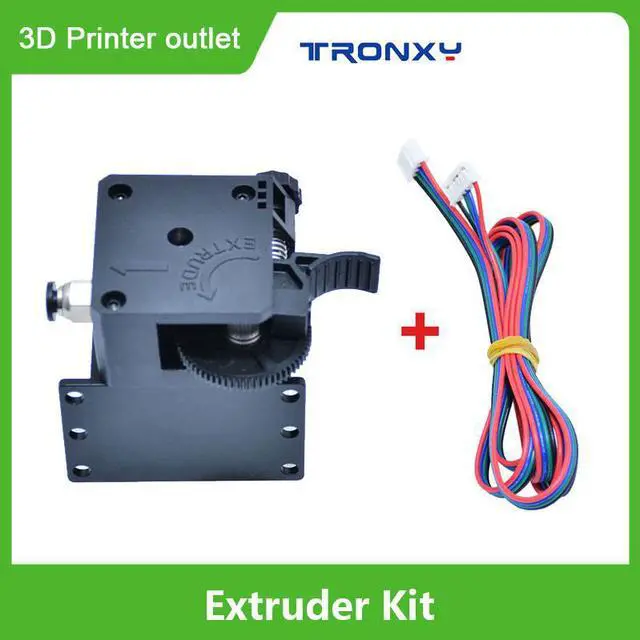

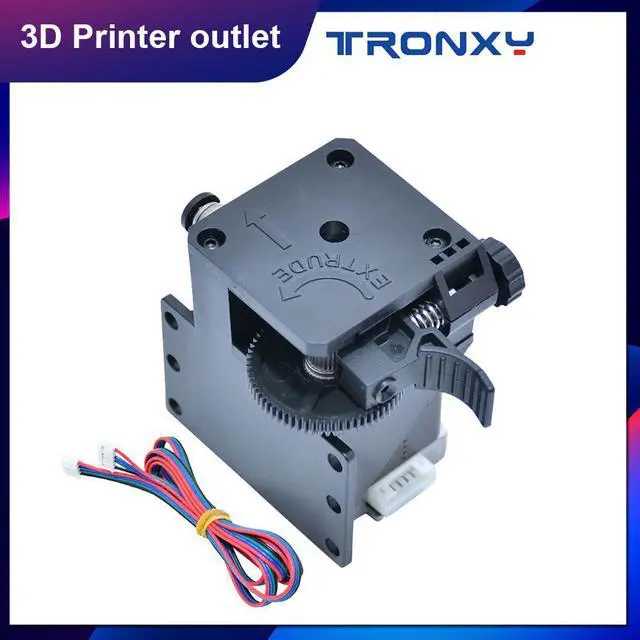

Tronxy 3D Upgrade Parts Assembled Extruder Kit with Stepper Motor and Wire for X5SAPRO/X5SA-400/D01/X5SA-400PRO/X5SA-500

Origin:CN(Origin)
Item Type:Extruder
Model Number:Extruder

Features:
Assembled Upgrading Extruder Kit, compatible with X5SAPRO/X5SA-400/D01/X5SA-400PRO/X5SA-500 3D printer.
Suitable for soft filament, such as TPU, PETG and so on, the filament path is short and constrained to avoid bending and clogging.
Comes with 42 stepper motor, using a 3: 1 gear ratio allows the use of smaller motors and provides a lightweight carriage while maintaining reliability and power.
This extruder kit is made of stainless steel and plastic, durable and wear resistant.
Suitable for 1.75 filament, support remote and short range use at the same time.
Specifications:
Extruder--
Material: ABS
Driving Gear Diameter: 12mm
Driven Gear Diameter: 34mm
Transmission Ratio: 3:1
Stepper Motor--
Motor Type: 42 Stepper Motor
Number of Phase: 4 Phase
Step Angle: 1.8°
Rate Voltage: 2.8V
Holding Torque: 1.68A
Phase Resistance: 1.5
Phase Inductance: 2.8mH
Rotor Inertia: 54g/cm2
Filament Diameter: 1.75mm
Wire Length: 1.5m/ 4.9ft

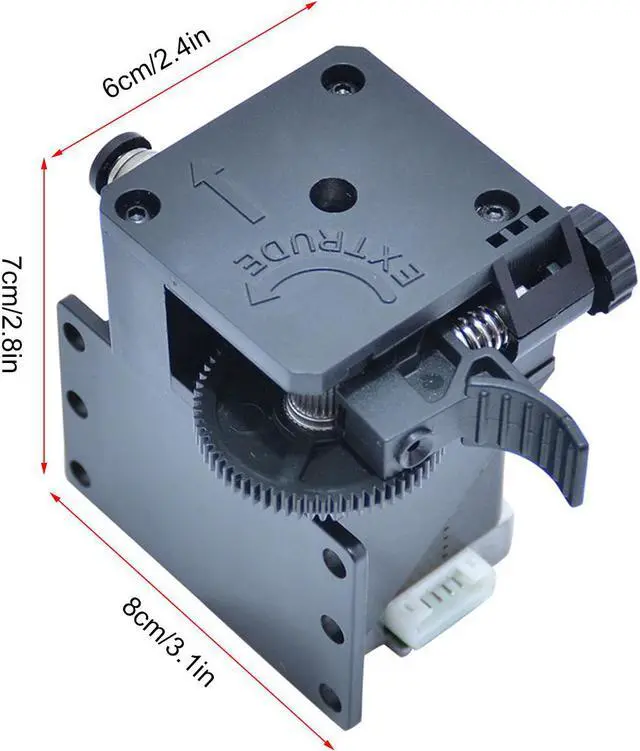

Item Size: 8 * 6 * 7cm/ 3.1 * 2.4 * 2.8in
Item Weight: 370.6/ 13.1oz
Package Size: 12 * 8 * 6.5cm/ 4.7 * 3.1 * 2.6in
Package Weight: 396g/ 14.0oz
Packing List:
1 * Extruder Kit
1 * Wire(1.5m)
