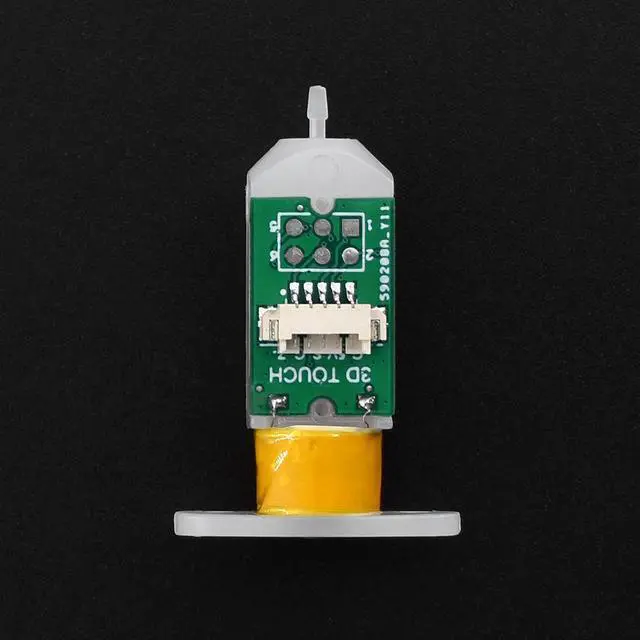

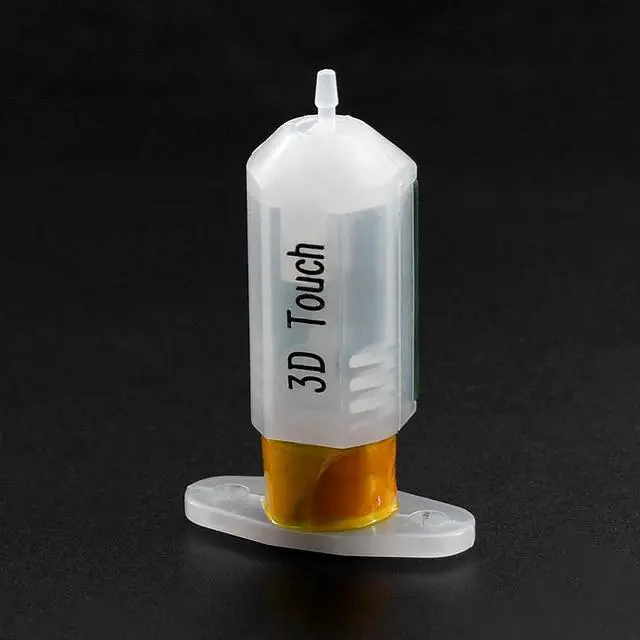

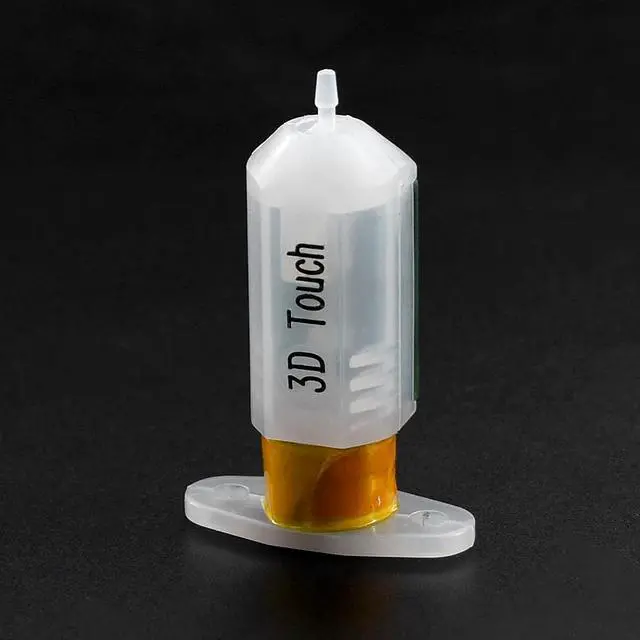

Touch-Sensor Auto Bed Leveling Sensor Automatic Hot Bed Leveling Sensor for Creality Ender 3/Ender 3 Pro/CR-10/CR-10S
- Touch-Sensor Auto Bed Leveling Sensor Automatic Hot Bed Leveling Sensor for Creality Ender 3/Ender 3 Pro/CR-10/CR-10S
+
+
Overview
Specs
Reviews
Origin:CN(Origin)
Item Type:Auto Self-Leveling Sensor
Model Number:Auto Leveling Sensor
Features:
The auto leveling sensor is a device that uses the Hall effect to achieve leveling.
Intelligent leveling, intelligent compensation z-axis height, making machine leveling printing easier.
Accurate measurement, small error and high leveling accuracy.
Printing can also be achieved even though the platform is not flat.
Specifications:
Shell Material: PC
Voltage: 5V
Current: 15mA
Max. Current(Peak): 300mA
Cable Length: Short:200mm Long: 1000mm
Wire: 3pin: Green: -,GND; Red: +5V; Orange: Signal Cable
2pin: Black: -,GND; White: Zmin

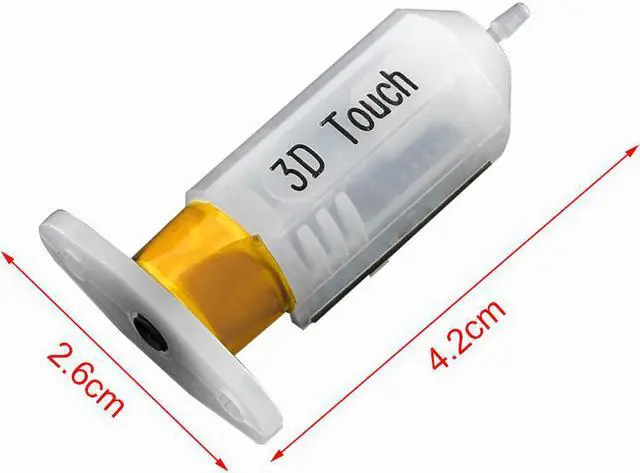

Package Size: 15.0 * 9.9 * 1.7cm / 5.9 * 3.9 * 0.7in
Package Weight: 23g / 0.8oz

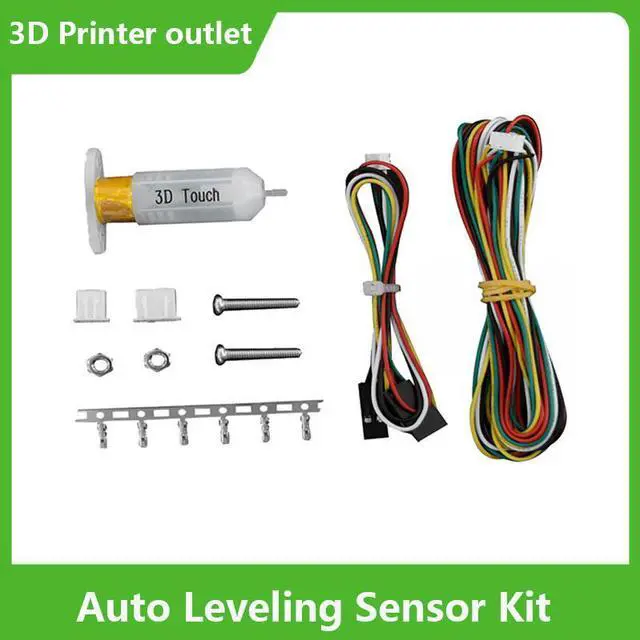

Packing List:
1 * Auto Leveling Sensor Kit
Item Type:Auto Self-Leveling Sensor
Model Number:Auto Leveling Sensor
Features:
The auto leveling sensor is a device that uses the Hall effect to achieve leveling.
Intelligent leveling, intelligent compensation z-axis height, making machine leveling printing easier.
Accurate measurement, small error and high leveling accuracy.
Printing can also be achieved even though the platform is not flat.
Specifications:
Shell Material: PC
Voltage: 5V
Current: 15mA
Max. Current(Peak): 300mA
Cable Length: Short:200mm Long: 1000mm
Wire: 3pin: Green: -,GND; Red: +5V; Orange: Signal Cable
2pin: Black: -,GND; White: Zmin
Package Size: 15.0 * 9.9 * 1.7cm / 5.9 * 3.9 * 0.7in
Package Weight: 23g / 0.8oz
Packing List:
1 * Auto Leveling Sensor Kit
